2.4G Touch Sensor Wireless Switch- Wide Voltage for Access Control/Auto Door

This 2.4G touch sensor wireless switch is specially designed for automatic doors, windows and various access control scenarios, adopting 2.4-2.5GHz high frequency band design with strong anti-interference capability and stable signal without code loss. The transmitter is battery-powered with no wiring required, and the receiver is compatible with AC/DC12-30V wide voltage, featuring easy installation without complicated cabling. It supports free switching between momentary/latching dual output modes, a single receiver can pair up to 20 transmitters, and the wireless transmission distance reaches 50 meters in open areas. The transmitter has low power consumption and long battery life (300 days with 500 uses per day), with two transmitter options: slim version and 86mm square version. The relay contact output is suitable for various door control and access control needs, working stably at -20℃~45℃ wide temperature range, and widely applicable to wireless control scenarios such as automatic doors, smart homes and access control systems.

Products
Technical Data
Downloads

Product description

1. 2.4G high frequency technology, strong anti-interference, stable signal no code loss

2. 50M long-range wireless, smooth transmission in open areas, remote door control

3. Dual output modes, one-click switch momentary/latching, fit auto door/access control needs

4. 1 receiver pairs 20 transmitters, multi-device control, high scene adaptability

5. Battery-powered no wiring, transmitter with CR2032 batteries, super easy installation

6. Ultra-long battery life, 300 days of use with 500 presses per day, no battery replacement

7. 2 transmitter options, slim/86mm square, fit different mounting positions

8. Wide voltage support, AC/DC12-30V, compatible with all door/access control power supplies

9. One-click pairing & code clear, simple operation, efficient transmitter add/delete

10. -20℃~45℃ wide temperature operation, high/low temperature resistant, for indoor/outdoor use

11. 1A 24VDC relay output, suitable for all auto door/access control requirements

Authentication

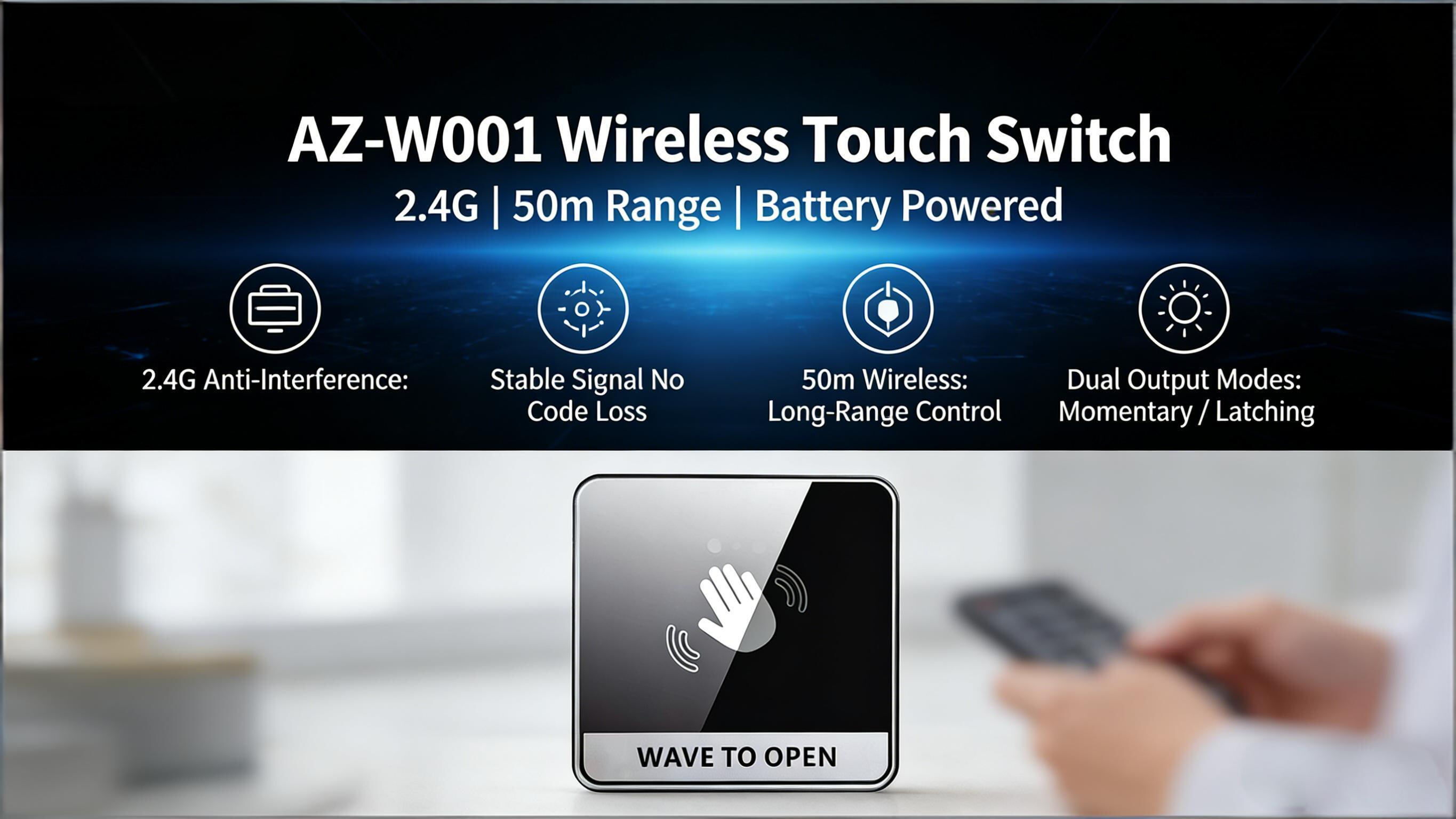

360° full view of this 2.4G touch sensor wireless switch is here!

The video shows all core details of the product in all aspects: the appearance, size, touch sensor area and mounting holes of the two transmitter versions (slim and 86mm square); the receiver's wiring terminals, pairing button, mode switch dip, status indicator light; it also presents supporting accessories such as batteries and fixing screws, as well as the product's thin and light body design with clear mounting layout!Equipped with 2.4G anti-interference technology, this switch features 50M long-range wireless transmission, one receiver can pair 20 transmitters, momentary/latching dual modes, battery-powered transmitter with no wiring required, 300 days of battery life with 500 presses per day, wide voltage compatible with all auto doors/access control systems, and two transmitter options to choose from. Install it on automatic doors of offices, shops and residential communities to easily realize wireless intelligent door control!

Technical data

Working Frequency:	2.4-2.5GHZ
Battery type:	2pcs CR2032 batteries
Battery life time:	500times/day, can use 300days
Wireless distance:	50 meters in empty area
Working temperature:	-20℃-45℃
operating humidity:	10-90%RH
Size:	150 (L) x38 (W) x11mm (H) (Slim version) 86(L)X 86mm(W) (Square version)
Power input:	AC/DC 12-30V Standby current:15mA
Relay contact capacity:	1A 24VDC
Size:	145mm (L)x30mm(W)x20mm(H)
Code capacity:	up to 20pcs transmitters
