B04 All-Weather Full Cassette Awning - Rust-Proof, Wind-Resistant & Aesthetic Design

The B04 Full Cassette Awning features a cassette design that provides comprehensive protection for the product structure and fabrics. Equipped with a motor, it enables convenient and aesthetic outdoor shading. The main frame is made of high-strength 6063-T5 aluminum alloy with powder coating, while key connection parts adopt 304 stainless steel chains and high-strength aluminum alloy connectors, and the wall brackets are constructed from high-strength steel. Two high-quality fabric options are available: 280g/m² Chinese polyester fabric and 290g/m² imported Recasens solution-dyed acrylic fabric from Spain, both with sunshade and waterproof core functions. The product supports two installation methods: wall-mounted and ceiling-mounted, with a maximum extension length of 3.5 meters and a single-arm load-bearing capacity of 200KG. The surface can be coated in white or dark grey, combining practicality and decorativeness, suitable for various outdoor environments.

Products
Technical Data
Downloads

Product description

Superior Protection Design：The cassette structure provides full protection for the awning's structure and fabrics, extending the product's service life; the front tube is equipped with a hidden drainage system, which is both aesthetic and practical.

High-Strength and Durable Materials：The main frame is made of 6063-T5 aluminum alloy with powder coating, which is not easy to rust; connectors and arm tubes are made of high-strength aluminum alloy, and 304 stainless steel chains are corrosion-resistant and friction-resistant, ensuring a longer service life; wall brackets are made of high-strength steel, with strong bearing capacity and no damage.

Stable and Practical Performance：The arm tube profiles are thick and sturdy, with a single-arm load-bearing capacity of 200KG and a maximum extension length of 3.5 meters, ensuring strong stability; the reinforced thickness of the arm fingers provides better force support and avoids friction between the arm tube and the front tube.

Convenient Installation Methods：Supports two installation modes: wall-mounted and ceiling-mounted, adapting to different installation scenarios with flexible and convenient installation.

Aesthetic Decorative Effect：The product surface can be coated in white or dark grey, with a simple and elegant appearance, combining practicality and decorativeness, and can integrate into various outdoor environment styles.

Authentication

B04 Full Cassette Awning - Smooth Motorized Opening & Premium Design

One-button start, instant comfort! This video captures the entire process of the B04 full-box awning slowly opening, its smooth, seamless operation showcasing the superior motor and robust construction. The product features a rust-resistant powder coating and a concealed drainage system, maximizing both aesthetics and practicality. Whether for afternoon relaxation, outdoor dining, or commercial outdoor seating, it quickly provides comfortable shade, boasts strong weather resistance, and elevates the quality of outdoor living.

Technical data

Category	Item	Detailed Specifications
Main Frame	Frame Material	High-Strength 6063-T5 Aluminum Alloy, Powder Coated Surface
	Frame Color	White, Dark Grey
	Wall Bracket Material	High-Strength Steel, Strong Bearing Capacity, Non-Damaged
Fabric Options	Option 1	Chinese Polyester Fabric- Weight: 280g/m²- Core Functions: Sunshade, Waterproof
Fabric Options	Option 2	Spanish Recasens 100% Solution Dyed Acrylic Fabric- Weight: 290g/m²±5%- Width: 220/250cm (86"/98"), As per design (Customizable)- Core Functions: Sunshade, Waterproof, 80+ UV-Resistant- Color Fastness: More Than 5 Years Guarantee Against Fading- Additional Features: Anti-Corrosion, Stretch Resistance, Tear Resistance, Oil Repellency ≥5- Water Column: >300mm (ISO 811/81)- Tear Strength Warp: 3 daN±10%

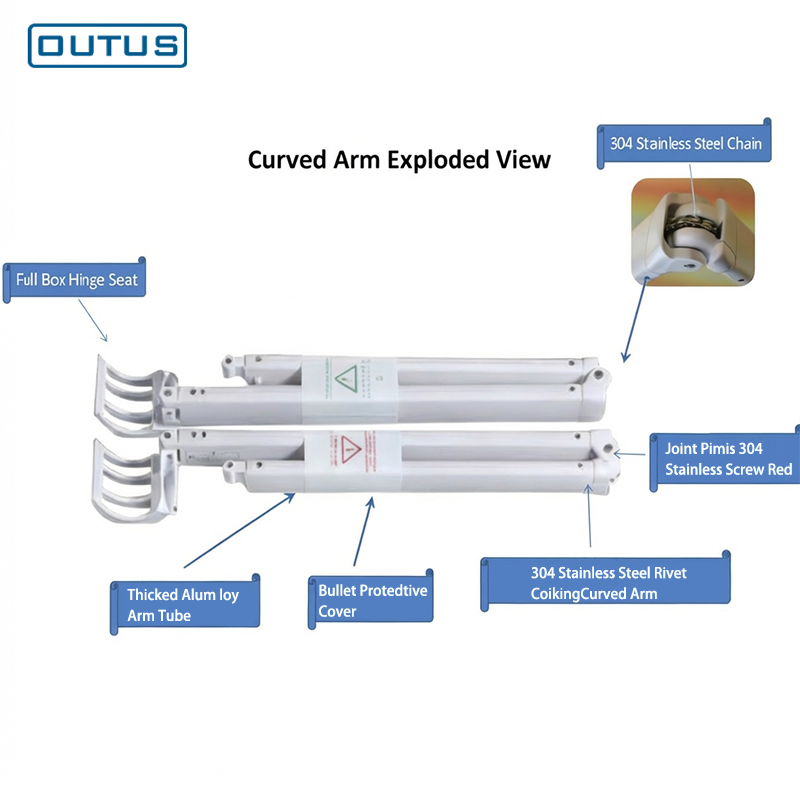

Retractable Arm & Connectors	Arm Tube Material	High-Strength Aluminum Alloy + 304 Stainless Steel Chain
	Arm Profile Size	Small Profile: 5826mm, Thickness: 1.7-3.0mmBig Profile: 6531mm, Thickness: 1.7-3.0mm
	Connector Material	High-Strength Aluminum Alloy, Wind-Resistant, Aesthetic, Durable
	Arm Finger Design	Strengthened Thickness for Better Force Support, Avoids Friction Between Arm Tube and Front Tube
Core Performance	Max Load Capacity	200KG
	Max Extension Length	3.5M
	Special Design	Front Tube with Hidden Drainage System, Aesthetic and Practical
Installation Methods	Supported Types	Wall Mounted, Ceiling Mounted

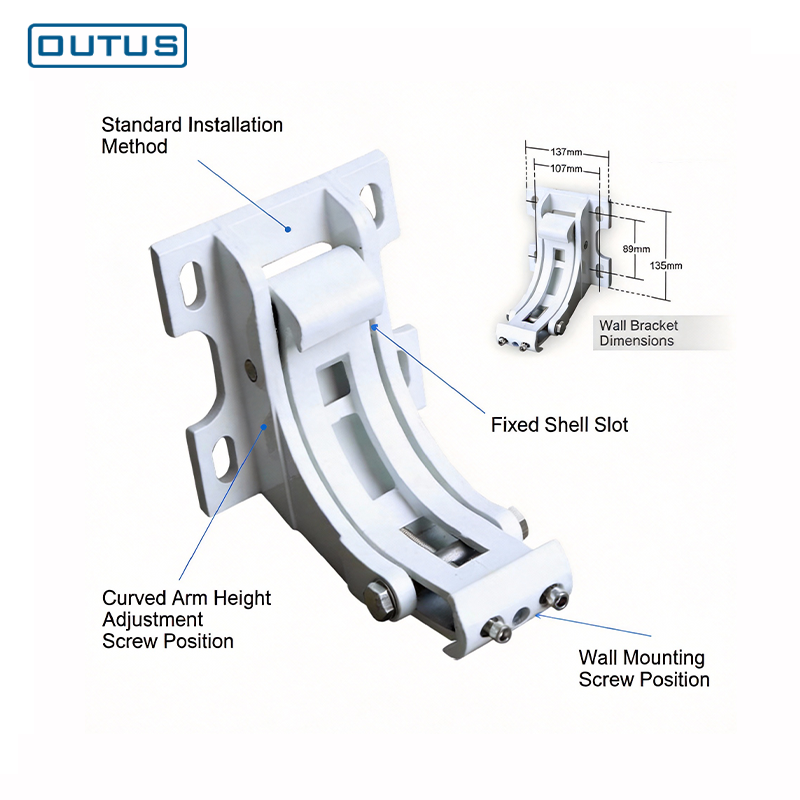

Installation Methods	Wall Bracket Dimensions	137mm×107mm×89mm×135mm (Screw Hole Center Distance Adapts to the Width and Height of the Bracket Installation)
