Innovation in Motion
Ultra-PowerfulFail-Safe
Eco-EfficientDesigned for medium to large passages in shopping malls, hotels, hospitals, and office buildings, this mid-to-high-end commercial automatic sliding door system features microcomputer intelligent control and integrated European drive technology, offering smooth and quiet operation, high load capacity, safety, and intelligent management.
Built-in microcomputer controller supports dual-door interlock, obstruction rebound, self-test, remote control, and more, ensuring intelligent, safe, and responsive operation.
European motor and reducer integrated design provides stable operation, low noise, and high torque output, suitable for high-frequency usage.
Professional deceleration mute wheels and high-quality hanger system significantly reduce operating noise, enhancing comfort and professionalism.
Maximum single door load up to 270kg+, compatible with various door sizes and materials, adaptable to different architectural and decorative styles.
Program customization available, with optional Bluetooth, digital display, timed operation, multi-mode control, and other smart features for personalized scenarios.
Modular design with ample installation adjustment space, strong parts compatibility, easy maintenance, and reduced lifecycle cost.
Strong load-bearing capacity, polished treatment, and silent operation.
With powerful computing capabilities, it can quickly process various instructions and precisely control the efficient and stable operation of the unit.
It adopts a sound-absorbing and sealed design, featuring high torque, high-speed rotation, reliability and durability.
| Comparison project | OREDY 150 series automatic sliding door | Market common sliding door |
| Core technology | Microprocessor control + brushless motor | Relay control + brush motor |
| Maximum door weight | Single fan 150 kg/double fan 2x120 kg
|
Single fan ≤ 80kg/double fan ≤ 2x80 kg |
| Operating speed | 150-460mm/s adjustable (fast and slow double speed + buffer)
|
Usually fixed speed, no buffering or limited adjustment |
| Open width range | Single fan 750-1600mm/double fan 2500-5000mm
|
Narrow range and poor adaptability |
| Drive system | DC 24V brushless motor (60-70 W), long life, low noise
|
AC 220V brush motor, noisy, easy to wear |
| Intelligent control | Built-in automatic travel learning, support double door interlock, access control, electric lock, spare battery | Basic switch function, weak expansibility |
| Installation friendliness | Modular design, guide rail slotted installation, manual push and pull < 40-50N
|
Complicated installation and difficult debugging |
| Environmental adaptability | Working temperature -20 ℃ ~ 50 ℃
|
Usually 0 ℃ ~ 40 ℃ |

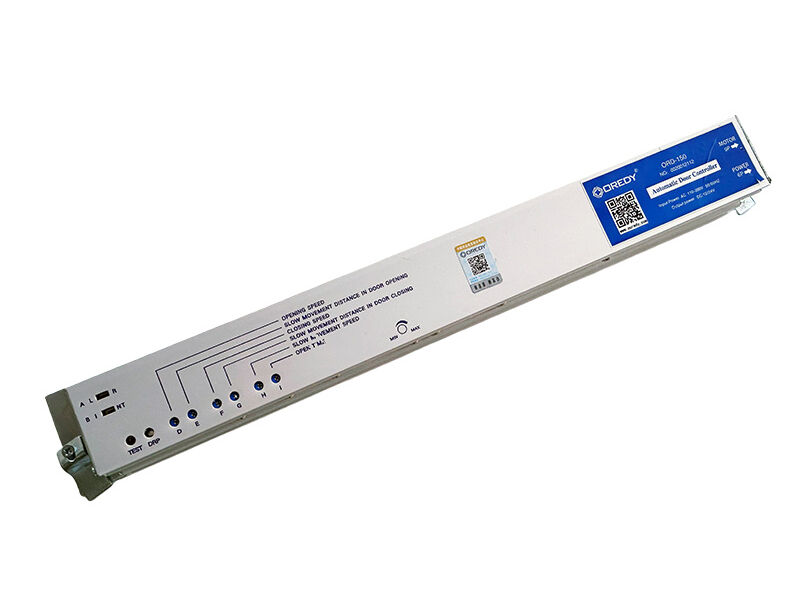

Description: After the system is powered on, the first run automatically completes the journey learning, and the built-in microprocessor remembers the optimal running trajectory. It features dual speed control, buffering and deceleration, as well as precise stop functions. The opening and closing speed, buffering distance and dwell time can be precisely adjusted through the knob, providing a silky smooth opening and closing experience and completely bidding farewell to collisions and noise.
Technical support: Microprocessor control technology; Automatic itinerary learning function; The multiple parameters D (door opening speed), F (door closing speed), H (buffer speed), E/G (buffer distance), and I (dwell time) are independently adjustable.

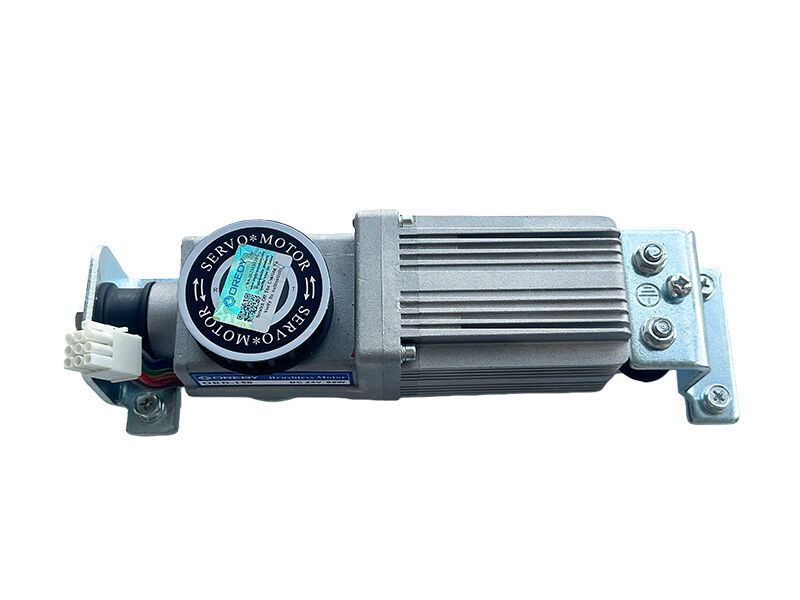

Description: Equipped with a DC 24V brushless motor and high-strength synchronous belt drive, the maximum load capacity of a single door can reach 150kg. Brushless motors have no carbon brush wear, have a much longer lifespan than traditional brushed motors, and operate with low noise. The integration of functions such as double-door interlocking, electric lock interface, and backup battery support meets the high-intensity and high-security usage requirements of commercial places.
Technical support: DC 24V 60-70W brushless motor; The maximum load for a single fan is 150kg. Supports double-door interlock, electric lock and 24V backup battery interface.
Excellence
Engineering peace of mind for high-value projects. Every system undergoes a mandatory 48-hour endurance cycle and laser-aligned motor calibration before leaving our facility.
Tested under extreme load conditions to ensure peak performance in any architectural context.
220V AC / 110V AC | 24V DC
350W - 1200W
Up to 2500kg (Industrial Range)
Brushless DC / Heavy Duty AC Oil-Bath
IP55 Professional
-35°C ~ +70°C
From sterile medical environments to high-traffic commercial hubs, our systems meet the specific demands of every industry.
Global Projects
Hermetic sliding doors designed for clean rooms and operating theaters.
Explore Details
High-traffic curved glass doors for seamless visitor flow.
Explore Details
Fast-acting roll-up doors for optimized supply chain efficiency.
Explore Details
integrated gate systems combining biometric security with silent movement.
Explore Details
This video provides a detailed demonstration of the standard installation procedure for the ORD-150 series automatic door. Guiding you step-by-step from track positioning and drive unit mounting to electrical wiring and parameter adjustment, it is designed to help technicians quickly master the key installation points for ensuring smooth and precise door operation.
This video showcases the practical application of an automatic sliding door in a modern office building lobby. It demonstrates efficient traffic flow, reliable durability, and a sleek, professional design that effectively manages foot traffic while enhancing the technological appeal and image of the building entrance, making it an ideal choice for commercial spaces.
"Quality is never an accident; it is always the result of high intention and sincere effort."
No. DL-240822009RR
This report confirms that the automatic door operators from Suzhou Oredy Intelligent Door Control Co., Ltd. comply with EU RoHS Directive (EU) 2015/863. All tested restricted substances are within the permissible limits.
SIT210611580201E
This certificate confirms that the automatic door units from Suzhou Oredy Intelligent Door Control Co., Ltd. comply with EU EMC Directive 2014/30/EU. The product range has been successfully tested against applicable standards, authorizing the use of the CE marking.
SIT240520580201S
This certificate confirms the compliance of the OREDY Maglev automatic door systems with the EU Low Voltage Directive 2014/35/EU. The tested models meet the essential safety requirements of the relevant standard EN 60335-1, authorizing the use of the CE marking.
No. DL-240822009RC
This certificate confirms that the OREDY automatic door operators comply with EU RoHS Directive (EU) 2015/863, based on testing against IEC 62321 series standards.
Find quick answers regarding procurement, technical support, and logistics.
The maximum weight for a single fan is 150kg, and for double fans, the maximum weight for each fan is 120kg.
It adopts a brushless motor, which operates with low noise, smoothly and quietly.
Supports manual pushing, with a pushing force of less than 50N, making operation easy.
Supports multiple control methods such as induction, access control, remote control, and interlock.
Access everything needed for project planning, installation, and maintenance in our document library.
Contact our team for .DWG & .BIM
The OUTUS 2024 product catalog presents a complete and professional range of automatic door system solutions, including eight major series: sliding doors, overlapping doors, arc doors, swing doors, electric floor springs, electric bus (plug) doors, medical doors, and profile doors.
