Innovation in Motion
Ultra-PowerfulFail-Safe

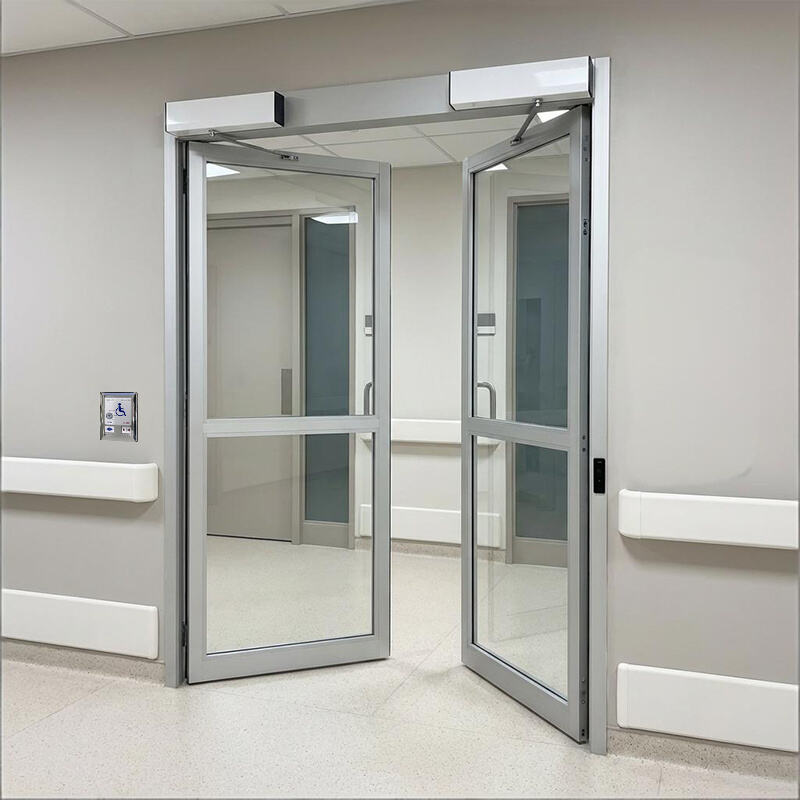

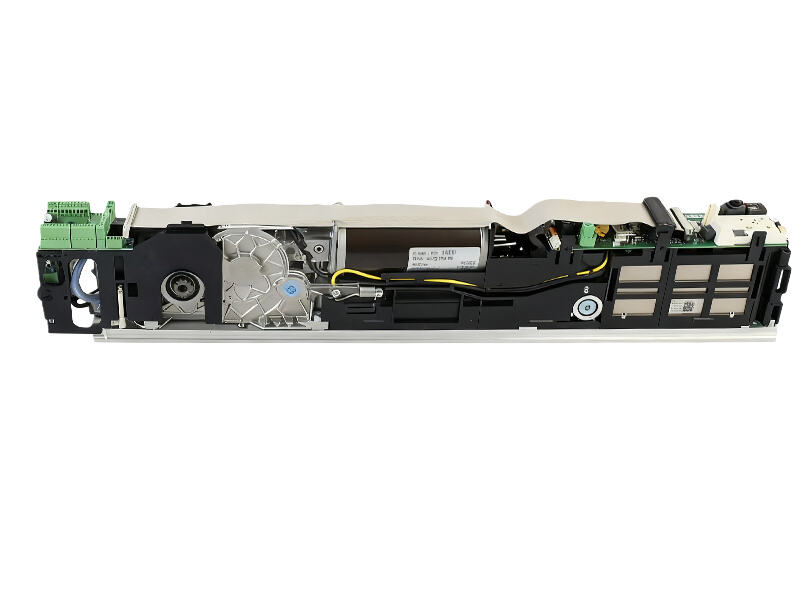

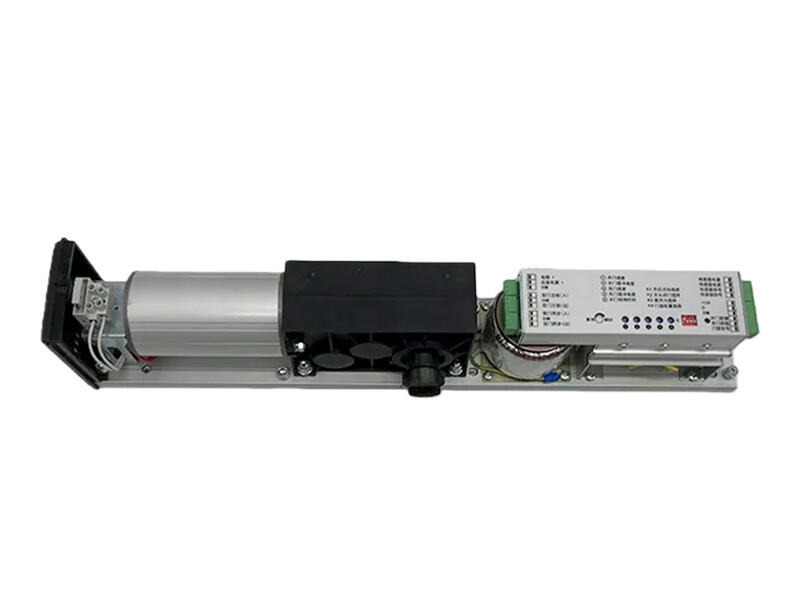

Eco-EfficientThe 90° Automatic Swing Door Operator is a high-performance, intelligent side-hung automatic door drive system suitable for in-swing or out-swing doors. Featuring adjustable opening speed, anti-collision protection, multiple control modes, and dual-door synchronization, it offers flexible installation and is ideal for commercial, office, and public building entrances.
Supports both push arm and draw arm installation methods, compatible with in-swing or out-swing doors, and suitable for various door materials including wood and metal.
Adjustable parameters include opening speed, slow-down distance, hold time, and starting force, catering to different scenarios and user preferences.
Equipped with anti-collision signal input, resistance sensitivity adjustment, and emergency manual operation to ensure safe operation and prevent pinching or impact.
Compatible with sensors, access control systems, remote controls, dual-door synchronization, and interlock functions, easily integrated into smart building systems.
Compact size (515×95×90mm), lightweight (6.5kg), and modular design for easy installation, debugging, and maintenance.
It supports both automatic and door closing modes, and features functions such as rebound upon obstruction, silent slow opening, and wind pressure adaptive control. It is compatible with multiple sensors and remote control methods, making it suitable for commercial, public, and barrier-free passage scenarios.
After installing the lithium battery, the rear door can remain open when power is cut off for fire control.

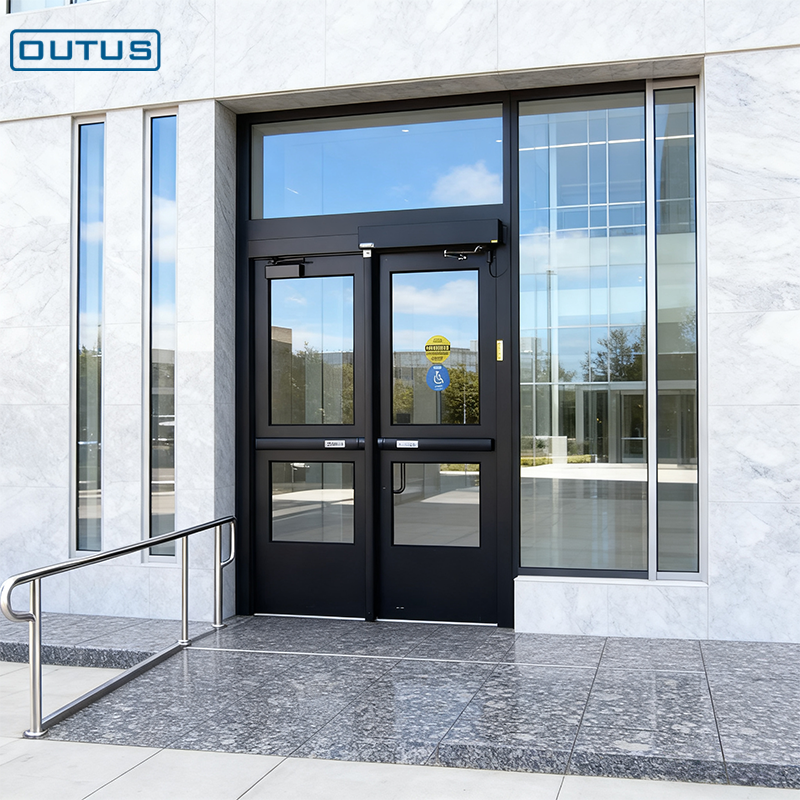

It is suitable for heavy-duty swing door systems, featuring high load-bearing capacity and durability. It supports multiple installation methods and intelligent control accessories, and is applicable to commercial entrances, public buildings and other places.
| Comparison project | OREDY 90-degree automatic door opener | Common flat door opener in the market |
| Core technology | Microcomputer control + multifunctional DIP dialing | Base relay control |
| Applicable door type | Double mode of internal opening (pull arm)/external opening (push arm) | Usually only a single opening direction is supported |
| Opening and closing time | 3-7 seconds/90 ° (adjustable), open door holding time 1-30 seconds adjustable
|
Fixed speed or narrow adjustment range |
| Environmental adaptability | Operating temperature -20 ℃ ~ + 55 ℃, protection grade IP12D
|
Usually 0 ℃ ~ + 40 ℃, with low protection grade |
| Safety protection | Anti-collision signal input, resistance sensitivity (01/02 gear), electronic lock function
|
Only basic anti-pinch, or no active protection |
| Intelligent control | Support remote control, access control, sensor, double door synchronization/interlock, battery backup | The control mode is single and the expansibility is poor |
| Parameter adjustment | 10 parameters can be adjusted independently (starting force, speed, slow driving distance, braking force, etc.)
|
Few adjustment parameters or professional tools required |
| Installation friendliness | Modular design, small size (515x95x90mm), light weight (6.5kg)
|
Complex structure, large volume and heavy weight |
| User configuration | Remote control code learning (supporting 128), DIP dialing function switching | The configuration is complex and requires professional personnel |
Description: This system supports both inward-opening (pull arm) and outward-opening (push arm) installation modes simultaneously, adapting to the vast majority of door structures. It features a wide operating temperature range of -20℃ to +55℃ and an IP12D protection rating, ensuring stable and reliable operation in harsh outdoor or semi-outdoor environments with extreme cold, heat, dust and humidity.
Technical support: Two types of installation kits, pull arm and push arm, are provided. Operating temperature range: -20℃ to +55℃. Protection grade IP12D.

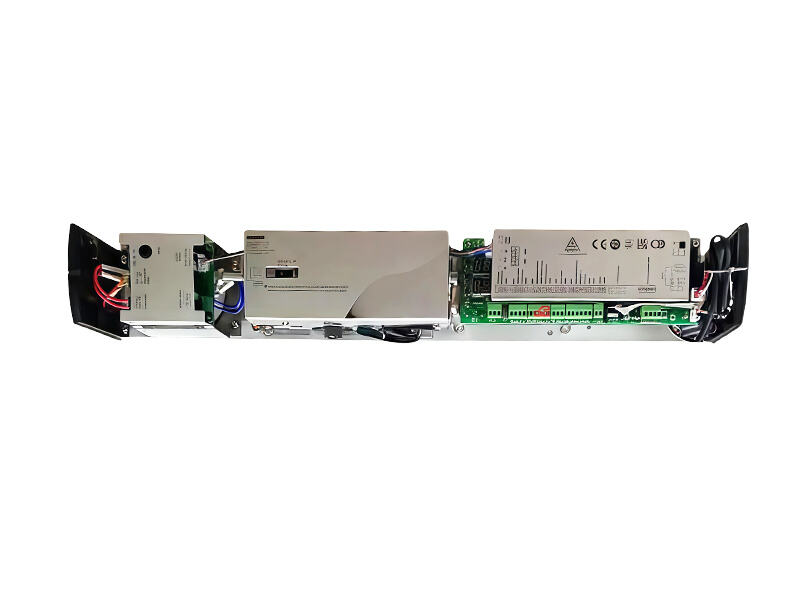

Description: The built-in microcomputer controller offers independent adjustment of up to 10 operating parameters, including starting force, door opening and closing speed, slow travel distance, braking force, and resistance sensitivity, enabling precise customization of the door body's operating posture. It integrates anti-collision signal input, dual-door interlocking, electronic lock interface and backup battery support, and builds a multiple safety protection system that combines active and passive features.
Technical support: The parameter table contains 10 adjustable parameters (0-A); The controller supports anti-collision signals, access control, interlocks, electronic locks, and backup battery interfaces.
Description: The system natively supports remote control, sensors, access control systems (card swiping/password, etc.) and dual-door synchronous control, easily integrating into intelligent building management. The remote control supports code learning and can manage up to 128 units. It also features quick switching between single and multi-key modes, automatic door closing, pedestrian mode and other functions through DIP DIP switches, which greatly facilitates installation, debugging and later user permission management.
Technical support: The wiring diagram shows support for sensors, access control, and dual-door synchronization/interlocking. The remote control can be learned, with a maximum of 128. The 4-position DIP switch enables the core function switching.

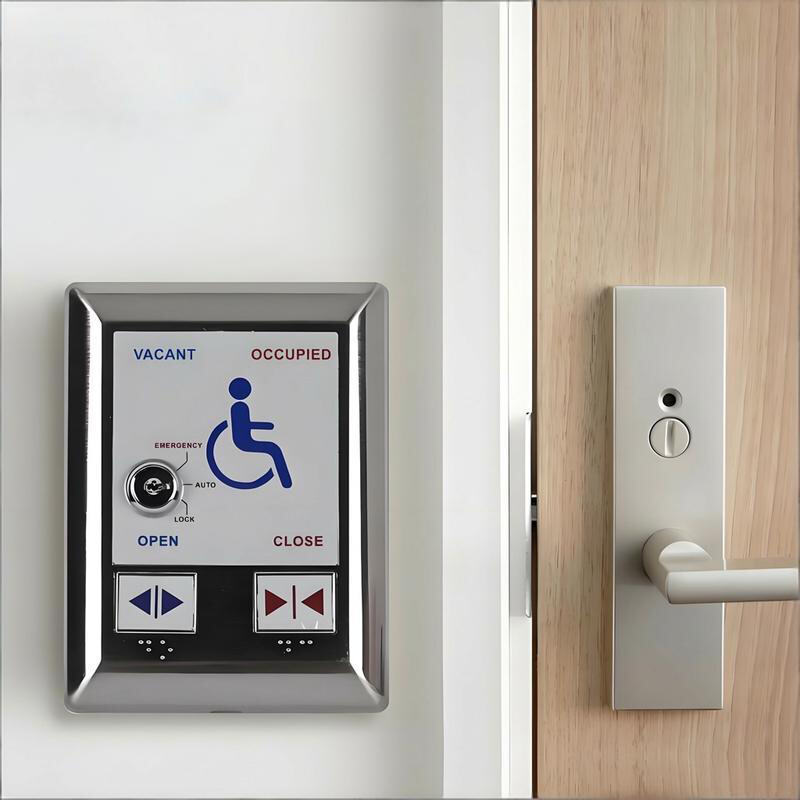

| Comparison project | M-209 Handicapped Accessible Switch | Common access control switch in the market |
| Core positioning | Pecial barrier-free passage intelligent control system | Universal Access/Switch Panel |
| Operational logic | Internal and external double-panel coordination, with complete status prompt | Single Panel Simple Trigger |
| Status indication | LED indicator (VACANT/OCCUPIED/LOCKED/UNLOCKED) + voice prompt
|
Usually there are only simple lights or no prompts. |
| Security logic | Occupation anti-opening by mistake, 30-minute time limit, emergency forced opening | Basic switch function, no advanced security policy |
| Voltage adaptation | Wide voltage AC/DC 12 ~ 36V
|
Usually fixed voltage (e.g. DC12V or AC220V) |
| Standby energy consumption | 52mA @ DC12V (low power)
|
Usually higher, not focused on standby power consumption |
| Function mode | Emergency/Auto/Lock 3-Position Physical Switch
|
Single function, no mode switching |
| Voice guidance | Full process voice prompt in Chinese and English (on/off/occupancy/reminder) | Usually there is no voice or only a prompt tone |
| Use management | 25 minutes of warning + 5 minutes of automatic unlocking or confirmation of continuation | No usage duration management |

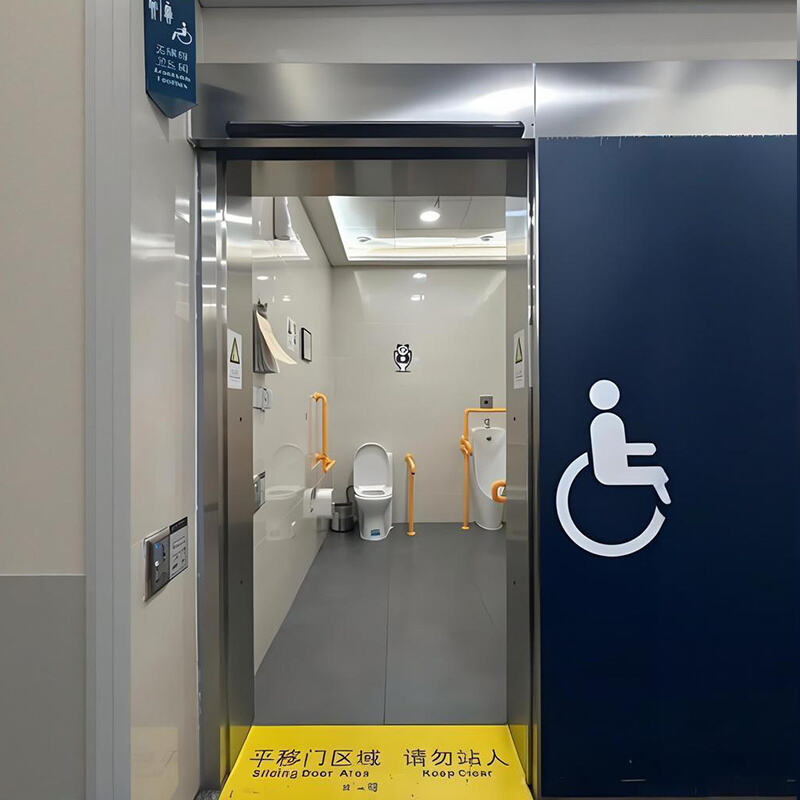

Description The system provides users (including people with disabilities and ordinary users) with intuitive guidance and clear status feedback throughout the entire process from waiting, operation to completion through independent LED indicator lights on the inner and outer panels (such as "VACANT/OCCUPIED" on the outside and "UNLOCK/LOCKED" on the inside) and clear voice prompts in both Chinese and English. It greatly reduces the possibility of misoperation and enhances the convenience and sense of dignity of use.
Technical support: Both the inner and outer panels are equipped with multiple LED indicator lights. Integrated voice speakers provide voice prompts at key nodes such as door opening, door closing, occupancy, and duration reminders.
Description: The system is not merely a simple switch but an intelligent management solution. It is equipped with a "occupancy anti-misoperation" logic (the door cannot be opened from the outside when there is someone inside), a 30-minute usage time limit (voice warning at 25 minutes), an emergency forced door opening function, and three physical switching modes: emergency, automatic, and lock. These strategies effectively ensure the security of private Spaces and prevent the abuse or long-term occupation of devices.
Technical support: The function indicates that the EMERGENCY/AUTO/LOCK three modes have been identified. The usage process elaborately explains the occupancy logic and the 30-minute time limit management.
Description: The controller supports a wide AC/DC voltage input range of 12 to 36V, which can flexibly adapt to various on-site power supply conditions, enhancing the system's compatibility and installation convenience. Meanwhile, the standby current is only 52mA (at DC12V), demonstrating an excellent low-power design. It is suitable for public places that require long-term standby, saving energy and reducing heat generation, thereby enhancing the long-term stability of the system.
Technical support: The technical parameters indicate the working voltage AC/DC 12 to 36V. Standby current: 52mA, operating current: 108mA (@DC12V).
Excellence
Engineering peace of mind for high-value projects. Every system undergoes a mandatory 48-hour endurance cycle and laser-aligned motor calibration before leaving our facility.
Tested under extreme load conditions to ensure peak performance in any architectural context.
220V AC / 110V AC | 24V DC
350W - 1200W
Up to 2500kg (Industrial Range)
Brushless DC / Heavy Duty AC Oil-Bath
IP55 Professional
-35°C ~ +70°C
From sterile medical environments to high-traffic commercial hubs, our systems meet the specific demands of every industry.
Global Projects
Hermetic sliding doors designed for clean rooms and operating theaters.
Explore Details
High-traffic curved glass doors for seamless visitor flow.
Explore Details
Fast-acting roll-up doors for optimized supply chain efficiency.
Explore Details
integrated gate systems combining biometric security with silent movement.
Explore Details
This video showcases the powerful performance and robust construction of the SW500 series heavy-duty automatic swing door. Its high-torque motor and reinforced drive system can effortlessly operate door leaves weighing up to 200kg with stable and quiet motion. Ideal for commercial and industrial sites requiring high-frequency, heavy-duty access, such as factory workshops, logistics passages, and large shopping malls.
This video presents the installation of an automatic swing door at the entrance of a bubble tea shop. Its fast and smooth 90-degree opening greatly facilitates customers entering and exiting while holding drinks, and effectively maintains indoor temperature and cleanliness. The stylish design further enhances the shop's modern appeal and brand image, making it an ideal choice for light commercial applications like beverage and retail stores.
"Quality is never an accident; it is always the result of high intention and sincere effort."
No. DL-240822009RR
This report confirms that the automatic door operators from Suzhou Oredy Intelligent Door Control Co., Ltd. comply with EU RoHS Directive (EU) 2015/863. All tested restricted substances are within the permissible limits.
SIT210611580201E
This certificate confirms that the automatic door units from Suzhou Oredy Intelligent Door Control Co., Ltd. comply with EU EMC Directive 2014/30/EU. The product range has been successfully tested against applicable standards, authorizing the use of the CE marking.
SIT240520580201S
This certificate confirms the compliance of the OREDY Maglev automatic door systems with the EU Low Voltage Directive 2014/35/EU. The tested models meet the essential safety requirements of the relevant standard EN 60335-1, authorizing the use of the CE marking.
No. DL-240822009RC
This certificate confirms that the OREDY automatic door operators comply with EU RoHS Directive (EU) 2015/863, based on testing against IEC 62321 series standards.
Find quick answers regarding procurement, technical support, and logistics.
Supports two installation methods: push arm (outward opening) and pull arm (inward opening).
Adjustable from 3 to 7 seconds at 90°, both the opening and closing speed and the holding time can be set.
Supports access control, sensors, remote control and dual-door synchronization.
Access everything needed for project planning, installation, and maintenance in our document library.
Contact our team for .DWG & .BIM
This manual provides detailed installation and configuration guidelines for automatic swing door operators, covering mechanical structure, electrical connections, and parameter settings. It is intended for professional installation and commissioning of 90-degree opening swing doors.
This manual provides detailed installation and configuration guidelines for automatic swing door operators, covering mechanical structure, electrical connections, and parameter settings. It is intended for professional installation and commissioning of 90-degree opening swing doors.
This manual provides detailed installation and configuration guidelines for automatic swing door operators, covering mechanical structure, electrical connections, and parameter settings. It is intended for professional installation and commissioning of 90-degree opening swing doors.
