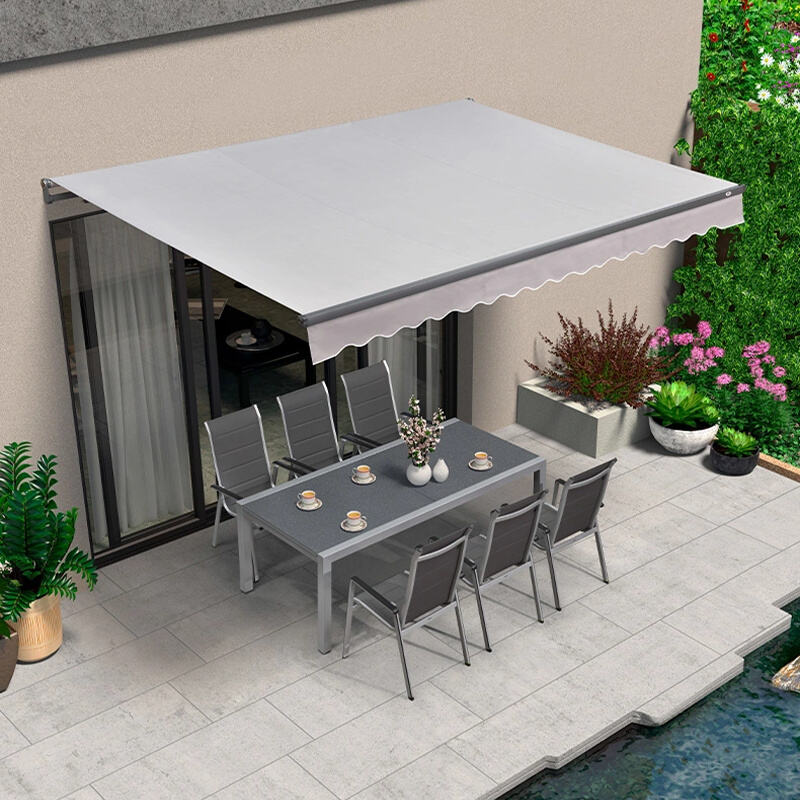

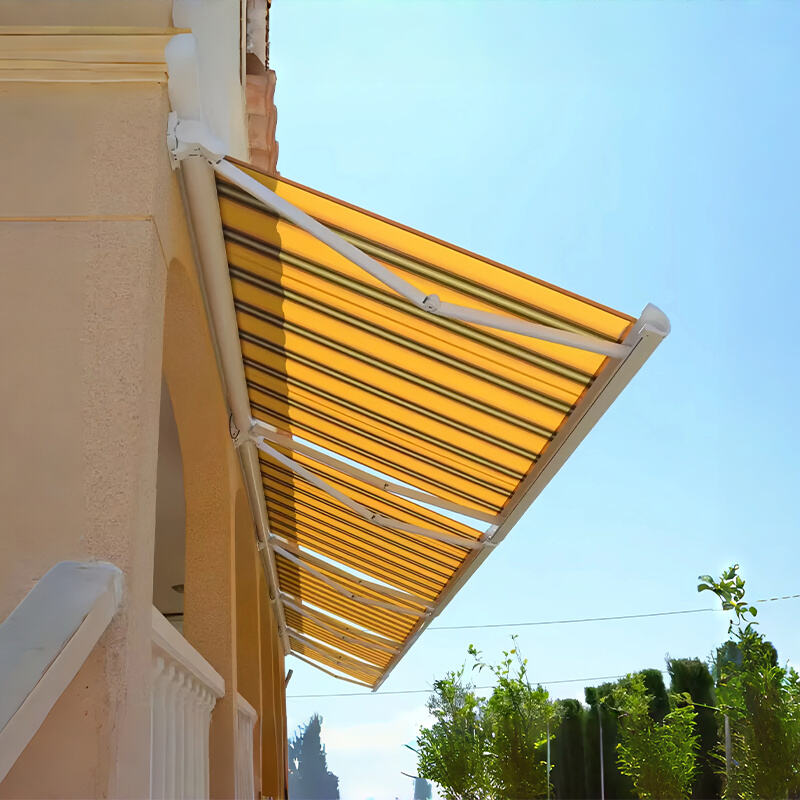

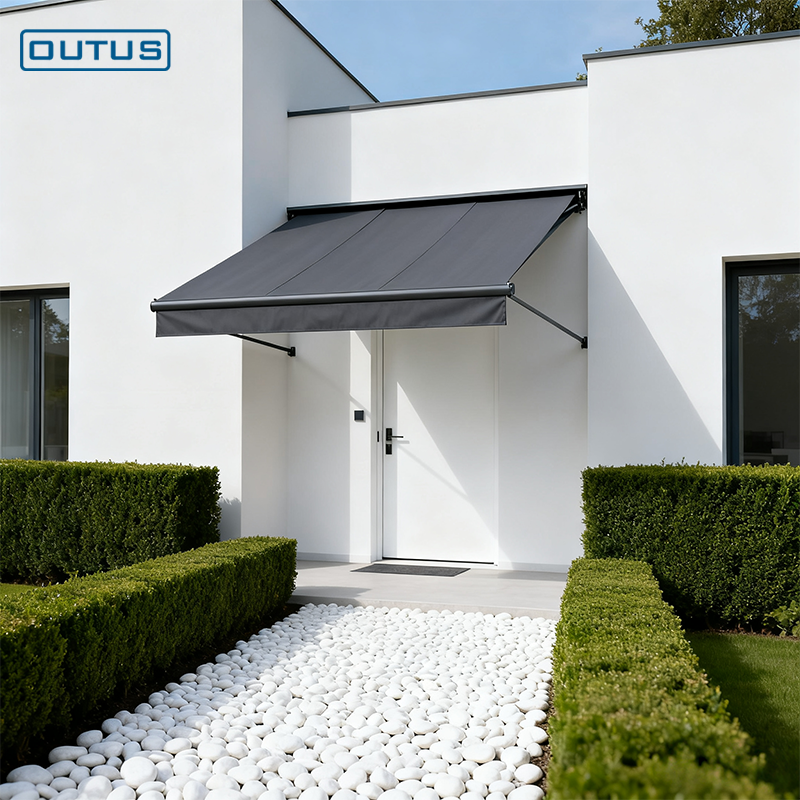

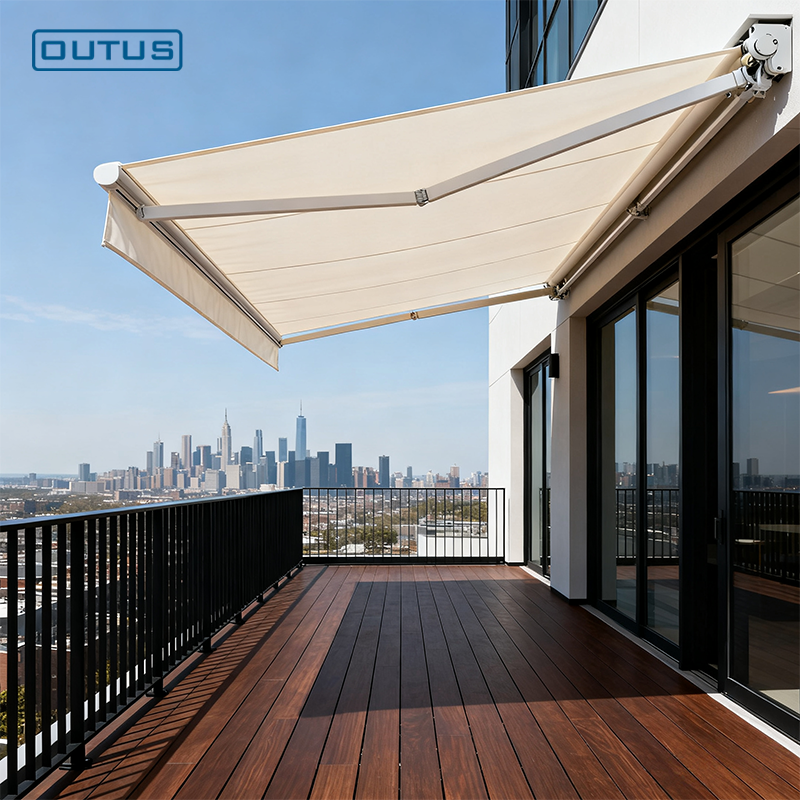

Eco-EfficientLUXDOOR Awnings offer two professional outdoor shading solutions: the B02 Heavy-Duty model and the B04 Full-Cassette model. Featuring high-strength aluminum frames and imported fabrics, they combine exceptional durability, wind and water resistance, and intelligent motorized operation, suitable for villas, hotels, restaurants, commercial spaces, and more.
When retracted, fully encloses fabric and arms, protecting against dust, rain, and UV exposure. Suitable for year-round use with easy maintenance.

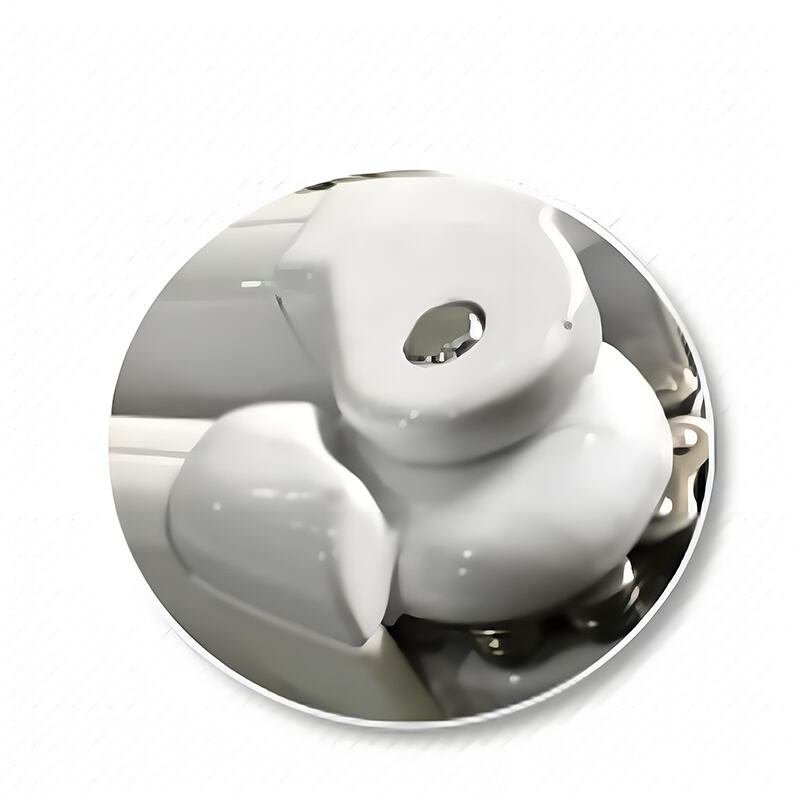

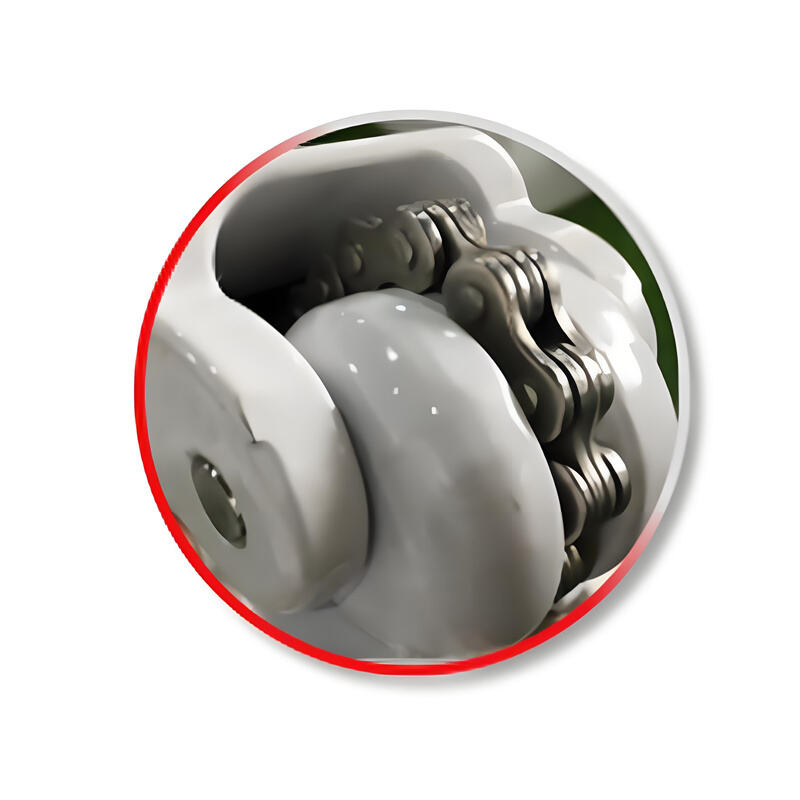

Constructed with 6063-T5 aluminum and 304 stainless steel chains, providing stable joints, wind resistance, and a load capacity of 200kg.
Optional Spanish Recasens acrylic or German Svela fabric, with 5–10 years color fastness, UV resistance, tear resistance, and self-cleaning properties.
Maximum width 28m, extension 5m, load capacity over 350kg, meeting shading needs for large outdoor areas.

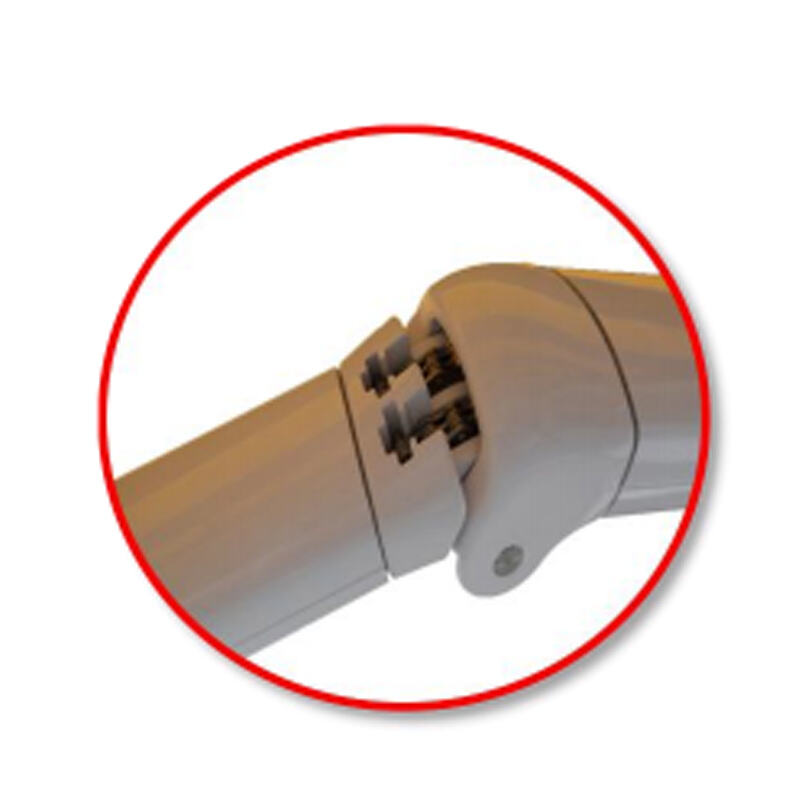

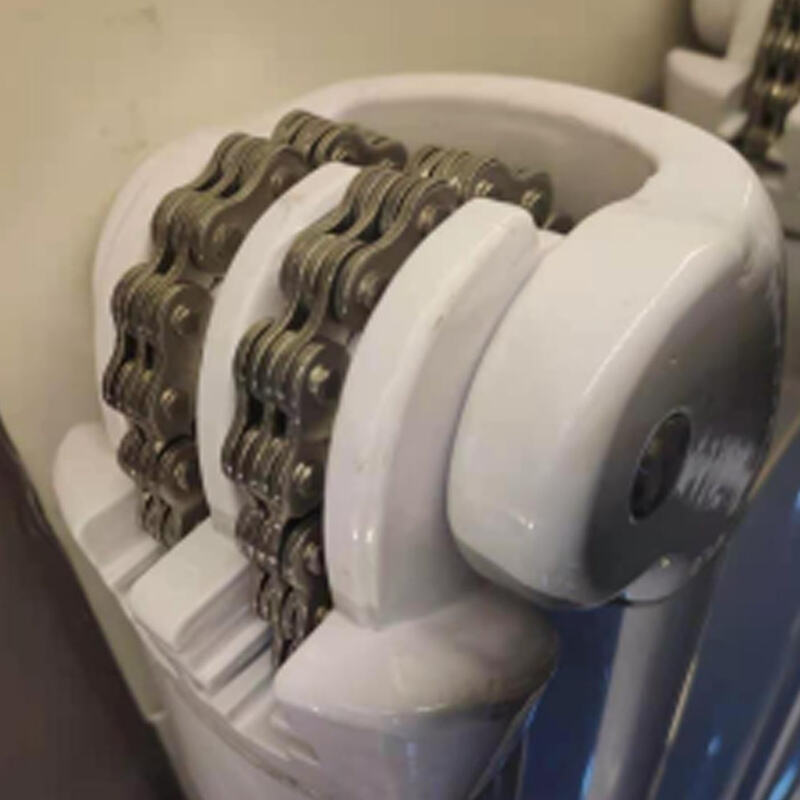

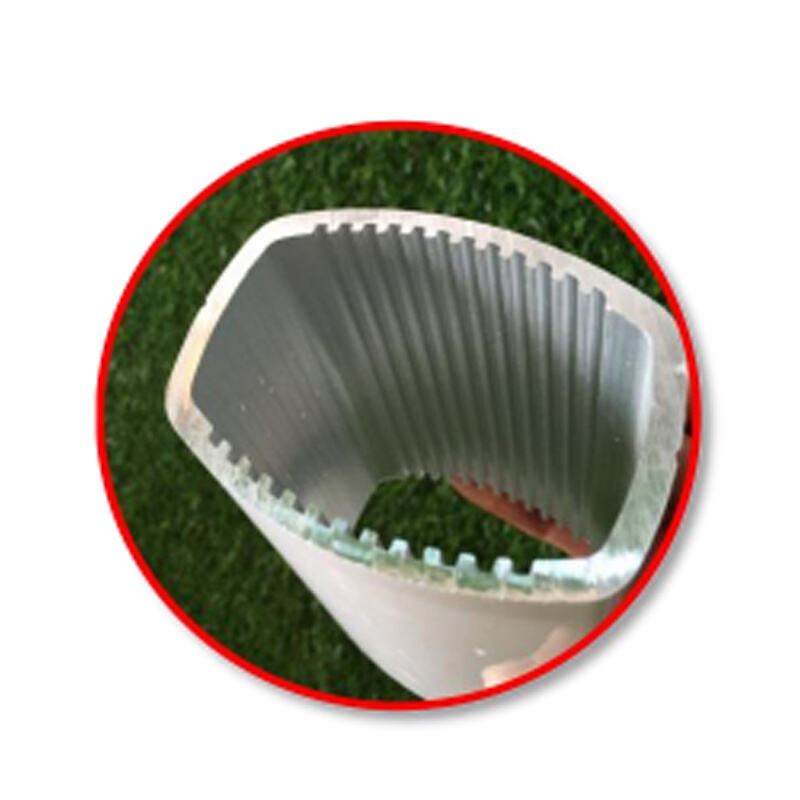

Ultra-thick aviation aluminum arms with 304 stainless steel dual chains ensure structural stability, wind resistance, and eliminate collapse risks.
Uses 40×60mm hot-dip galvanized square tubes for mounting, suitable for both wall and ceiling installation, adaptable to various structures.
It has strong tensile strength and its service life is more than ten times longer than that of ordinary steel wire.
With a thickness of 5.0MM and an extension of five meters, it ensures greater force application.
It has a longer lifespan and is more durable, enhancing its ability to resist rust and friction fractures in harsh weather conditions.
Made of high-strength aluminum alloy, it is wind-resistant, beautiful and durable.

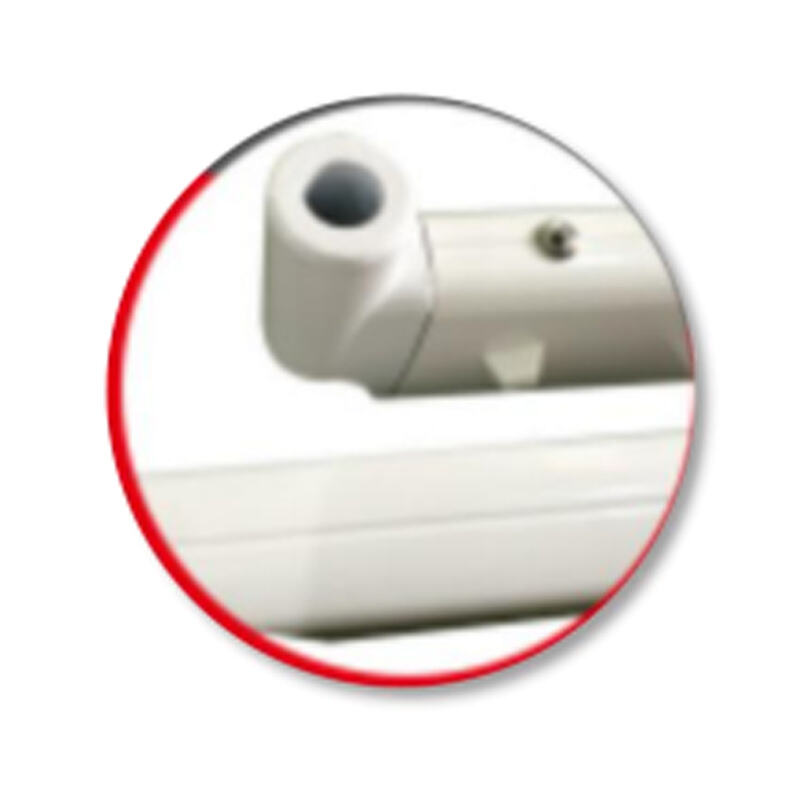

The force application becomes better, avoiding friction between the arm tube and the front tube.
It has a longer lifespan and is more durable, enhancing its ability to resist rust and friction fractures in harsh weather conditions.
| Comparison project | LUXDOOR B02 Heavy Duty Awning | LUXDOOR B04 Full Box Awning | Market Common Open Awning |
| Product positioning | Large span and heavy load engineering scheme | Compact, fully protected and refined solution | Universal basic type |
| Maximum Coverage Size | Width ≤ 28m, extension ≤ 5m
|
Width ≤ 6m, extension ≤ 3m
|
Width ≤ 8 m, extension ≤ 3m |
| Core skeleton material | 5.0mm thick 6063-T5 aviation aluminum crank arm + 304 stainless steel double chain | 6063-T5 high-strength aluminum alloy + 304 stainless steel chain joint | Common aluminum alloy (about 2.0mm thick) |
| Structural mechanics | Double chain + super thick crank arm, high safety redundancy | Full box enclosure design, fold for complete protection | Single-arm pipe connection, stress concentration |
| Maximum load bearing | ≥ 350 kg
|
200 kg
|
Usually ≤ 100 kg |
| Fabric system | The fabric imported from Germany Svela/Spain Recasens is preferred, and the color fastness is up to 10 years. | Optional imported fabrics of the same grade, with color fastness of 5-10 years | Ordinary polyester fabric, easy to fade and aging |
| Protection design | 40 × 60 hot-dip galvanized double square pipe foundation, concealed front drain pipe
|
All aluminum alloy enclosure, concealed front drain pipe, carbon steel coiled cloth pipe (0.8g coating)
|
Open structure, without enclosure protection |
| Drive torque requirements | Must be ≥ 80 N high torque motor
|
80 N motor as standard (larger options available)
|
Conventional small torque motor |
| Wind resistance | Extremely strong (designed for large span wind resistance) | Strong (the structure is compact, and the cover reduces the wind resistance) | General (to be recovered in windy weather) |
| Service life | Extra Long (Engineering-Grade Materials and Construction) | Long (full protection design extends life) | Medium |
Description: The B02 series adopts a truss structure composed of 5.0mm aviation aluminum double curved arms and 304 stainless steel double chains, eliminating the risk of single-point failure from the root. It can bear a load of over 350kg and provides absolutely reliable structural safety guarantees for large-scale projects such as hotels and logistics centers. This is far beyond the comparison of lightweight products on the market.
Technical support: 5.0mm aviation aluminum articulated arm; 304 stainless steel double chain drive; Load-bearing capacity ≥350kg.
Description: The B04 series features an innovative all-aluminum alloy closed cover that completely stores the fabric and mechanical structure when not in use, isolating it from sun exposure, rain, and dust contamination. Combined with high-coated (0.8g) carbon steel coil fabric pipes and hidden drainage design, it not only offers an exquisite appearance but also achieves ultimate protection, significantly extending the product's service life in harsh outdoor environments.
Technical support: Full-box cover design; 0.8g coated carbon steel coil cloth pipe Hidden drainage structure.
Description: All our products can be equipped with top-quality imported fabrics such as German Svela and Spanish Recasens, featuring 10 years of color fastness, UV80+ resistance, and nano self-cleaning properties. Combining intelligent tubular motors with optional wind, solar and rain sensors, it enables one-click control and even fully automatic intelligent opening and closing, elevating functional sunshade to a comfortable, convenient and high-quality outdoor living experience.
Technical support: German Svela fabric (color fastness of 10 years); Spanish Recasens fabric (color fastness 4-6 years); Supports remote control and the linkage of wind, solar and rain sensors.
Excellence
Engineering peace of mind for high-value projects. Every system undergoes a mandatory 48-hour endurance cycle and laser-aligned motor calibration before leaving our facility.
Tested under extreme load conditions to ensure peak performance in any architectural context.
220V AC / 110V AC | 24V DC
350W - 1200W
Up to 2500kg (Industrial Range)
Brushless DC / Heavy Duty AC Oil-Bath
IP55 Professional
-35°C ~ +70°C
From sterile medical environments to high-traffic commercial hubs, our systems meet the specific demands of every industry.
Global Projects
Hermetic sliding doors designed for clean rooms and operating theaters.
Explore Details
High-traffic curved glass doors for seamless visitor flow.
Explore Details

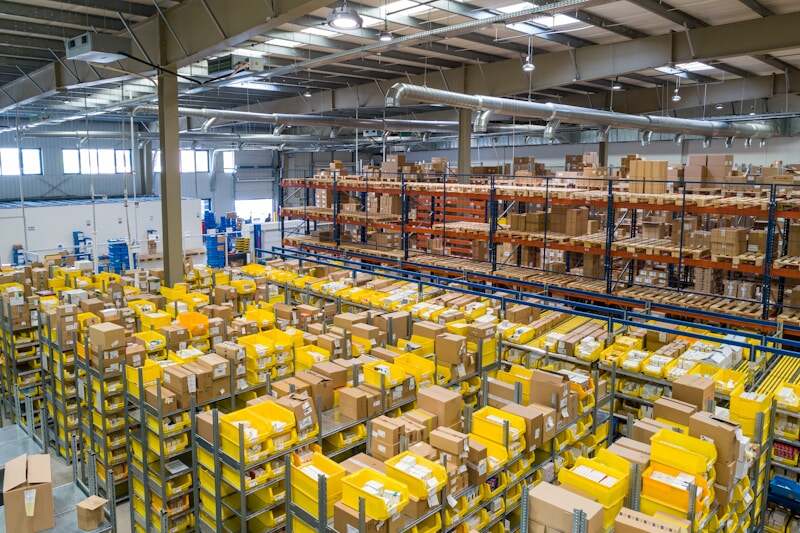

Fast-acting roll-up doors for optimized supply chain efficiency.
Explore Details

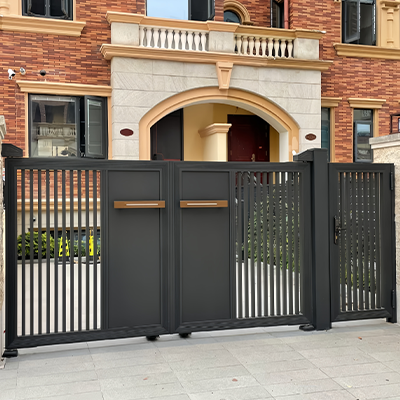

integrated gate systems combining biometric security with silent movement.
Explore Details
This video demonstrates the smooth extension and retraction of an awning. The mechanism operates quietly and steadily, allowing quick deployment to create a wide shaded area and neat retraction to save space. Ideal for balconies, patios, and above windows, it offers flexible adaptation to sunlight and weather.
This video presents the installation and application of an awning in a cafe's outdoor seating area. It provides customers with a comfortable space sheltered from sun and rain, effectively expanding the business area. Its sleek and stylish design also enhances the overall storefront image, making it an ideal solution for commercial outdoor spaces.
"Quality is never an accident; it is always the result of high intention and sincere effort."

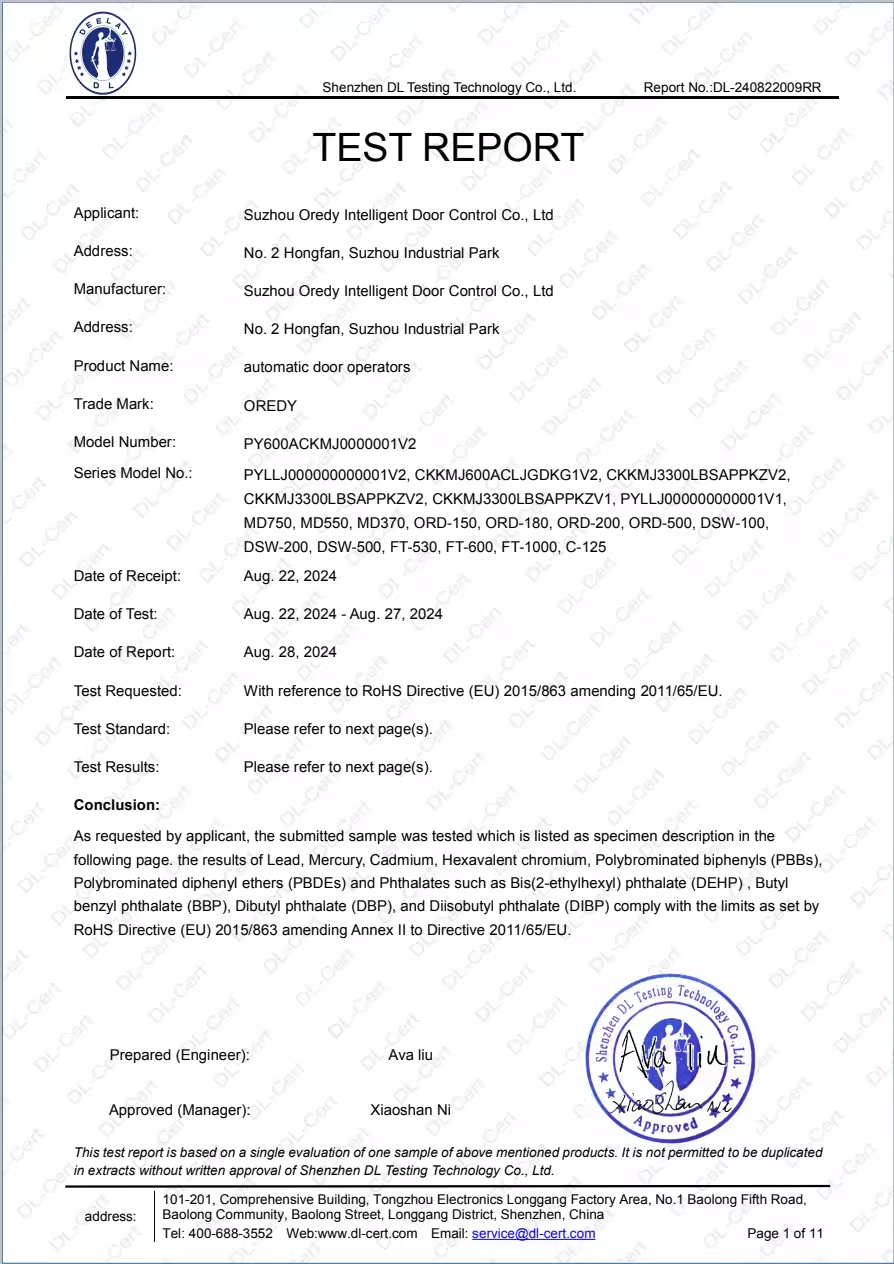

No. DL-240822009RR
This report confirms that the automatic door operators from Suzhou Oredy Intelligent Door Control Co., Ltd. comply with EU RoHS Directive (EU) 2015/863. All tested restricted substances are within the permissible limits.

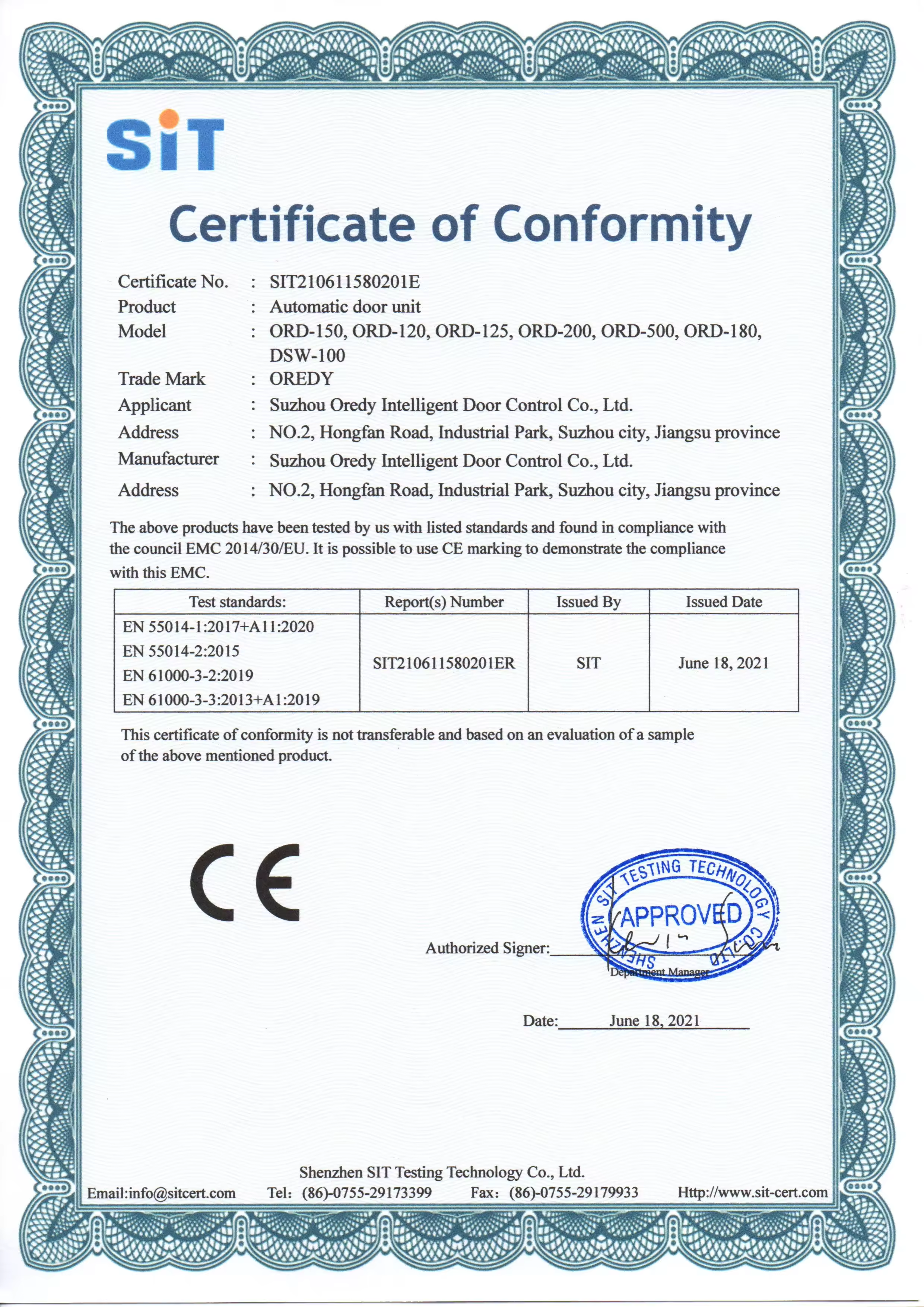

SIT210611580201E
This certificate confirms that the automatic door units from Suzhou Oredy Intelligent Door Control Co., Ltd. comply with EU EMC Directive 2014/30/EU. The product range has been successfully tested against applicable standards, authorizing the use of the CE marking.

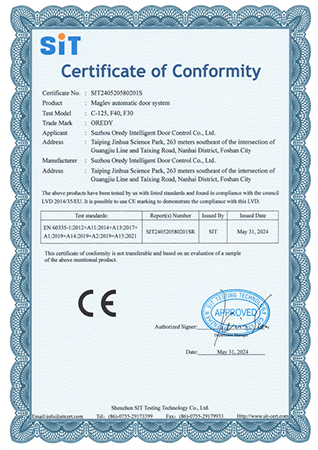

SIT240520580201S
This certificate confirms the compliance of the OREDY Maglev automatic door systems with the EU Low Voltage Directive 2014/35/EU. The tested models meet the essential safety requirements of the relevant standard EN 60335-1, authorizing the use of the CE marking.

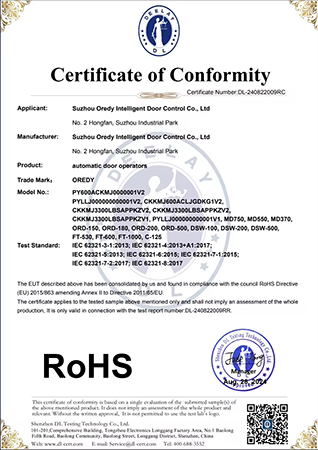

No. DL-240822009RC
This certificate confirms that the OREDY automatic door operators comply with EU RoHS Directive (EU) 2015/863, based on testing against IEC 62321 series standards.
Find quick answers regarding procurement, technical support, and logistics.
It is made of imported UV-resistant fabric with a sun protection factor of over 80, effectively blocking ultraviolet rays.
The structure is sturdy, the fabric is waterproof, and it has a certain ability to resist wind and rain.
It is equipped with a standard tubular motor and supports remote control, timing, and automatic control based on wind, solar and rain sensors.
Supports wall installation and hoisting, and needs to be fixed according to the wall structure.
The fabric surface has undergone nano-treatment, which is stain-resistant and self-cleaning, making daily cleaning simple and convenient.
Access everything needed for project planning, installation, and maintenance in our document library.
Contact our team for .DWG & .BIM
The B02 series sunshade is designed for large outdoor shading areas, featuring 5.0MM aviation-grade aluminum dual-chain crank arms capable of covering up to 28m × 5m, with excellent wind resistance and load-bearing capacity. It is suitable for high-end venues such as villas, hotels, and restaurants.
The B04 fully enclosed model stands out with its all-aluminum alloy hood, which completely protects the structure and fabric when retracted, extending its service life. Both products are equipped with imported fabrics from Spain or Germany, offering high color fastness, UV resistance, and tear resistance. They are paired with tubular motors for convenient electric operation, making them reliable choices for outdoor shading solutions.
