| Item | Specification |
| Product Name | Electric Single Chain Window Opener |
| Model | SC Series (customizable) |
| Input Voltage | AC100–240V / 50–60Hz |
| Working Voltage | DC24V |
| Power Consumption | 20W – 40W |
| Max. Thrust/Force | 300N – 600N |
| Chain Stroke (Opening Distance) | 200mm / 300mm / 400mm / 500mm / 600mm (optional) |
| Chain Type | Stainless steel double-layered chain |
| Control Method | Wall switch / Remote control / Central control / Smart home link |
| Protection Class | IP32 – IP65 (optional) |
| Load Capacity | Suitable for window sash up to 60kg |
| Noise Level | ≤ 45dB |
| Opening Speed | 8–12mm/s |
| Installation Type | Top-hung window / Bottom-hung window / Skylight window |
| Operating Environment | -5°C to +75°C |

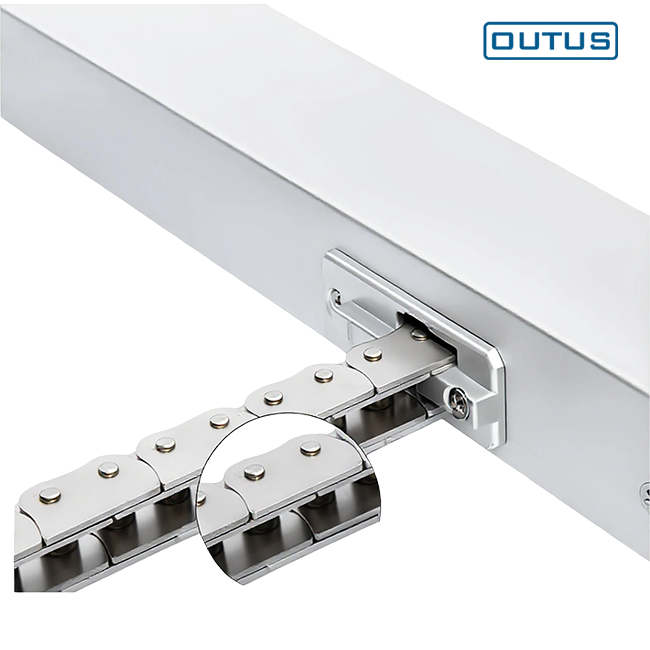

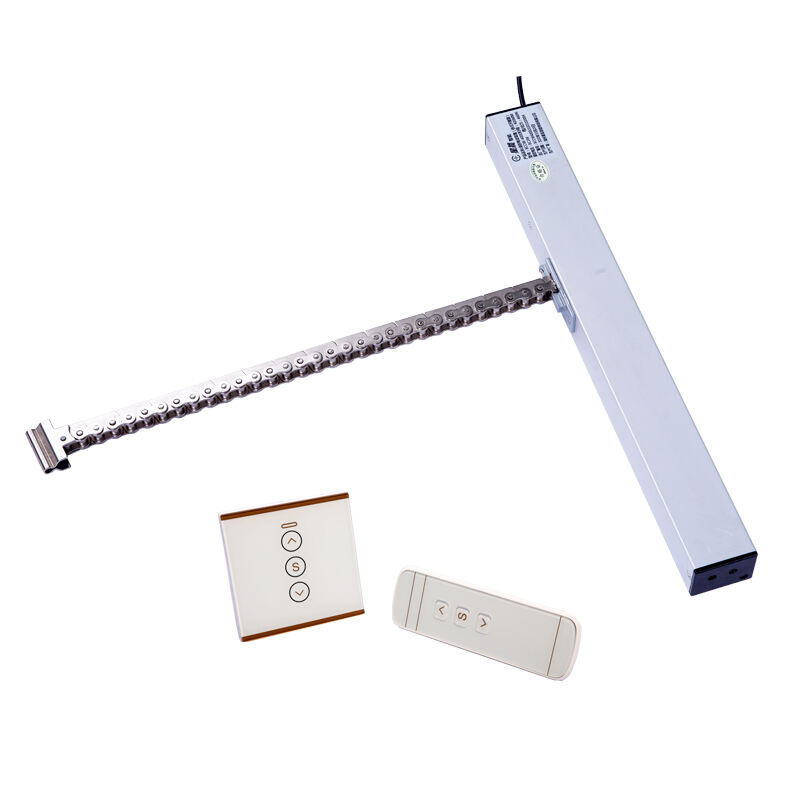

The Outus Electric Single Chain Window Opener is a smart, reliable solution for automated window ventilation and remote window control. Designed with a strong stainless-steel chain and a compact motor structure, it is ideal for ventilation projects in homes, schools, offices, factories, greenhouses, and public buildings.

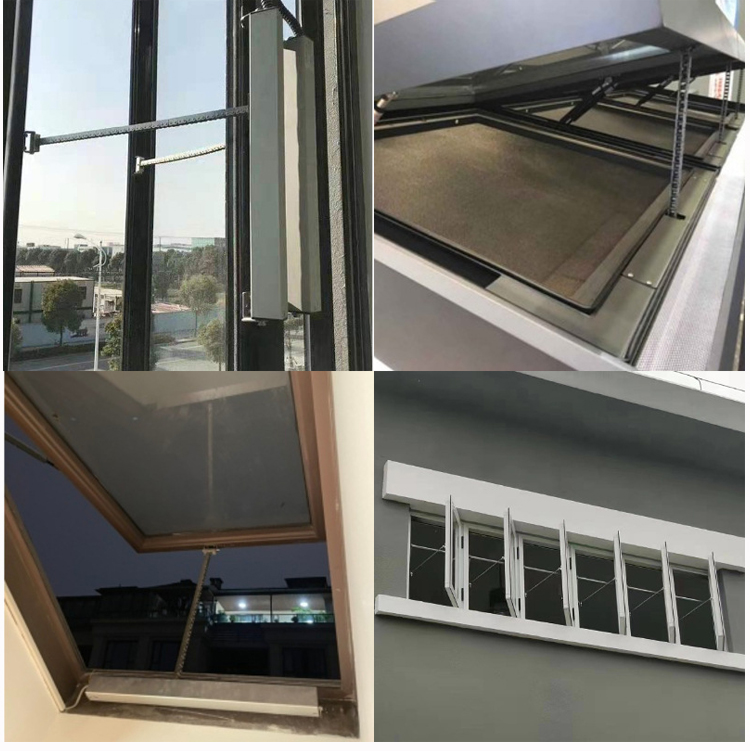

It is suitable for top-hung windows, bottom-hung windows, and skylights and can be easily integrated into smart home systems or central building control (BMS).
