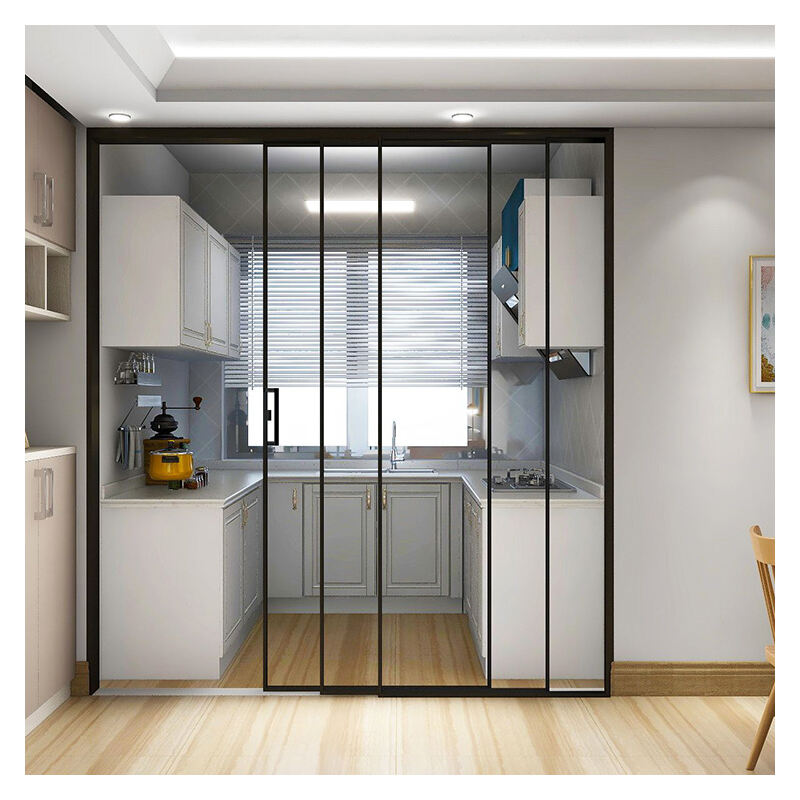

OUTUS Premium Magnetic Levitation Door System | Custom Size, Concealed Installation for Boutique & Corporate

✔ Advanced Magnetic Levitation Technology: Ensures smooth, quiet operation with no traditional mechanical friction, reducing wear and extending lifespan.

✔ Ultra-Minimalist Design: Hidden track and top-fixing installation maintain clean sightlines and architectural aesthetics.

✔ Smart & Flexible Control: Supports multiple modes including manual push, sensor activation, switches, remote control, and Bluetooth App for diverse scenario needs.

✔ Powerful & Stable Performance: Robust 120 kg load capacity with adjustable motor current and operational parameters to suit different door weights and environments.

✔ Safety & Reliability: Features electric lock function, safety light curtain signal interface, and comprehensive fault diagnosis and parameter protection.

✔ Easy Installation & Setup: Modular design with clear installation steps and wiring guidance. Simplifies parameter configuration and factory reset via the App.

Products
Technical Data
Downloads

Technical Data Sheet

Category	Specifications
Model	C-125
Drive Technology	Magnetic Levitation
Max. Load Capacity	120 kg
Suitable Door Type	Top-Fixing Glass Door
Power Supply	220V AC
Control Voltage	24V DC
Control Modes	Manual Push, Radar Sensor, Spring Back Switch, Conductive Carpet, Touch Sensor, Remote Control, Bluetooth App
Key Features	Adjustable Opening Speed, Adjustable Open Time Delay, Electric Lock Control, Opening Direction Setting, Bluetooth Parameter Adjustment
Installation Method	Top Fixing
Special Configurations	Engineering Mode Parameter Adjustment, Self-Diagnosis & Factory Reset Function

Product description

The C-125 Magnetic Levitation Automatic Door Series is a high-end automatic door solution that integrates modern aesthetics with cutting-edge technology. Utilizing advanced magnetic levitation drive technology, it enables smooth and silent operation of the door leaf through contactless magnetic movement. Designed specifically for top-fixing glass doors with a wide load-bearing range (50-120 kg), this series is ideal for commercial and high-end residential spaces that pursue spatial transparency and a modern, minimalist style.

The door system supports multiple control modes (manual push, radar sensor, switch, touch control, etc.) and flexible installation options. It can be intelligently configured via a Bluetooth app, delivering an elegant and sophisticated passage experience while ensuring outstanding reliability, safety, and customization.
