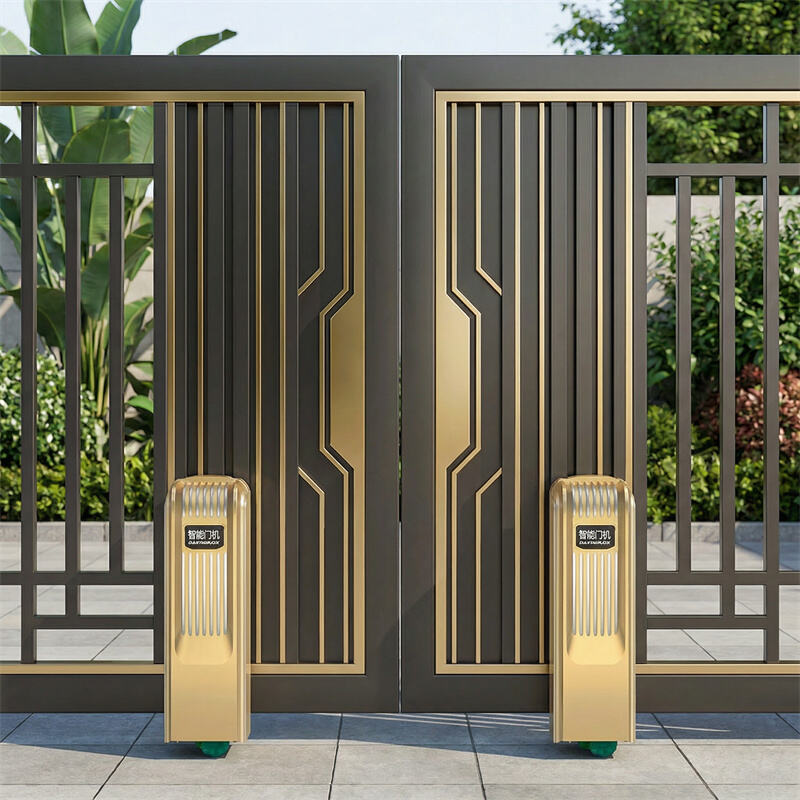

Residential Swing Gate Motor Door Opener Controller - Easy Installation & Stable Operation

This swing gate motor controller is the core control device of the swing gate automation system, specifically designed for swing gate scenarios such as residential and commercial premises, supporting dual-gate control needs. It supports AC24V input voltage and is equipped with a UPS battery interface to ensure emergency use during power outages, outputting 12V external power supply and compatible with various locks such as magnetic locks and electric control locks. It can learn and pair up to 128 remote controls, featuring multiple control methods including remote control, card swiping control, ground sensing control, and infrared sensing control, enabling switching between single-gate/dual-gate simultaneous opening and sequential opening. Built-in DIP switches and potentiometers allow flexible settings of automatic door closing delay (1-120 seconds), door closing time difference (0-35 seconds), slow stop speed regulation, obstruction handling and other functions. It also has safety mechanisms such as locking and anti-pinch protection, providing a precise, stable and intelligent control solution for swing gates.

Products
Technical Data

Product description

1.Multiple Control Methods

Supports remote control, card swiping, ground sensing, infrared sensing, single-key external and other control modes. The remote control learning capacity is up to 128, and it also has an air pairing function, adapting to different usage scenarios and operating habits.

2.Flexible Function Configuration

Various modes such as single-key remote control, locking, single-gate/dual-gate card swiping opening, automatic door closing, and obstruction handling can be set through DIP switches; potentiometers can precisely adjust slow stop speed, door closing time difference, and automatic delay to meet personalized needs.

3.Comprehensive Safety Protection

Equipped with obstruction return/stop function to effectively avoid pinching or equipment damage; supports locking mode, which cannot be arbitrarily controlled after locking; compatible with magnetic locks and electric control locks, delaying power supply after the door is closed in place to improve security level.

4.Dual-Gate Intelligent Control

Supports switching between dual-gate simultaneous opening or sequential opening, with door closing time difference adjustable from 0-35 seconds, adapting to different door sizes and installation scenarios, with precise and efficient control.

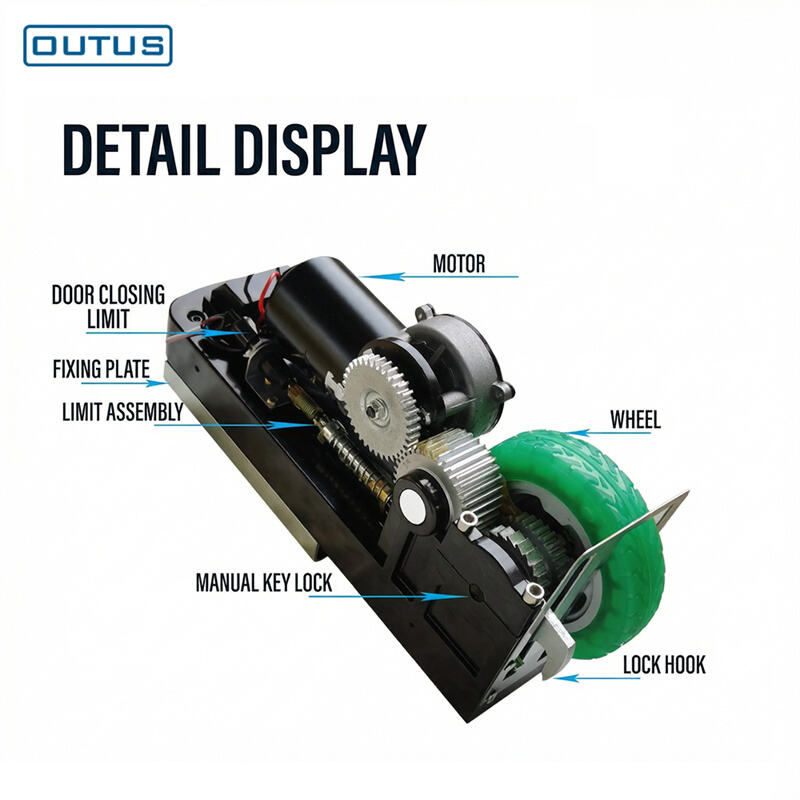

5.Stable and Reliable Operation

Equipped with UPS battery interface for emergency use after power outage; standard input and output interfaces, compatible with various peripherals and locks; reasonable mainboard structure design, strong anti-interference ability, ensuring long-term stable operation.

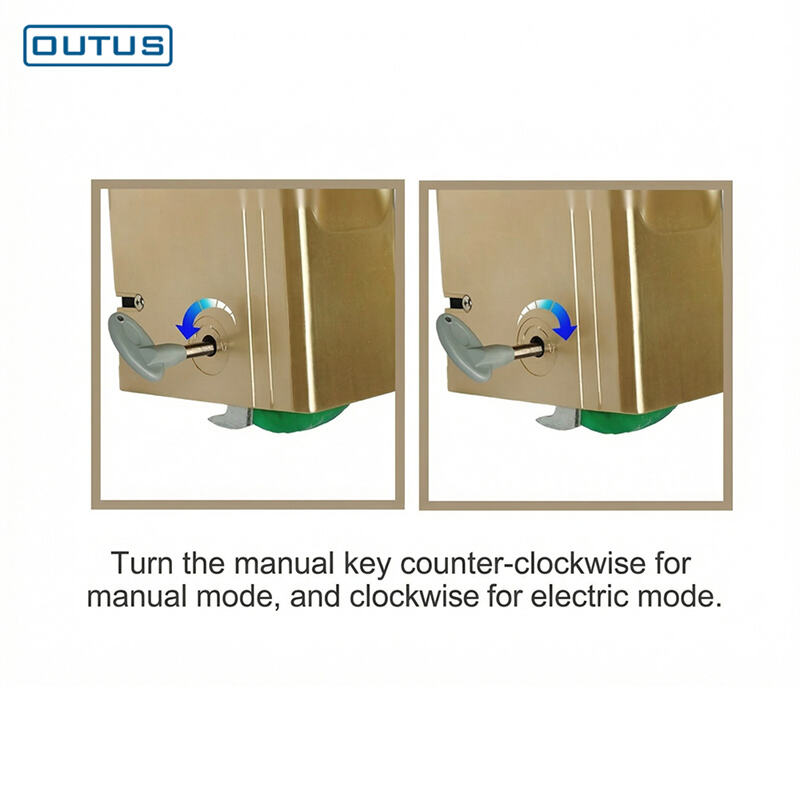

6.Easy Installation and Debugging

Clear interface identification and simple wiring; convenient operation of learning mode and function setting, no complex professional knowledge required, high debugging efficiency and reduced installation costs.

Authentication

Dual-Gate Swing Gate Motor Door Opener: Smooth Open & Auto-Close Performance

Watch the full process of 8-way swing gate opening and closing controlled by our swing gate motor door opener! The video shows the dual gates opening smoothly (simultaneous or sequential mode optional) with adjustable slow stop speed, then automatically closing after the set delay (1-120 seconds). Equipped with 128 remote control learning capacity, it supports card swiping, ground sensing, and infrared control for versatile access. The anti-pinch function (obstruction return/stop) ensures safety, while the 0-35s closing time difference optimizes synchronization. With UPS emergency power support and magnetic lock compatibility, it’s perfect for residential courtyards, commercial entrances, and other high-demand scenarios.

Technical data

Category	Item	Detailed Specifications
Power Parameters	Input Voltage	AC24V
	External Output Voltage	+12V (positive pole), GND (ground/negative pole)
	Emergency Power Interface	UPS battery interface (pay attention to positive and negative poles)
Remote Control Function	Maximum Learning Quantity	128 remote controls
	Pairing Modes	Remote control configuration mode, air pairing mode (add-only, no deletion)
	Remote Control Operations	Add, delete, clear all remote controls; single-key remote control option available
Functional Configuration	DIP Switch Modes	1. Single button remote control (ON/OFF) 2. Lock setting (ON/OFF) 3. Card swiping single door (ON/OFF) 4. Automatic door closing (ON/OFF) 5. Return to open in case of obstruction (ON/OFF) 6. Magnetic control (ON/OFF) 7. Slow setting throughout the entire process (ON/OFF) 8. Simultaneous door opening setting (ON/OFF)
Functional Configuration	Potentiometer Adjustments	1. Slow stop speed regulation (no slow stop function at maximum setting) 2. Thrust adjustment (adapts to resistance force needs) 3. Closing time difference: 0-35 seconds 4. Automatic delay: 1-120 seconds (for automatic door closing after full opening)
Control Interfaces	Core Control Interfaces	ONE (single button), DG (ground sensing), OPEN (card swiping), STOP, CLOSE, FSW (infrared)
	Lock Interfaces	NO (normally open, electric control lock), COM (common wiring for electric/magnetic locks), NC (normally closed, magnetic lock)
	Door Machine Interfaces	Door machine 1, Door machine 2 (supports dual-gate control)
	Other Interfaces	GDN (external port common terminal), Transformer input interface
Safety & Protection	Safety Functions	Obstruction handling (return to open/stop optional), lock mode (prevents arbitrary control), magnetic control delay (3 seconds power on/off for locks after door closing)
Working Modes	Door Opening Modes	Simultaneous dual-gate opening, sequential dual-gate opening (switchable via DIP switch)
Working Modes	Operation Modes	Full slow mode, fast-slow full speed mode (switchable via DIP switch)
Additional Features	Feedback Indicators	LED light (status prompt for learning mode, operation success/failure), buzzer (sound prompt for pairing, deletion, clearing)
Additional Features	Compatibility	Compatible with magnetic locks, electric control locks, ground sensors, infrared sensors, card swiping devices
