AC220V/DC24V Electric Window Opener 300N Thrust 30mm/s Speed 400-3000mm Stroke Over 30,000 Cycles Lifespan

This is a high-performance electric window opener suitable for multiple scenarios, supporting AC220V/DC24V dual power supply with a rated power of 30W. Equipped with 300N strong push-pull force and 30mm/s fast operating speed, it covers a full stroke range of 400-3000mm, meeting the automatic opening and closing needs of windows of different sizes.

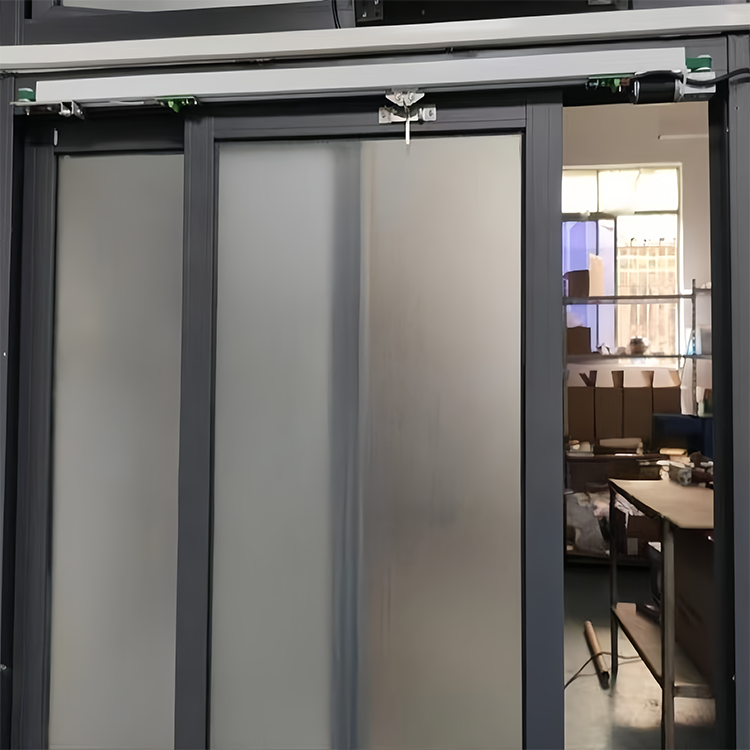

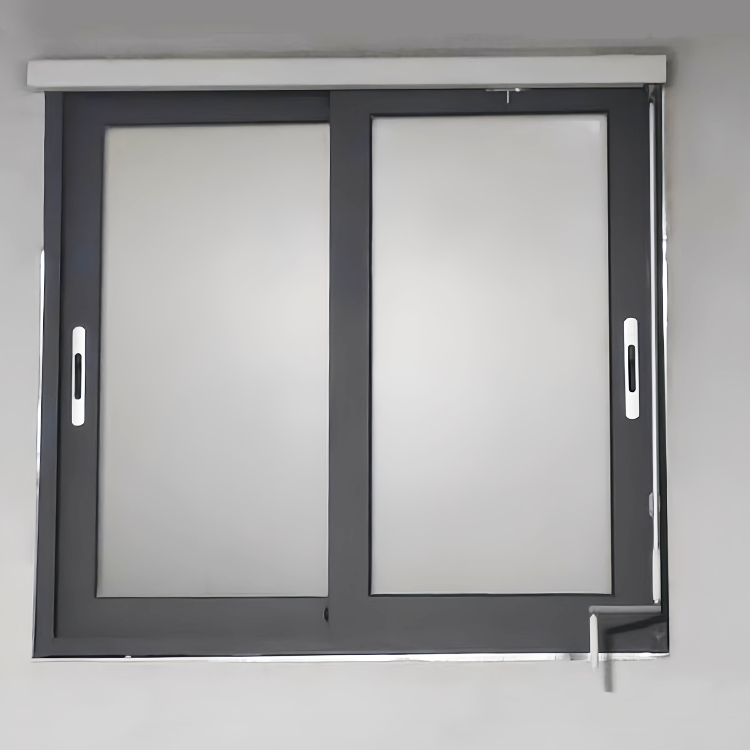

The product adopts electronic mode end stroke control, supports custom open/close window position signals, and the operation is precise and controllable; after more than 30,000 cycles of life testing, the aluminum alloy body with IP30 protection rating can operate stably in the environment of -15℃~+75℃. It is suitable for intelligent control of sliding windows and top-hung windows in residences, office buildings, factories and other places, with the characteristics of high efficiency, durability and safety.

  • Products
  • Technical Data

Technical data

Item Specification
Rated Power Supply AC220V; DC24V
Rated Power 30W
Push-Pull Force 300N
Running Speed 30mm/s
Working Temperature -15℃ ~ +75℃
Mechanical Service Life >30000 Cycles
Protection Grade IP30
Stroke Specification 400~3000mm (Customizable)
End Stroke Control Electronic Limit Mode
In-Place Signal Output Support Open/Close Custom Setting
Working Frequency Intermittent (1min work/10mins)
Installation Method Front/Side/Inverted Mounting
Adapted Window Type Casement/Top-hung/Bottom-hung/Sliding
Transmission Mode Lead Screw Drive
Overload Protection Mechanical + Electronic Double Protection

Product description

▪Dual Power Supply + High Adaptability: Supports AC220V/DC24V dual power supply, 30W low power with high efficiency, adapting to different power scenarios.

▪Strong and Efficient: 300N push-pull force + 30mm/s operating speed, powerful opening/closing and fast response, 400-3000mm long stroke covers multi-size windows.

▪Precise and Controllable: Electronic mode end stroke + open/close window position signal, precise window opening/closing position, adapting to automatic linkage needs.

▪Ultra-long Durability: Over 30,000 cycles of life testing, corrosion-resistant aluminum alloy body, IP30 protection + (-15~+75℃) wide temperature adaptation, stable and reliable for long-term use.

▪Strong Scene Compatibility: Suitable for sliding windows, top-hung windows and other window types, applicable to intelligent window opening needs in residences, offices, industries and other places.

AC220V/DC24V Electric Window Opener 300N Thrust 30mm/s Speed 400-3000mm Stroke Over 30,000 Cycles LifespanAC220V/DC24V Electric Window Opener 300N Thrust 30mm/s Speed 400-3000mm Stroke Over 30,000 Cycles Lifespan
