OUTUS Foot Pedal Switch | Hands-Free Operation, IP67 Waterproof for Medical & Food Industry

✔ Long Life: Core switch components have been rigorously tested to achieve a mechanical lifespan of over 500,000 cycles.

✔ High Protection: Industrial-grade products feature high IP ratings (e.g., IP54, IP67), effectively preventing the intrusion of oil, dust, and water, making them suitable for a variety of harsh environments.

✔ High Load Capacity: They can withstand high currents and voltages, allowing them to directly control heavy equipment or connect via a PLC.

✔ Multiple Interface Options: They offer a variety of standard interfaces for seamless integration with most industrial equipment, computers, and medical devices.

✔ Wireless Convenience: Wireless models require no wiring, simplify setup, and keep your work area tidy, making them ideal for mobile office work and presentations.

✔ Programmability: Select high-end models support customizable functions. Macro commands can be assigned via driver software, allowing complex operations to be performed with a single click (or tap).

Products
Technical Data
Downloads

Technical data

Parameter	Specification

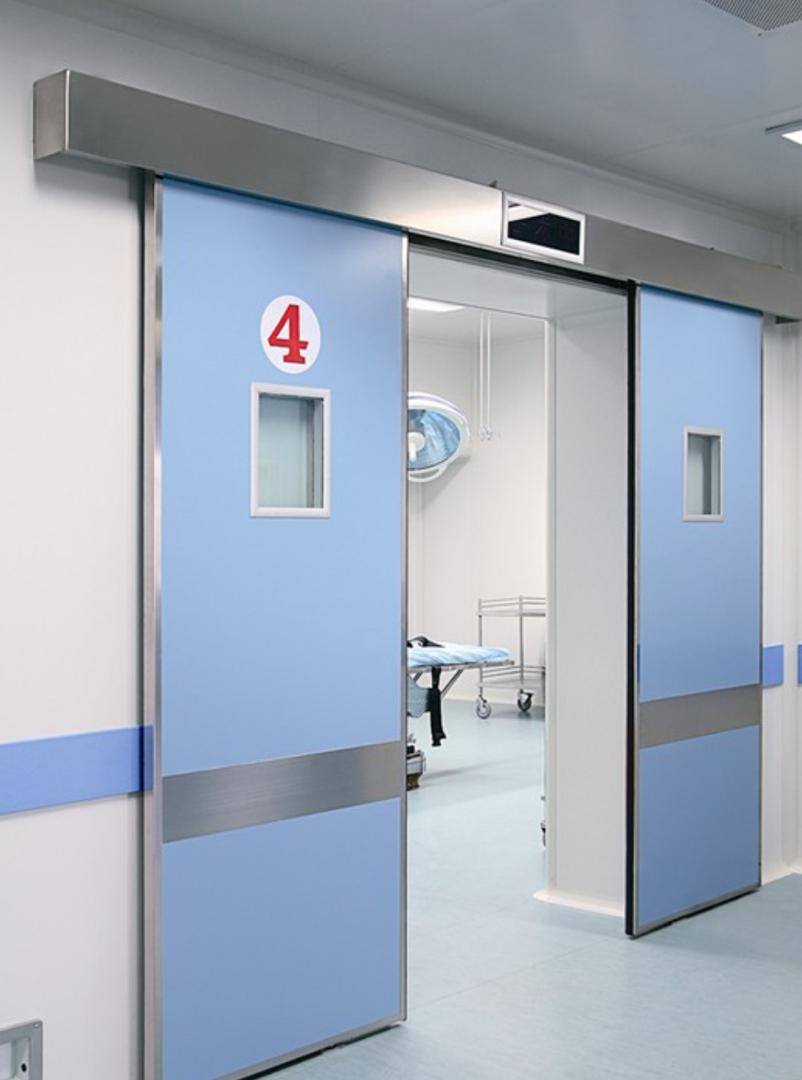

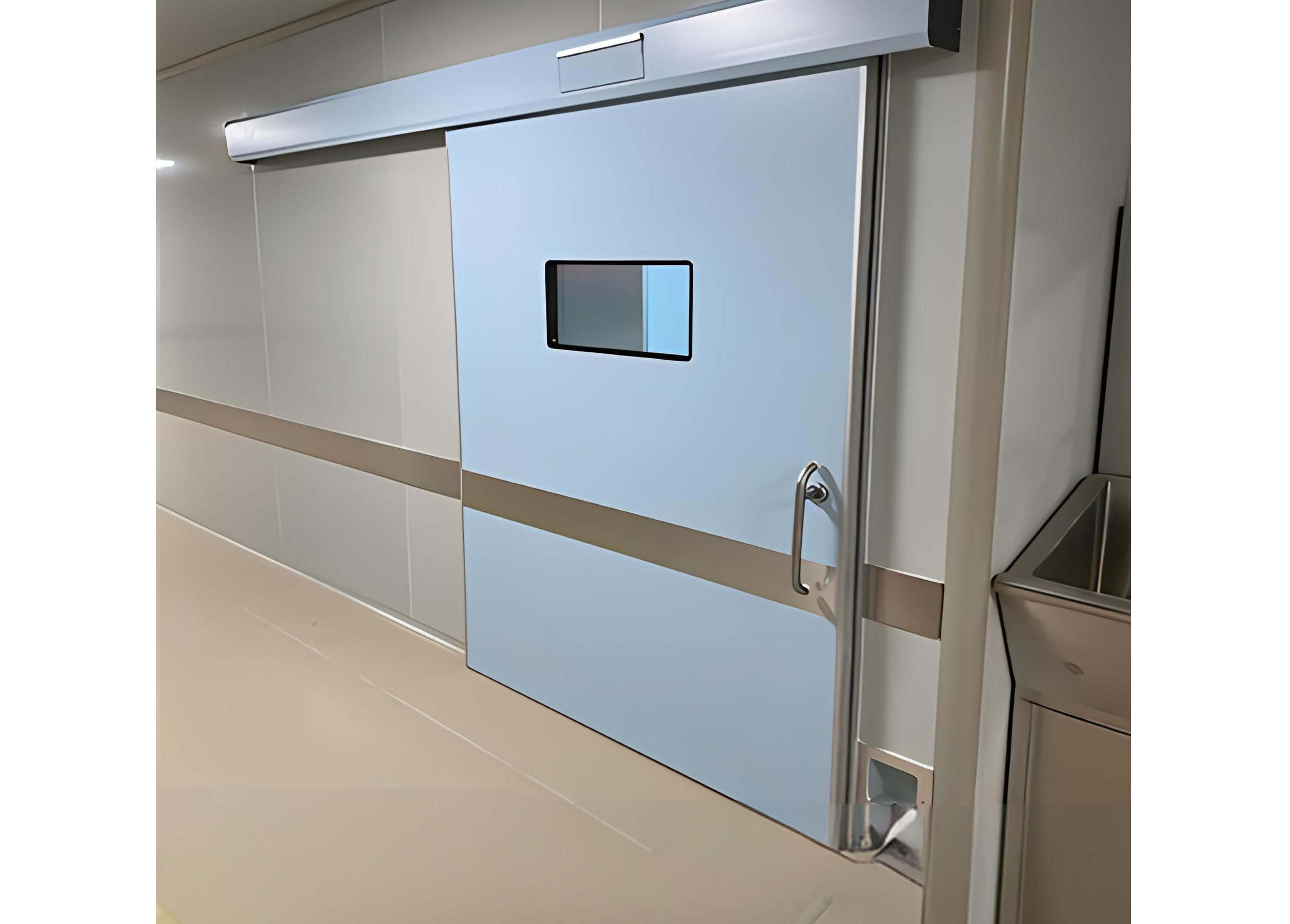

Applications	Hospital Operating Rooms, Cleanrooms, Laboratories
Key Features	Hands-free operation, Prevents hand pollution, Microcomputer-controlled
Sensing Technology	Active Infrared Ray (Modulation-Demodulation)
Action Time (Response)	Relay Output ≤ 45 ms
Supervisory Signal	4.5 mA
Power Input	12 – 36V AC/DC (Universal)
Power Consumption	82 mA
Electric Eye Dimensions	149 (L) × Φ13 (Diameter) mm
Outer Cover Dimensions	186 (H) × 175 (W) × 60 (D) mm
Internal Mounting Cut-out	118 (L) × 100 (W) × 54 (D) mm

Product description

A foot switch is a device that switches an electrical circuit on and off by pedaling. It separates the operator's hands and feet from the controls, freeing them up, improving work efficiency, and ensuring operational safety. It is an indispensable auxiliary control device in modern industrial production, medical equipment, office equipment, music production, and other fields.

Core Positioning: A simple, reliable, and efficient human-computer interface that allows your feet to participate in the work process, achieving a more ergonomic operating process.

Ultimate Efficiency, Hands-Free

Offload frequent, simple operations (such as starting, stopping, and switching) to your feet, allowing your hands to continue with primary tasks (such as welding, sewing, surgery, and packaging). This significantly reduces interruptions and improves overall work efficiency and consistency.

Enhanced Safety and Precision Control

In scenarios requiring steady hands (such as medical surgery and laboratory work), controlling equipment with your feet effectively avoids the risks associated with hand movement, improving operational precision and safety. In emergencies, a foot-activated emergency stop switch is also faster than manually searching for it.

Ergonomic Design Reduces Occupational Injuries

By dividing the work between hands and feet, you avoid muscle fatigue and the risk of occupational illnesses such as carpal tunnel syndrome caused by repetitive hand operations. The optimal pedal angle and force design significantly improves operator comfort.
