Automatic Door Opener Sliding Kit Electric System Sensor Machine Motor for Glass Operator Commercial Hotel Shopping Mall

ORD150Pro Automatic Door Operator System is a high-end intelligent driving device specially designed for single and double sliding automatic doors. Adopting microprocessor intelligent control technology and advanced mechanical manufacturing process, it is equipped with a DC24V brushless long-life motor, and features excellent performance of large load capacity, low noise and smooth operation, supporting flexible adaptation of light and heavy door leaves. The device supports precise adjustment of multiple parameters such as opening/closing speed and hold-open time, and can be expanded with multiple functions including access control, two-door interlocking and safety light curtain. With a surface-mounted and easy installation design, it is suitable for the new installation and transformation of automatic doors in various scenarios such as commercial stores, office spaces and public buildings. It balances stable performance and minimalist appearance aesthetics, meeting the access and decoration needs of different spaces.

Products
Technical Data

Product description

1.Brand-new aesthetic appearance design, simple and elegant, adapting to the spatial visual needs of various decoration styles.

2.Equipped with a DC24V brushless motor, no mechanical wear, long service life and low daily maintenance cost.

3.Microprocessor intelligent control, precise adjustment of opening/closing speed, buffer distance and hold-open time available.

4.Super load capacity, max 150kg for single leaf and 2×120kg for double leaves, compatible with all light and heavy door leaves.

5.Stable and low-noise operation, no jitter during opening and closing, creating a quiet and comfortable access environment indoors and outdoors.

6.Supports two-door interlocking and electric lock functions, compatible with multiple access control systems to improve space security level.

7.Surface-mounted easy installation, suitable for mainstream door widths, convenient construction and lower installation cost.

8.Diverse optional function expansion, supporting safety light curtain, backup battery, card reader, remote control, etc.

9.Wide voltage global compatibility with AC110-220V±10% 50/60Hz, adapted to the world's mainstream power grids.

10.Excellent weather resistance, working temperature from -20℃ to 50℃, adapting to different regional climates with stable operation.

11.Low resistance for manual opening and closing, easy manual operation in emergency situations, improving user convenience.

Authentication

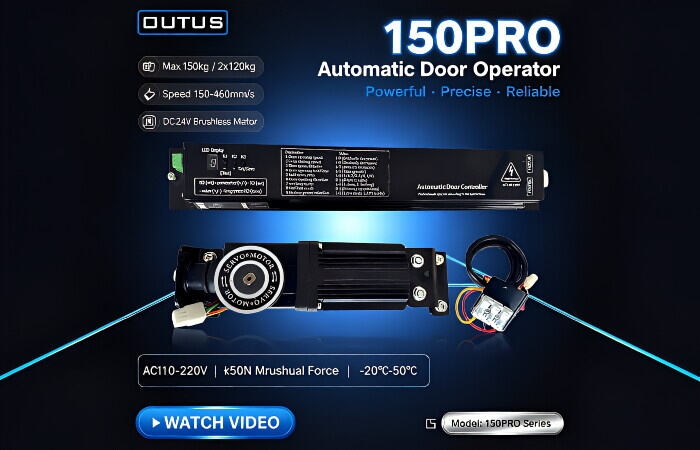

ORD150Pro Complete Accessories Display | Original Factory Standard Parts

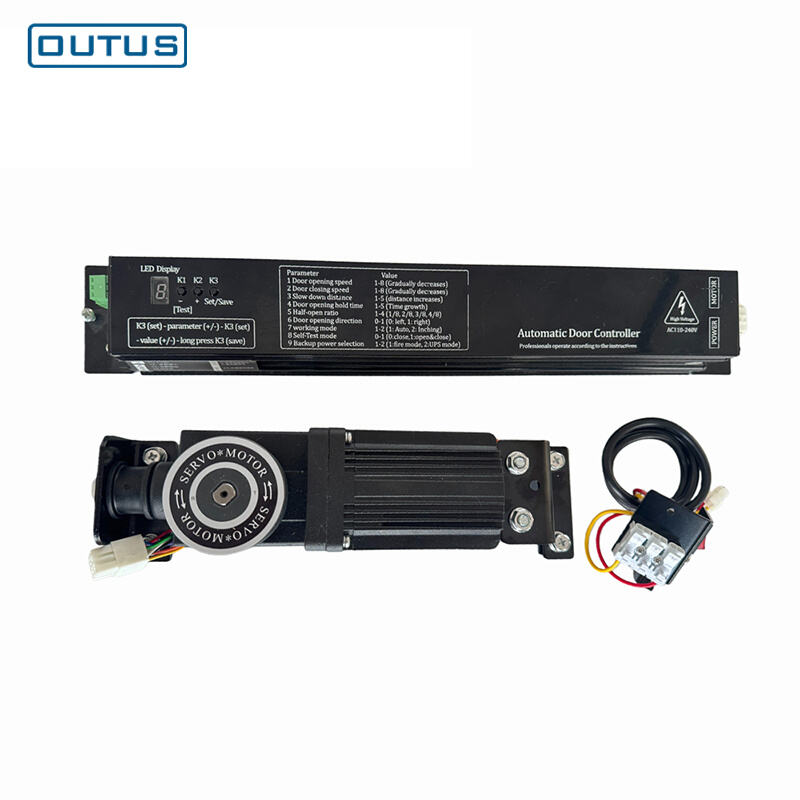

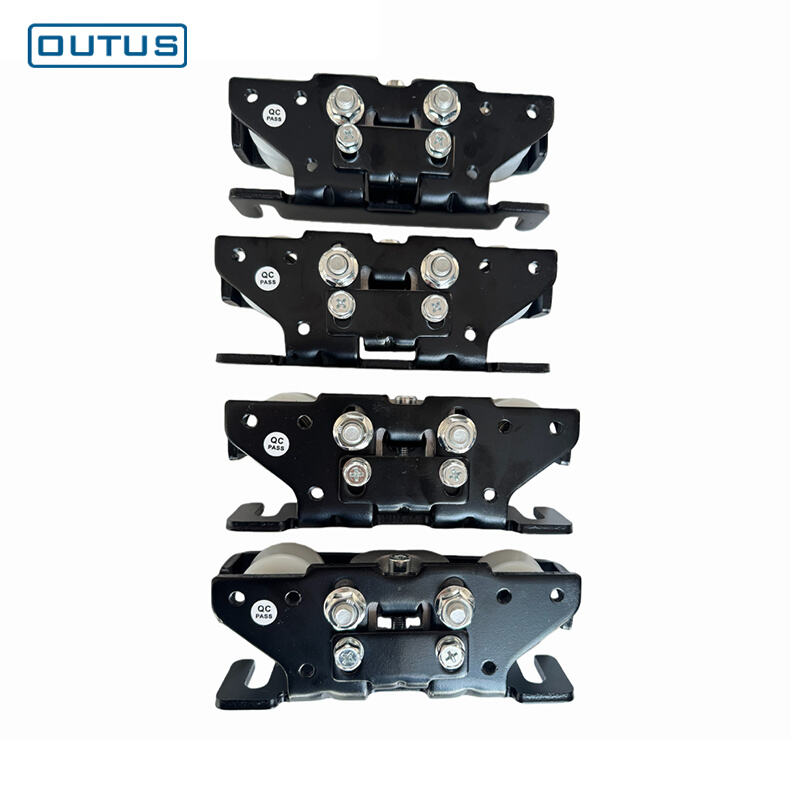

Welcome to the full display video of original accessories for the ORD150Pro Automatic Door Operator System! This video presents a one-by-one real shot of all standard factory-supplied components of the product, including motor, controller, idle pulley, terminal switch, hanger, toothed belt, left/right belt brackets, stopper, fastenings, warning stickers, as well as a full set of supporting documents such as installation manual, product certification and warranty card. Every accessory is shown in clear detail with complete original authentic configuration. It provides a clear accessory reference for subsequent installation, construction and maintenance, suitable for automatic door installation scenarios such as commercial stores, office spaces and public buildings!

Technical data

Door leaf	Single leaf	Double leaves
Weight of door leaf	Max.150 kg	Max. 2x120kg
Width of door leaf	DW=750-1600mm	DW=650-1250mm
Width of door opening	W=1450-3100 mm	W=2500-5000mm
Method of Installation	Surface Installation
Supply power voltage	AC 110-220V±10%, 50/60 Hz
Opening Speed	150-460mm/s (adjustable)
Closing Speed	130-460mm/s (adjustable)
Door hold-open time	0-8s (adjustable)
Manual open/close force	<40N	<50N
Motor	DC 24 V,60-70W(DC, brushless)
Working Environment temperature	-20℃~50℃
