| Electrical data | Door leaf running speed |
| Power supply voltage: Ac220V + 10%,50-60Hz2A | Opening speed:150~460mm/s |
| Rated voltage: 100W | Closing speed: 150~460mm/s |
| Opening width | Environment condition |
| Double sliding door: 650~1250 | Temperature range:-20'C~+50 °C |
| Single sliding door:750~1600 | Humidity range:< 85% relative humidity |
| Door leaf weight | |
| Double opening sliding door: max.2 x 250KG | |
| Single sliding door: max.1 x300KG |
Key Selling Points:
Exceptional Load Capacity: Handles up to 2x250kg, perfect for heavy door leaves.
Quiet Operation: Imported nylon lifting wheels and shock-absorbing tracks significantly reduce noise.
Powerful & Stable: High-power DC brushless motor ensures 24/7 reliable performance.
Built to Last: European-style mechanical components and thickened aluminum alloy track for extended lifespan.

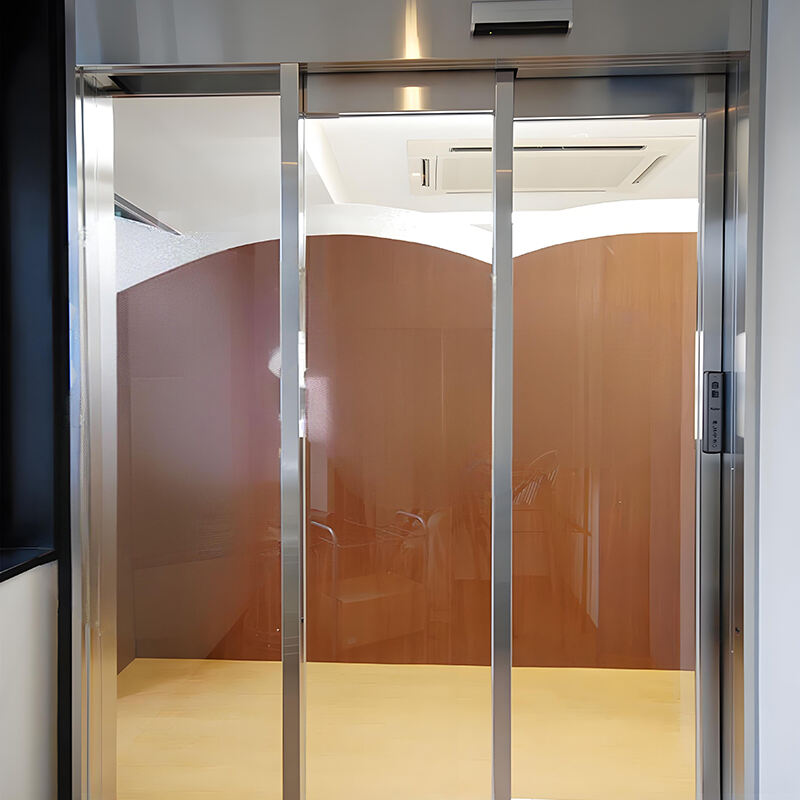

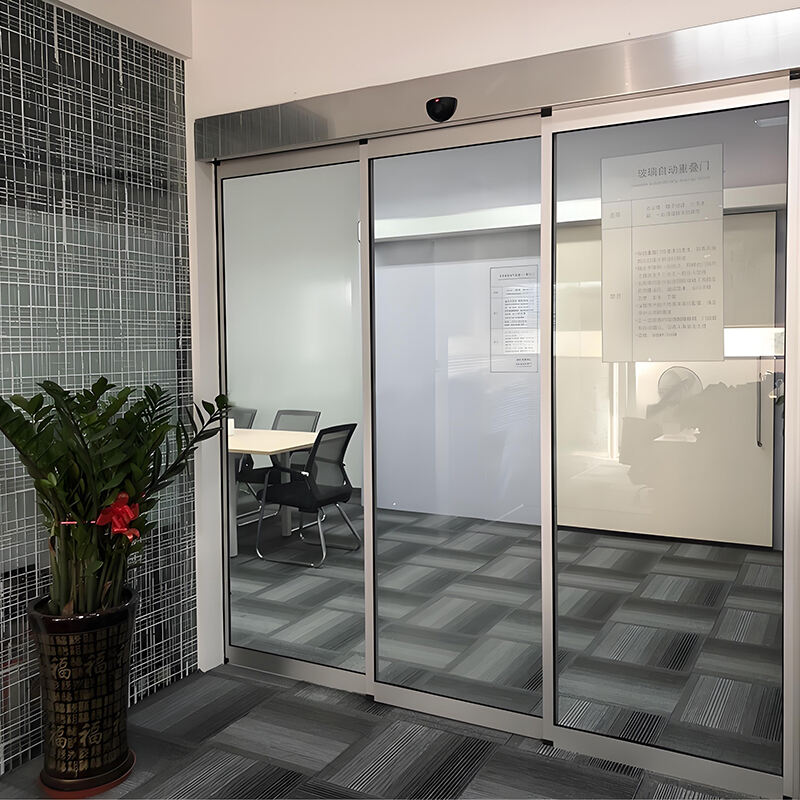

The OUTUS ORD-250 Automatic Overlapping Door Unit integrates modern industrial design with a reliable power core. It is specifically engineered for high-traffic pedestrian and vehicle passageways. Whether it's a large glass facade entrance, a heavy-duty factory workshop gate, or a channel requiring efficient management in a logistics warehouse, it delivers outstanding performance.
The unit utilizes a globally trusted high-power DC brushless motor, paired with precision-engineered European-style mechanical components, guaranteeing long-term operational stability. The combination of imported high-strength nylon lifting wheels and thickened aluminum alloy tracks equipped with damping strips not only provides excellent load-bearing capacity but also minimizes operational noise, enhancing the comfort of the environment.
This model has passed multiple rigorous tests. It is easy to install and maintain, making it the ideal choice for commercial and industrial settings that prioritize efficiency and durability.
| Door frame material | aluminum alloy |
| Aluminum alloy thickness | 2mm |
| Glass material | transparent tempered glass |
| Glass thickness | 8-12mm |
| Aluminum alloy frame color | black, electrophoretic white, gray, brown, etc |
| Glass options | insulating glass, laminated glass, double-layer glass, dimming glass |
