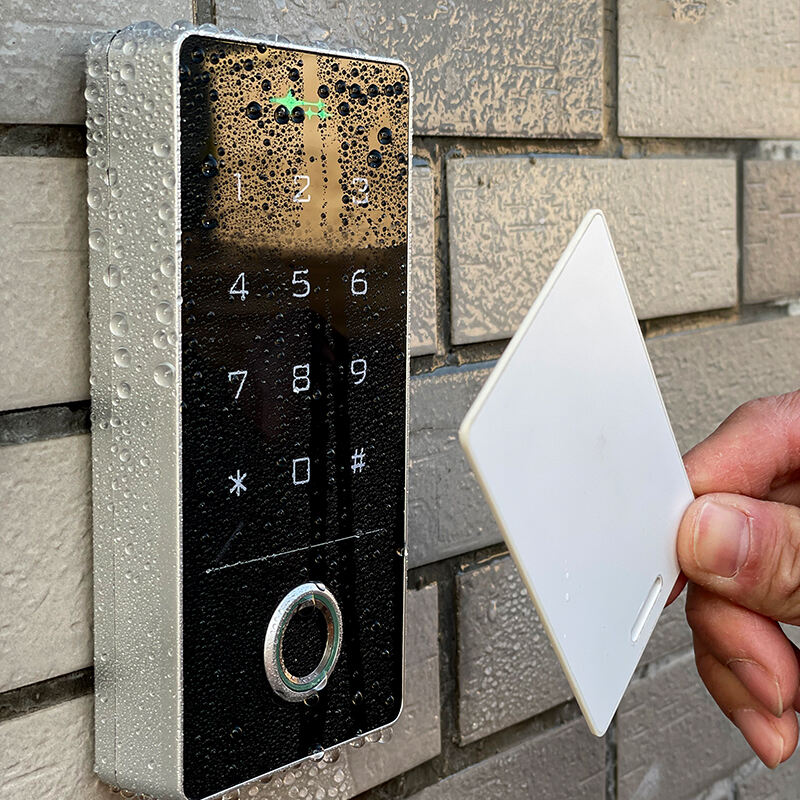

Smart Fingerprint Keypad Reader Access Control Machine for Automatic Door

Smart Fingerprint Keypad Reader Access Control Machine for Automatic Door

✔  Card Type:1.Read 125KHz EM Card and HID Card (Optional)

                         2.Read 13.56MHz Mifare card and CPU card (Optional)

✔  Keypad Characteristic:Metal backlight keypad

✔  Output Way:Contain reader mode, the transmission format could be adjusted by user

✔  Access Way:Support seven access ways

✔  Admin Card:Support admin add card and admin delete card

✔  User Capacity:10,000 card users and 600 fingerprint users

  • Products
  • Technical Data
  • Downloads

Product description

This series’product is a new generation of multi-function standalone access control. It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. It contains reader mode and standalone access control mode etc.. It’s widely applied to different occasions, such as office, residential communities, villa, bank and prison etc..

Smart Fingerprint Keypad Reader Access Control Machine for Automatic DoorSmart Fingerprint Keypad Reader Access Control Machine for Automatic Door

Authentication

  • 37e065c38b4547585a484da1fa9f8507_05f76470e0be25c47b9367570f6a7298fedfae6bbcf30ef6eb8529be79782d20.png
  • b5f393b269bf5e8d51b6e89c1c528ec7_d65c8bab529ec652803e5cb9bbb8fd48c9279075a1e028d0508739ab930a9c02.png
  • c7ca8fef69012b145ed5d14d3d7e4cde_8e984a55faaca405c6dc85016fe450b41332f8326da4eb81ca7679fd4ec4133d.png
  • fe82f6e36e5d684b7ac8aefe73f581a4_e7a0f5dbc3d83b3d06500f44462cb9cd20e66a2cc24e37f5c69e826f0dcb892f.png
  • d40f02898fd60c201144619c3edae6f9_c83e84ecffe0795637634b8890d67745dcf7dae738e879364cc08e105f0c26d9.png

Technical data

Operating Voltage: DC 12-24V
Operating Current: ≤100mA
Operating Humidity: 0%~95%
Standby Current: ≤35mA
Operating Temperature: -40℃~60℃
Access ways: Fingerprint, card, code, or multiple

Downloads

TF1 Operation Instructions
