OUTUS Automatic Sliding Door Mechanism Electric 200KG Motor For Villa

OUTUS Automatic Sliding Door Mechanism Electric 200KG Motor For Villa

✔  Power supply voltage: Ac220V ± 10%, 50-60Hz 2A

✔  Heavy equipment for commercial use

✔  Door opening and closing speed is adjustable from 200mm/s to 460mm/s

✔  Door leaf weight:Double opening sliding door: max.2 x 150KG,Single sliding door: max.1 x 200KG

✔  Intelligent sensor opening and closing

✔  Full scene adaptation

✔  One-year warranty

✔  Easy installation

✔  Germany Dunkermotoren Motor

  • Products
  • Technical Data
  • Downloads

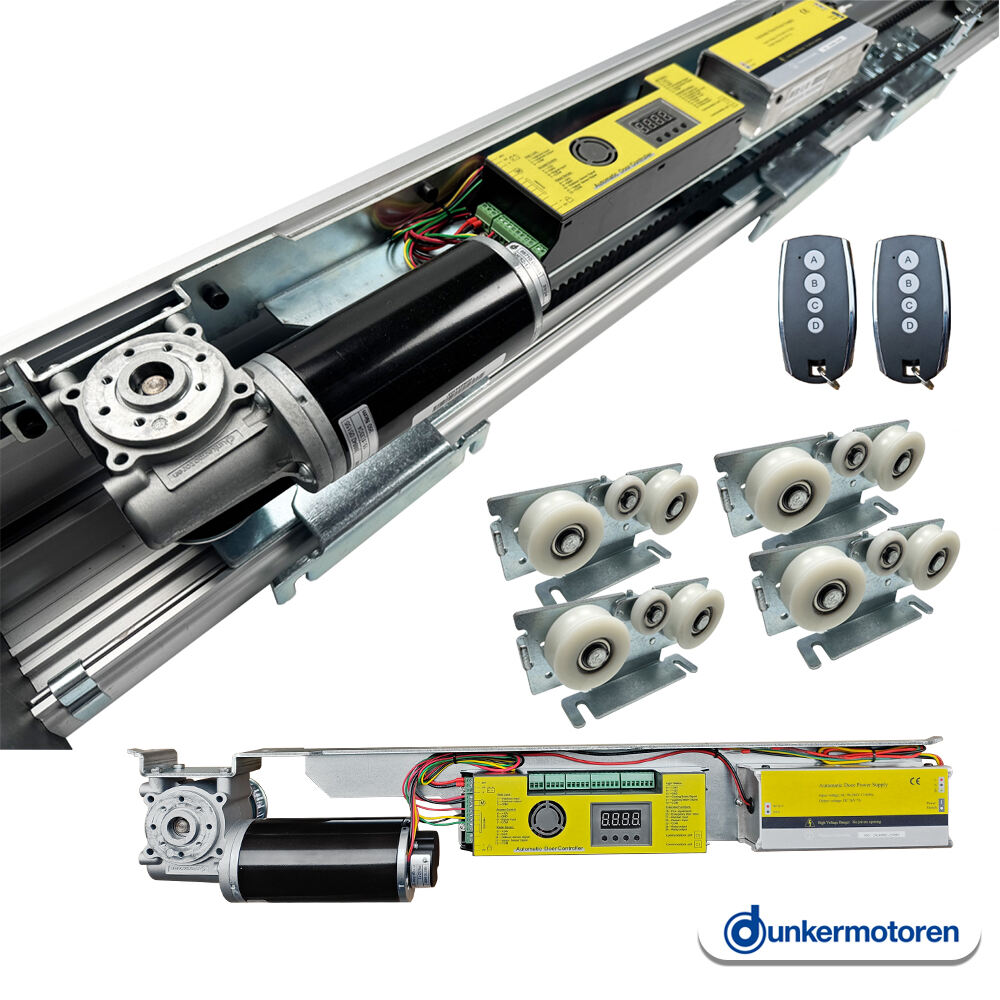

Product description

▪ Load-bearing capacity of 300kg, high power, motor 100w

▪ Motor comes from dunker GR63*55

▪ It has the function of stopping at any position, you can use the remote control to make it stop and start at any position

▪ It has a door opening protection function, if someone stands behind the door, the door will recognize it (this is a very important function)

OUTUS Automatic Sliding Door Mechanism Electric 200KG Motor For VillaOUTUS Automatic Sliding Door Mechanism Electric 200KG Motor For Villa

Authentication

  • 37e065c38b4547585a484da1fa9f8507_05f76470e0be25c47b9367570f6a7298fedfae6bbcf30ef6eb8529be79782d20.png
  • b5f393b269bf5e8d51b6e89c1c528ec7_d65c8bab529ec652803e5cb9bbb8fd48c9279075a1e028d0508739ab930a9c02.png
  • c7ca8fef69012b145ed5d14d3d7e4cde_8e984a55faaca405c6dc85016fe450b41332f8326da4eb81ca7679fd4ec4133d.png
  • fe82f6e36e5d684b7ac8aefe73f581a4_e7a0f5dbc3d83b3d06500f44462cb9cd20e66a2cc24e37f5c69e826f0dcb892f.png
  • d40f02898fd60c201144619c3edae6f9_c83e84ecffe0795637634b8890d67745dcf7dae738e879364cc08e105f0c26d9.png

Technical data

Input Power 26V DC, 180W
Standby power consumption 8W
output power Max. 250W
passive contact (250VAC, 30VDC) Max, 10A
Input Contacts NPN input or passive input (e.g. relay)
Operating range <5000mm
Ambient temperature and -20 - 60°C;85% RH, no condensation

Downloads

ORD-500pro
