OUTUS ES200 Door Controller – 6 Digital Inputs 200KG -20°C to 70°C

1. Industrial-Grade Modular Design, High Expandability：Combination of main module and expansion module, supporting two-door linkage/synchronous operation, easily adapting to single/double leaf doors and multi-scenario door control needs;

2. Full Peripheral Interface Integration, One-Stop Compatibility：Seamless connection with radar, safety light barrier, infrared sensor, electric lock, backup power, emergency stop switch, no additional adapter accessories required;

3. Visual Parameter Regulation, Precise & Flexible：7-segment display unit + multi-key operation, 0-75cm/s multi-gear adjustable opening/closing speed, free setting of operation mode and backup power mode;

4. Multiple Fault Protection, Safer Operation：Built-in protection for motor overcurrent, door jamming, sensor failure and backup power failure, combined with emergency stop switch interface, fully protecting door control safety;

5. Intelligent Fault Diagnosis, Zero-Threshold Maintenance：Supports real-time fault code display and storage of 10 historical faults, clear fault causes, quickly locate problems and reduce maintenance costs;

6. Standardized Terminal Definition, Easy Installation：Clear electrical terminal identification and standardized wiring scheme, professional electricians can quickly complete wiring and equipment connection;

7. Multi-Status Indicator Lights, Visual Operation：Multi-gear LED indicator lights for safety sensors, motors, backup power, etc., one-click visualization of door operation status and equipment faults;

8. Wide Adaptation to Motor Types, High Compatibility：Supports a variety of motors such as GR63x25/GR63x55, adapts to incremental encoders, meeting the power needs of different door bodies.

Products
Technical Data
Downloads

Technical data

Technical Parameter	ES-200
Height	150 mm
Depth	180 mm
Opening and closing force	Max 150N
Opening speed (incremental setting)	10-70 cm/s
Closing speed (incremental setting)	10-50 cm/s
Hold-open time	0-180sec
Mains voltage, frequency	80-230 V, 50/60HZ
Power consumption	250W
International protection	IP 20

Product description

The ES200 Automatic Door Motor Controller is a professional industrial-grade door control core component, specially designed for various commercial and industrial automatic door systems, complying with standardized electrical construction specifications and adapting to a variety of door operation scenarios. Adopting a modular design, the product integrates a main control module and an expansion module, supporting seamless connection of all types of peripherals such as radars, safety light barriers, infrared sensors, electric locks, backup batteries and emergency stop switches. It is equipped with clear terminal definitions and standardized wiring schemes, which can be installed and debugged only by professional electricians. Built-in 7-segment display unit and multi-gear status indicator lights, it supports visual parameter adjustment, real-time fault code display and historical fault storage. Core parameters such as opening/closing speed, operation mode and backup power working status can be flexibly set. Combined with a complete protection mechanism for overcurrent, jamming and sensor failure, it operates stably and is easy to maintain. It is a highly adaptable control solution for automatic door systems in shopping malls, office buildings, industrial plants, public passages and other places.

Authentication

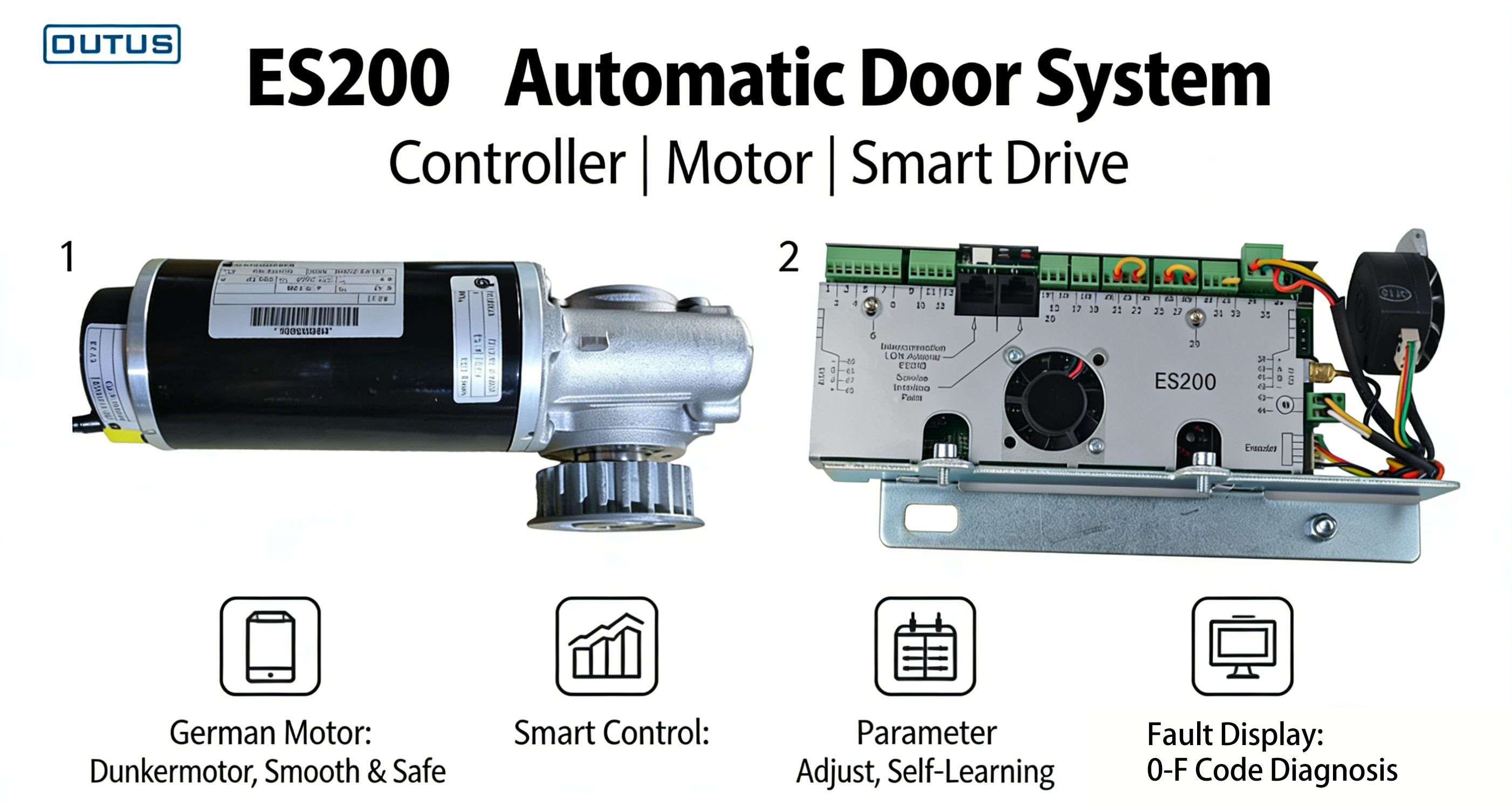

ES200 Door Control Controller Exclusive Adapted Motor - Specification & Performance Real Shot Display

This video is a HD real-shot display of the exclusive adapted motors for the ES200 automatic door motor controller, comprehensively presenting the appearance, dimensions, interface specifications and core performance of motors such as GR63x25/GR63x55 matched with the controller. The video details the encoder connection port, power supply wiring terminal and installation fixing structure of the motor, intuitively presents the standardized connection method between the motor and the ES200 controller, and simultaneously demonstrates the no-load operation state of the motor, reflecting the low-noise and smooth operation characteristics. All displayed motors are original adapted models for the ES200 controller, accurately matching the current and torque requirements of the controller, perfectly compatible with core functions such as opening/closing speed adjustment and overcurrent protection, ensuring seamless connection with the ES200 controller and door body system, and providing a standardized power solution for automatic door installation and transformation. Follow us for professional skills on docking installation, parameter matching, commissioning and calibration of ES200 controller and motor!
