Laser Safety Curtain Sensor for Auto Door - Anti-Pinch Human Body Infrared Detector

This laser safety curtain sensor is an intelligent anti-pinch safety accessory specially designed for various doors, adopting TOF (Time-of-Flight) detection technology and equipped with 890nm Class I eye-safe infrared laser, which can accurately detect moving or stationary objects to achieve anti-pinch and anti-collision protection for doors. The product supports 0-25° adjustable detection angle and 7-level adjustable scanning range from the ground, comes standard with normal/stable dual working modes to resist interference from complex environments such as floating dust and rainy days, and is compatible with AC/DC12~30V wide voltage power supply. It has multiple optional sizes and supports parallel connection of multiple units, with a durable aluminum alloy+ABS+PC shell and simple installation and debugging. Assisted by positioning red dots for calibration, it is widely applicable to various doors such as automatic doors and industrial doors, providing all-round safety protection for door operation.

Products
Technical Data
Downloads

Product description

1. Class I eye-safe laser, 890nm infrared no harm, safe to use

2. Core TOF technology, ≤50ms ultra-fast response, accurate detection of moving/stationary objects

3. Strong anti-pinch & anti-collision, trigger door protection instantly when sensing human/objects

4. 2 working modes switch freely, stable mode resists floating dust/rain, suitable for complex environments

5. 7-level scanning + 0-25° adjustable angle, flexible calibration above 20CM from the ground

6. Positioning red dot assist, one-click self-learning for installation & debugging, ultra-easy operation

7. Wide voltage support, AC/DC12~30V, compatible with all door controller power supplies

8. Multiple units parallel connection, multi-size optional, fit different door specifications

9. Sturdy aluminum alloy shell, -20℃~60℃ wide temperature working, super weather resistance

10. Relay NO/NC dual output, flexible wiring, perfectly match various door control systems

Authentication

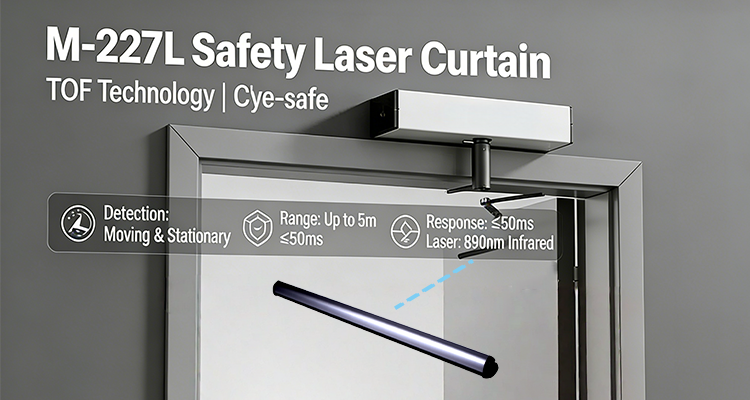

Auto Door Laser Safety Curtain - Anti-Pinch Function Test, No More Pinched Fingers

This laser anti-pinch curtain sensor maximizes the safety of your automatic door! 🚪 This real video shows the anti-pinch function test with real person : the sensor is accurately installed on the automatic door, after starting operation, when a person This video provides a comprehensive product showcase of the M-227L laser safety light curtain sensor. From product structure, core parameters, installation and debugging, to troubleshooting and multi-device integration, it breaks down the functions and usage of this industrial-grade laser safety detection sensor from all angles! The video sequentially displays the product's external components and explains in detail the core technical parameters such as the TOF time-of-flight detection principle and 890nm infrared laser.

Technical data

Detection principle:	Time-of-Flight technology(TOF)
Light medium:	890nm infrared laser
Laser category:	ClassI eye-safe laser
Detection diameter:	100mm light spots(2.8meters height)
Detection reaction time:	s50ms
Detection range:	away from the ground large than 20CM
Detection angle:	0-25° adjustable
Installation height(max):	5m(fixed position), 3.5m(moving door leaf)
Working temperature:	-20°C~60°C
Working voltage:	AC/DC 12-30V
Standby current:	50mA(12V power)
Action current:	90mA(12V power)
Signal output:	Relay NO or NC
Trigger mode:	Moving or stationary
Function instruction:	LED indicator, standby: BLUE, detection: RED
Shell material:	Aluminum alloy, ABS, PC
Sensor dimension:	310x31x20mm, 620x31x20mm, 750x31x20mm,900x31x20mm, 1200x31x20mm(optional)
