| Adjustment Angle | 0º ~ 180º (longitudinal) |
| Detection Speed | 5cm/s ~ 25km/s |
| Detection Area | 3.0m3.5m (at 2m height, 30º tilt); 6.5m8.5m (at 9m height) |
| Operating Voltage | 12~28VAC, 12~36VDC |
| Operating Current | Maximum 75mA |
| Power Frequency | 50Hz |
| Temperature Range | -30℃ to +60℃ |
| Relative Humidity | 0% to 95% (no condensation) |
| Protection Level | IP65 |
| Relay Output: Maximum 48VAC/DC | Maximum current 1A |
| Overall Dimensions (including bracket) | 162mm x 110mm x 65mm |
| Cable Length | 7m |
| Weight | 400g |

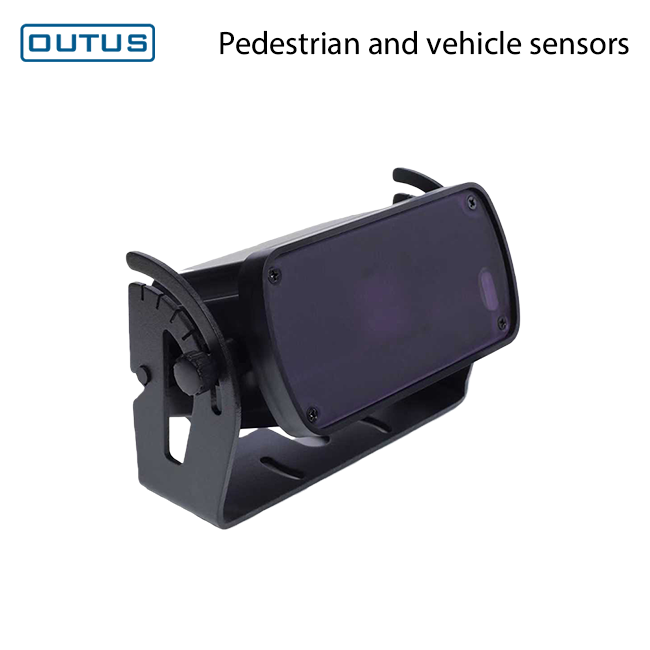

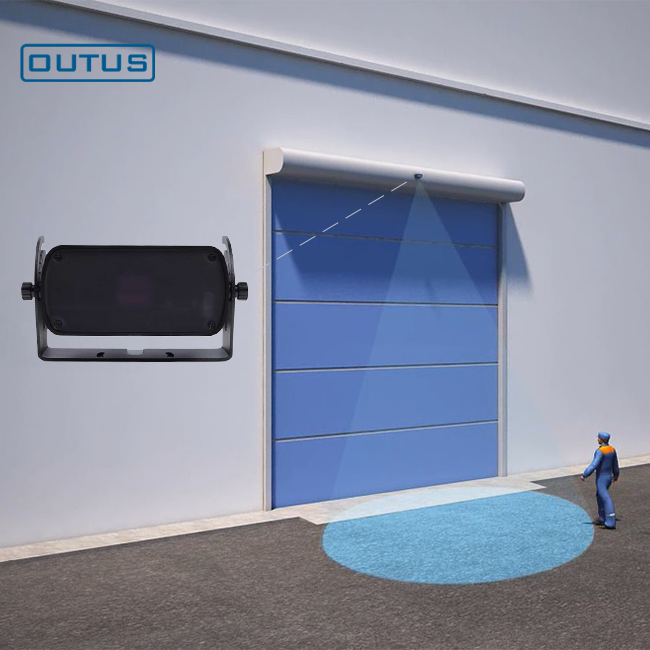

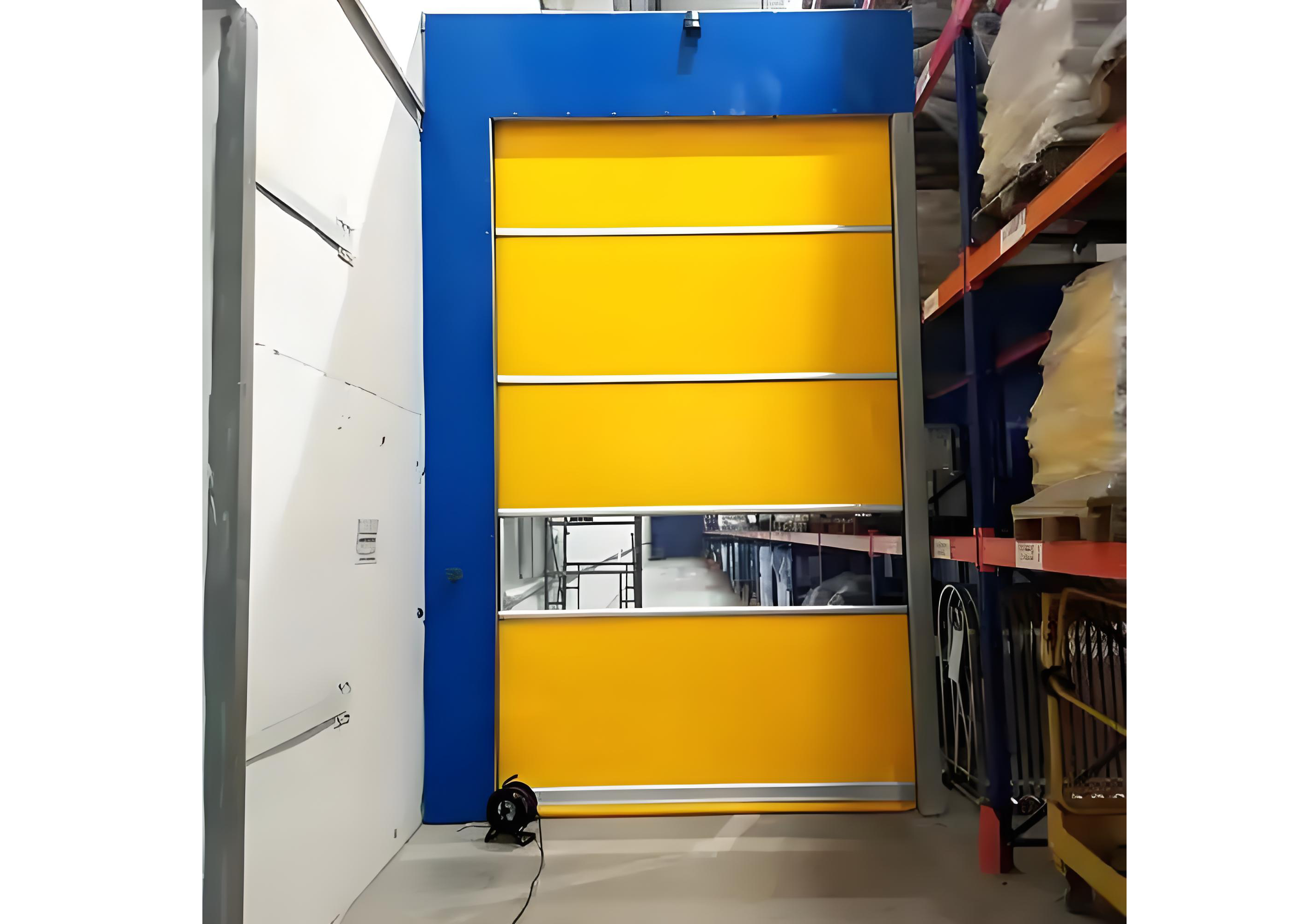

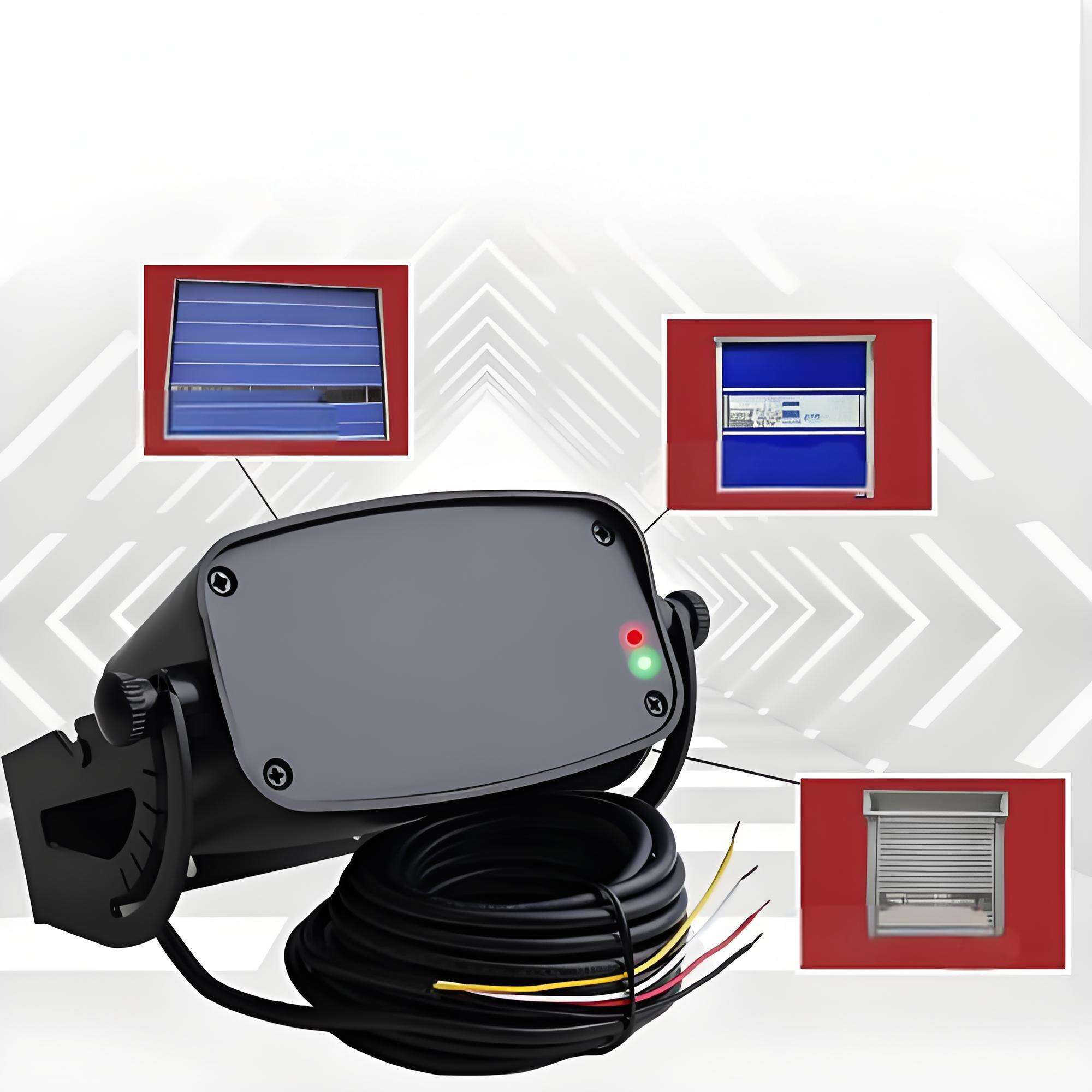

This high-performance vehicle-pedestrian separation radar is specifically developed for industrial doors, garage doors, cold storage doors, barriers, and other industries. It can distinguish between vehicles and pedestrians and activate the corresponding output relays as needed. It also has the ability to identify and filter vehicles or pedestrians moving laterally.
Separates pedestrians/vehicles, controls relays respectively for industrial gates.
Filters horizontal-moving targets, avoiding false triggers effectively.
Wide detection height (2.0-9.0m) and adjustable area for diverse scenes.
-30℃~+60℃ temp range & IP65 rating, suits harsh environments.
Supports remote setting, easy parameter adjustment without complex ops
