OUTUS ORD260 Medical Hermetic Door Controller – GMP Firmware OR & ICU

1. Medical-Grade Airtightness & Stable Sealing：U-shaped guide rail arc groove + special rubber sealing strip, the door is airtight throughout opening and closing, meeting the sealing requirements of operating rooms/clean rooms;

2. Brushless Motor Drive & Stable Quiet Operation：DC brushless motor with microprocessor control, smooth and low-noise opening and closing, no mechanical noise disturbs the medical environment, long motor life and low maintenance;

3. Fully Adjustable Parameters & Strong Adaptability：Stepless regulation of opening/closing speed (200-500mm/s) and door hold-open time (0-9s), single/double leaf optional, adapting to the passage needs of different medical spaces;

4. Full Compatibility with Medical Peripherals & Rich Functions：Integrated foot inductive switch, safety beam, access control, electric lock, supporting external backup battery, meeting medical functional needs in one stop;

5. Multiple Safety Protections & Safer Medical Use：Automatic protection for overload/excessive resistance, anti-pinch and anti-collision, manual push-pull when power off, fully protecting the passage and emergency safety of medical places;

6. Wide Environmental Adaptation & Stable Durability：AC110~220V±10% wide voltage, -20℃~+50℃ wide temperature operation, adapting to the use environment of different hospital areas;

7. Professional Structural Design & Standard Installation：Rail-type surface installation, the door body is closely attached to the frame, adapting to the professional construction process of medical engineering, and the airtight effect is better after installation;

8. Certified Guarantee & Reliable Quality：Compliant with ISO 9001:2015 quality management system certification, medical-grade process standards, durable and suitable for high-frequency use in hospitals.

Products
Technical Data
Downloads

Technical data

Door mode	Single leaf	Two leaf
Door leaf weight	1 x 150kg	2 x 100kg
Clean open width	900～1500mm	1200～1800mm
Clean open height	2000～2400mm	2000～2400mm
Installation mode	Surface mounting
Supply power voltage	AC 110~220V +/-10%, 50/60Hz
Opening speed	200～500mm/s adjustable
Closing speed	200～500mm/s adjustable
Hold-open time	0～9 s adjustable
Manual force	< 100N
Power consumption	< 150W
Working temperature	-20℃ ~ +50℃
Air-tight ability	stable,reliable

Product description

ORD260 Hermetic Medical Automatic Door is a professional airtight door specially designed for medical clean scenarios such as hospital operating rooms, clean rooms and wards. Adopting U-shaped guide rail arc groove structure + special rubber sealing strip for the door body, it achieves stable airtightness during opening and closing, and is equipped with a brushless motor system controlled by a high-precision microprocessor for smooth, low-noise operation and fully adjustable parameters. The product supports single/double leaf design, adapting to the passage needs of different medical spaces, and integrates multiple medical essential functions such as foot inductive switch, safety beam, access control, electric lock and backup battery. It has multiple safety protections such as overload, anti-pinch and anti-collision, and can be manually pushed and pulled when power off to meet emergency needs. With wide voltage adaptation and wide temperature working characteristics, it can adapt to the use environment of different hospital areas, taking into account airtight reliability, operation intelligence and passage safety, and is the preferred door body solution for medical clean places.

Authentication

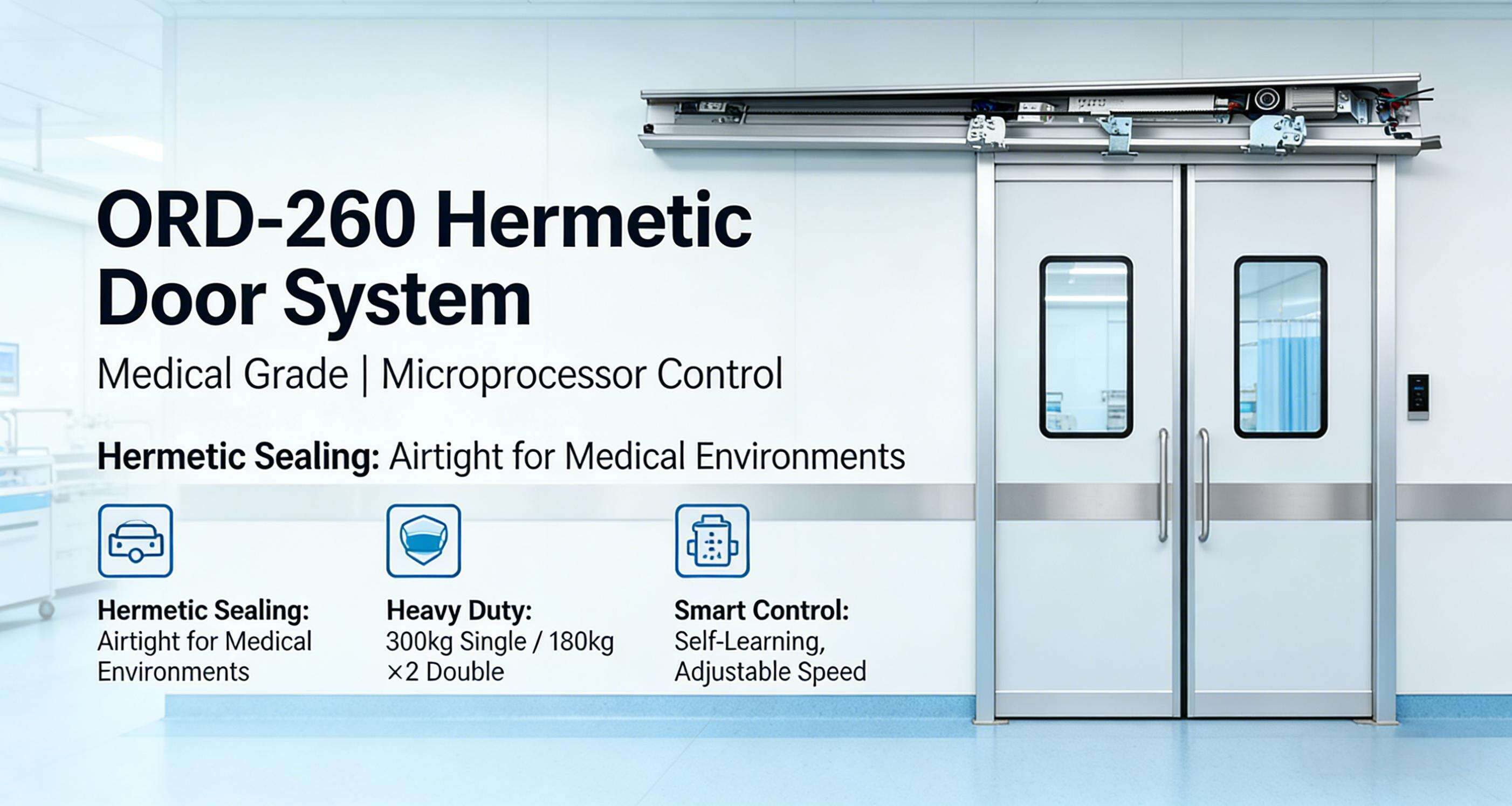

ORD260 Hermetic Medical Automatic Door - Real Shot of Operation & Airtight Effect in Operating Room

This video is a real shot of actual operation & airtight effect of the ORD260 Hermetic Medical Automatic Door in the operating room scene, showing the complete operation status of the door including fast opening and slow closing, buffer braking, door hold-open and auto closing throughout the whole process, and intuitively presenting the smooth and low-noise characteristics of the door opening and closing, as well as the medical-grade airtight effect linked with the rubber sealing strip. The video simultaneously demonstrates the intelligent linkage of the foot inductive switch and safety beam, the different operation modes of single/double leaf doors, adapting to the passage needs of various medical scenarios such as operating rooms, clean rooms and wards, and also shows the emergency function of manual push-pull when power off and the actual performance of multiple safety protections. With stable sealing performance, intelligent operation control and comprehensive safety protection, ORD260 Hermetic Medical Automatic Door has become a professional choice for medical clean places! Follow us for more professional skills on product installation, commissioning and maintenance.
