Wireless Touch Switch for Automatic Door - Touch Sensing Open Door

This wireless touch switch is an intelligent touch accessory specially designed for automatic door control systems, featuring touch sensing operation and wireless receiving & transmitting design. It supports self-learning code pairing and can store up to 20 transmitter codes, with free switching between momentary (M) and latching (L) dual output modes, and also can realize the normally open function in momentary mode. The product is compatible with DC12~30V wide voltage power supply, the receiver has a transmission distance of over 30 meters without obstacles and a receiving sensitivity of -95dbm. The transmitter has low power consumption and long battery life, with a compact and thin body, easy installation and operation. It is widely suitable for various automatic door scenarios, and the automatic door can be opened with one touch, greatly improving the convenience and flexibility of using automatic doors.

Products
Technical Data
Downloads

Product description

1. Dual output modes: M (1.5s momentary) / L (latching), one-touch switch for diverse auto door needs

2. Self-learning pairing: One-click match, stores up to 20 transmitter codes, easy operation

3. Long-range wireless: 30m obstacle-free, -95dbm high sensitivity, stable signal

4. Wide voltage support: DC12~30V, compatible with most auto door controllers

5. One-click code delete: 5s long press to clear all codes, no one-by-one deletion

6. M-mode normally open: 10s continuous touch to set, re-touch to release

7. Low power & long life: Transmitter standby ≤10μA, 300 days for 200 uses/day

8. Compact & easy to install: 86mm transmitter fits standard wall mounting positions

9. Sensitive touch sensing: Dedicated area, light touch to trigger, fast response

10. Stable contact performance: 1A 24VDC main contact, 1.5s precise momentary pull-in

Authentication

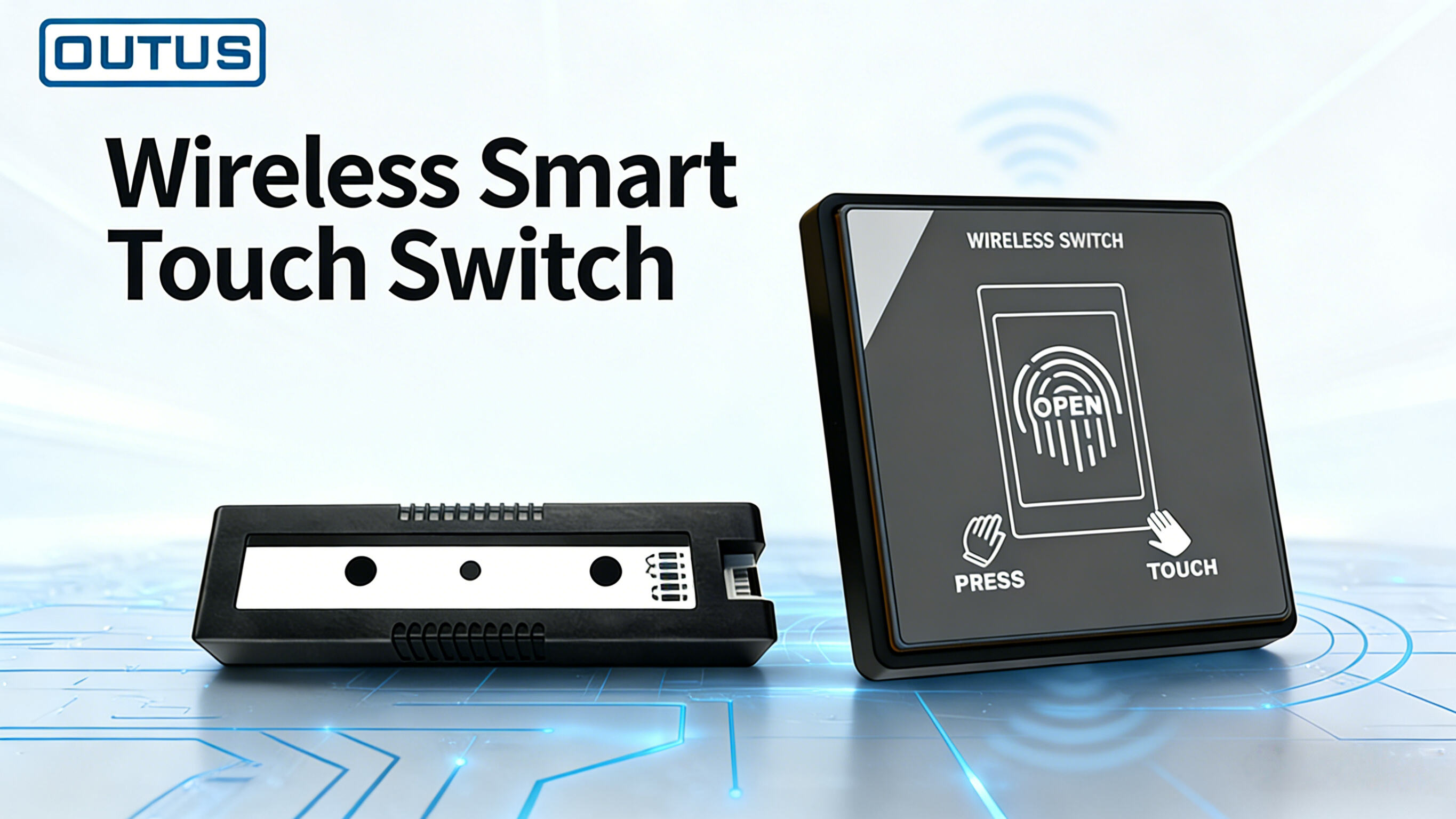

Touch Switch for Auto Door - Light Tap to Open, Easy to Install

Game-changing wireless touch switch for your automatic door! This real demo shows the ultra-convenient touch-to-open function: just a light tap on the sensing area, the receiver catches the signal in a flash, sends a precise 1.5s open command, and the auto door opens instantly with ZERO lag - the signal transmission is super stable! Comes with default momentary mode (ideal for daily use), and also supports latching mode, 30m long-range control, pairing up to 20 transmitters. It fits all auto door power supplies with DC12~30V wide voltage, features an 86mm compact body for direct wall mount (space-saving), and ultra-low power consumption for long battery life. Upgrade your auto door with this easy-to-install, super-sensitive touch switch - it’s a must-have for effortless auto door control!

Technical data

Wireless receiver
Power supply:	DC12~30V
Static current:	34mA(DC12V power supply)
Action current:	62mA(DC12V powe supply)
Main contact capacity:	1A 24VDC
Contact suction holding time:	1.5 Seconds
Product size:	110(L)x30(W)x15(H)mm
Transmitter
Power supply:	3V (2pcs 3V cell batteries in parallel)
Standby current):	s10μA
Emission current:	7.5mA
Life of batery:	200 times per day, total of about 300 days
Receiver sensitivity:	-95dbm
Emission distance:	Over 30 meters in no obstacles area
Product size:	86(L)x86(W)x14(H)mm
