Household Commercial Electric Chain Window Opening Device Wifi Motorized Casement Window Opener

This is an electric small chain window opener, designed for automatic opening and closing of various windows. It adopts a DC power supply mode, compatible with AC100~230V power input (power supply needs to be matched). The product offers two opening stroke specifications: 300mm and 500mm, with a thrust of 400N and an operating speed of 10mm/S. It can stably adapt to the ambient temperature of -20℃~+75℃, with an IP32 protection rating.

Its core functions include obstacle stop and silent operation. The service life is tested to be more than 10,000 times. It has a compact shape (main body length 180mm) and the installation method is suitable for common window types such as top-hung windows. It is applicable to the automatic window control in residences, office buildings, factories and other places, to meet the intelligent window opening needs in scenarios such as ventilation and smoke exhaust.

Products
Technical Data
Downloads

Technical data

Product Model	Working Voltage	Push-Pull Force	Working Current	Opening Stroke	Pushing Speed	Operating Temperature	Protection Grade
XC-XLT300D	DC24V±10%	400N	1.0A	300mm	-10mm/S	-20℃~+75℃	IP32
XC-XLT300D	DC24V±10%	400N	1.0A	500mm	-10mm/S	-20℃~+75℃	IP32

Product description

Reliable Safety Protection: Equipped with obstacle stop function, it automatically powers off when encountering obstacles during operation, avoiding equipment damage or window deformation, and is safer to use.

Silent Operation Experience: Adopts silent design, low noise during operation, no interference with indoor environment, suitable for quiet scenarios such as residences and offices.

Long-Life Durability: Passed more than 10,000 times life test, stable structure and durable components, no frequent maintenance and replacement required for long-term use.

Multi-Specification Adaptation: Offers two opening strokes of 300mm and 500mm, with a thrust of 400N, which can meet the opening and closing needs of windows of different sizes.

Strong Environmental Adaptability: Supports wide temperature operation of -20℃~+75℃, IP32 protection rating, suitable for most indoor and outdoor window installation scenarios.

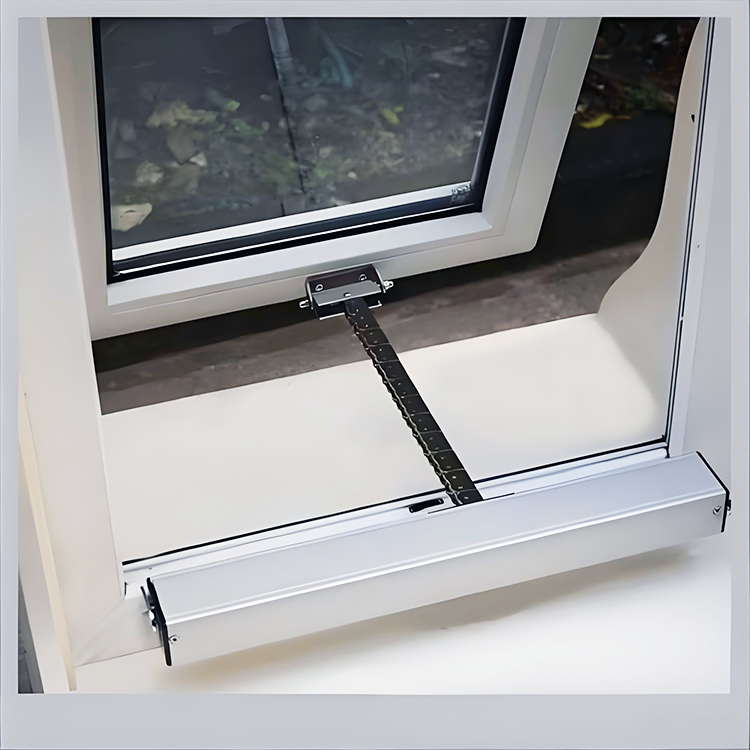

Convenient Installation: Compact shape, suitable for common window types such as top-hung windows, simple wiring, and quick installation and commissioning.

Authentication

Electric Small Chain Window Opener Test: Full Process Demo of Chain Expansion + Automatic Window Opening/Closing

Immerse yourself in the expansion operation of the electric small chain window opener! The video clearly shows: After the device is started, the chain extends slowly to push the window open smoothly; when closing the window, the chain contracts at a constant speed, and the window closes accurately, the whole process is smooth and noiseless. The product adopts silent design, has a service life of more than 10,000 times, and can run stably in wide temperature environments. Its small size is suitable for most window types, and it is a practical tool to realize intelligent window control!
