OUTUS ORD180 Door Controller – RS-485 BMS 20–100% Speed 1M Cycles

1. Wide Speed Regulation & Precise Adjustment：Stepless speed regulation for opening (15-50cm/s) and closing (13-50cm/s), 0-20s adjustable door hold-open time, suitable for different passenger flow scenarios;

2. Brushless Motor Adaptation & Stable Low Noise：Specially designed for DC24V/65W brushless DC motor, smooth and low-noise coordinated operation, longer motor service life;

3. Full-Dimensional Expansion & Rich Functions：Integrated interfaces for sensors, access control, two-door interlocking, safety beams, etc., support external connection of backup power/electric lock, fully adaptable to single and double leaf doors;

4. Rail Quick Installation & Professional Convenience：Rail-type card slot installation structure, accurately embedded in the automatic door guide rail, standard wiring, quick assembly and commissioning by professionals;

5. Safety Protection & Strong Anti-Interference：Equipped with automatic protection mechanisms for excessive resistance and overload, anti-electromagnetic interference, effectively avoiding potential safety hazards such as door collision and pinching;

6. Environmental Compatibility & Global Application：Working temperature of -20℃~50℃, adaptable to different climatic environments, wide voltage adaptability, meeting the power grid usage needs of different regions around the world;

7. Intelligent Adaptation & Simple Operation：Built-in code matching function, one-click code matching with remote control, flexible setting of door opening direction and auto/signal closing, convenient later commissioning.

Products
Technical Data
Downloads

Technical data

Model	series
Model	series
Door leaf	Single leaf	Double leaves
Door leaf weight	Max.250KG	Max.180KG×2
Door leaf width	DW=400-3000mm	DW=400-2000mm
Width of door opening	W=400-3000mm	W=400-2000mm
Installation method	Surface installation
Supply power voltage	AC 110-250V, 50Hz
Opening speed	15-50cm/s(adjustable)
Closing speed	13-50cm/s(adjustable)
Door hold-open time	0-20S(adjustable)
Manual thrust	<40N	<50N
Motor	DC24V,65W(DC,brushless)
Working environment temperature	-20℃-+50℃

Product description

The ORD180 Automatic Door Motor Controller is the core electrical control center of the 180 series automatic doors, specially designed for commercial and industrial automatic door systems. Equipped with high-precision microprocessor control technology, it accurately matches the DC24V brushless DC motor to realize intelligent regulation of the entire opening and closing process of the door body. Adopting a rail-type quick-install structure with standard wiring and easy installation, this controller integrates a full range of peripheral expansion interfaces for sensors, access control card readers, two-door interlocking, safety beams, backup power supplies, electric locks, etc., and is adaptable to the diversified usage needs of single/double leaf automatic doors. The product supports a wide range of speed and time adjustment, is equipped with a complete fault protection and anti-interference mechanism, and has a working temperature range of -20℃~50℃, which can adapt to power grids in different regions and complex usage environments. It provides a stable, safe and efficient control solution for automatic doors in shopping malls, office buildings, industrial plants and other places, taking into account installation professionalism and service durability.

Authentication

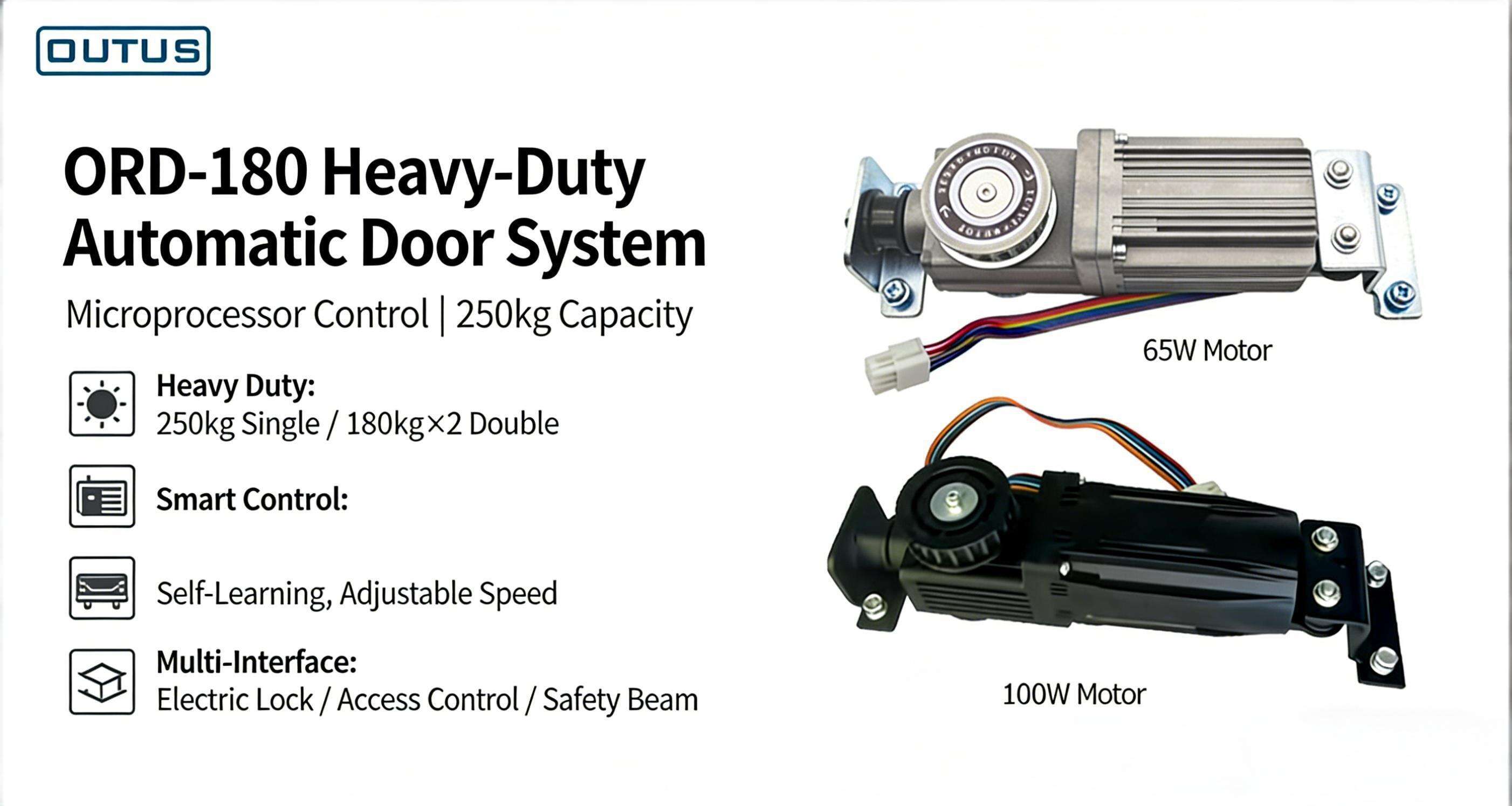

ORD180 Automatic Door Motor Controller - Real Shot of Door Actual Operation Effect

This video is a real shot of the actual operation effect of the ORD180 Automatic Door Motor Controller matched with the 180 series automatic doors, clearly showing the full-process operation status of the door body such as fast opening and slow closing, buffer braking, door hold-open and auto closing under the control of the controller, and intuitively presenting the core advantages of the product such as wide speed regulation, smooth operation, low noise and stability. The video shows different operation modes of single/double leaf doors respectively. The precise parameter adjustment of the controller makes the door body adapt to different passenger flow scenarios, and the linkage effect with sensors/access control is more in line with the actual use needs of commercial/industrial places. As the core control component of automatic doors, the ORD180 motor controller combines intelligent regulation and safety protection, and is the preferred main control equipment for upgrading, transforming and newly installing various automatic doors. Follow us for more professional skills on installation, commissioning and troubleshooting of ORD180 products!
