OUTUS ORD150Pro Commercial Sliding Door System - Wide Voltage for Convenience Store & Mall

1. High-Frequency Durable Operation: Optimized for high-frequency opening/closing, brushless motor works continuously without heating, no fault for long-term use

2. Anti-Pinch & Obstacle Rebound Safety: Buffer anti-pinch + obstacle rebound, protect customers & shopping carts, avoid supermarket passage accidents

3. High Flow Smooth Passage: Adjustable opening/closing speed, fits supermarket peak passenger flow, efficient passage without congestion

4. Wide Voltage Global Adaptation: AC110-220V universal, compatible with power supply of various supermarkets and convenience stores worldwide

5. High Load for Large Doors: 150kg for single leaf / 2×120kg for double leaves, easily bears large-width glass doors of supermarkets

6. Surface-Mounted Fast Installation: No embedding or grooving, fast construction for new store decoration & old door renovation

7. Emergency Power Failure Proof: Supports backup battery expansion, automatic opening when power off, ensuring supermarket emergency evacuation

8. Low Resistance Manual Operation: Manual thrust <40N, easy to push/pull in emergency, meeting supermarket fire protection requirements

9. Weather Resistant Stable Operation: -20℃~50℃ working temperature, stable use for both indoor and outdoor supermarket entrances

10. Multi-Function Security Expansion: Compatible with safety light curtain, access control, remote control, improving supermarket entrance management efficiency

Products
Technical Data

Technical data

Door leaf	Single leaf	Double leaves
Weight of door leaf	Max. 150kg	Max. 2x120kg
Width of door leaf	DW=750-1600mm	DW=650-1250mm
Width of door opening	W=1450-3100 mm	W=2500-5000 mm
Method of Installation	Surface Installation
Supply power voltage	AC 110-220V±10%, 50/60 Hz
Opening Speed	150-460mm/s (adjustable)
Closing Speed	130-460mm/s (adjustable)
Door hold-open time	0-8s(adjustable)
Manual open/close force	<40N	<50N

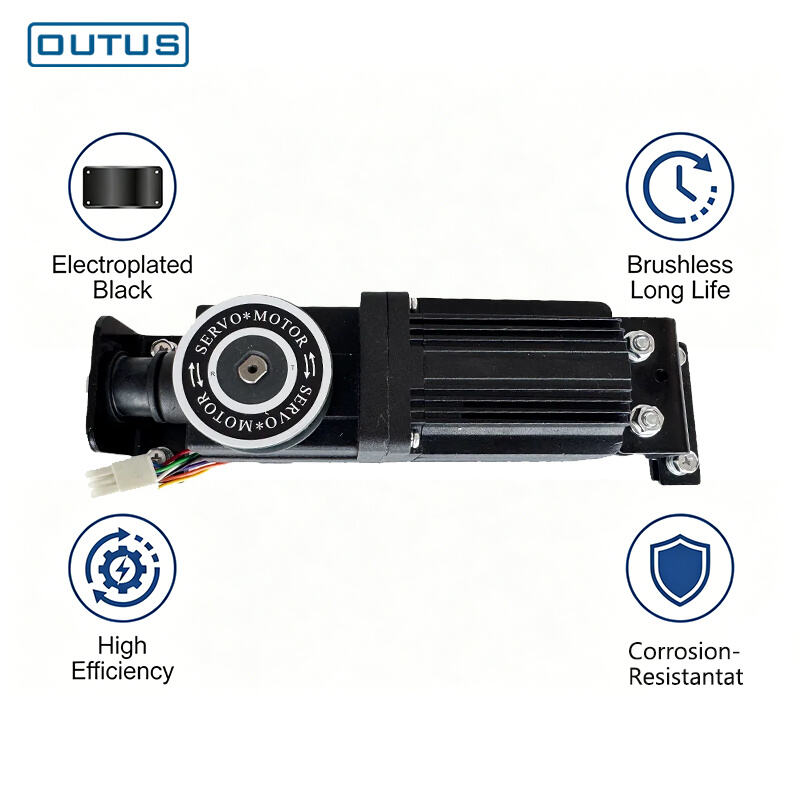

Motor	DC 24 V,60-70W(DC,brushless)
Working Environment temperature	-20℃~50℃

Product description

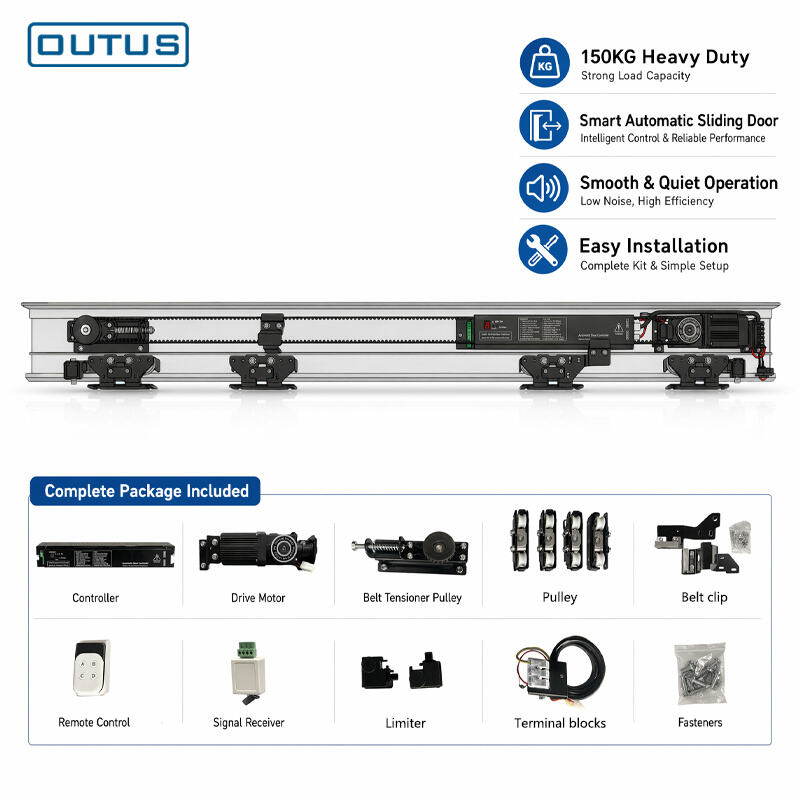

ORD150Pro Automatic Door Operator is a high-frequency durable sliding door drive system designed for supermarkets, convenience stores, malls and retail stores. Optimized for high-flow and high-frequency opening/closing scenarios of supermarkets, DC24V brushless motor is fatigue-resistant and long-life, no fault for continuous operation. Microprocessor control realizes anti-pinch buffer and obstacle rebound, maximizing passenger flow safety.

With 150kg load for single leaf and 2×120kg for double leaves, it adapts to large-area glass doors of supermarkets, with fast surface-mounted installation and AC110-220V wide voltage compatible with global supermarket power supply. Supports expansion of safety light curtain, remote control and backup battery, fearless of power failure and passenger flow peak, a durable and reliable choice for automatic doors of supermarket entrances.

Authentication

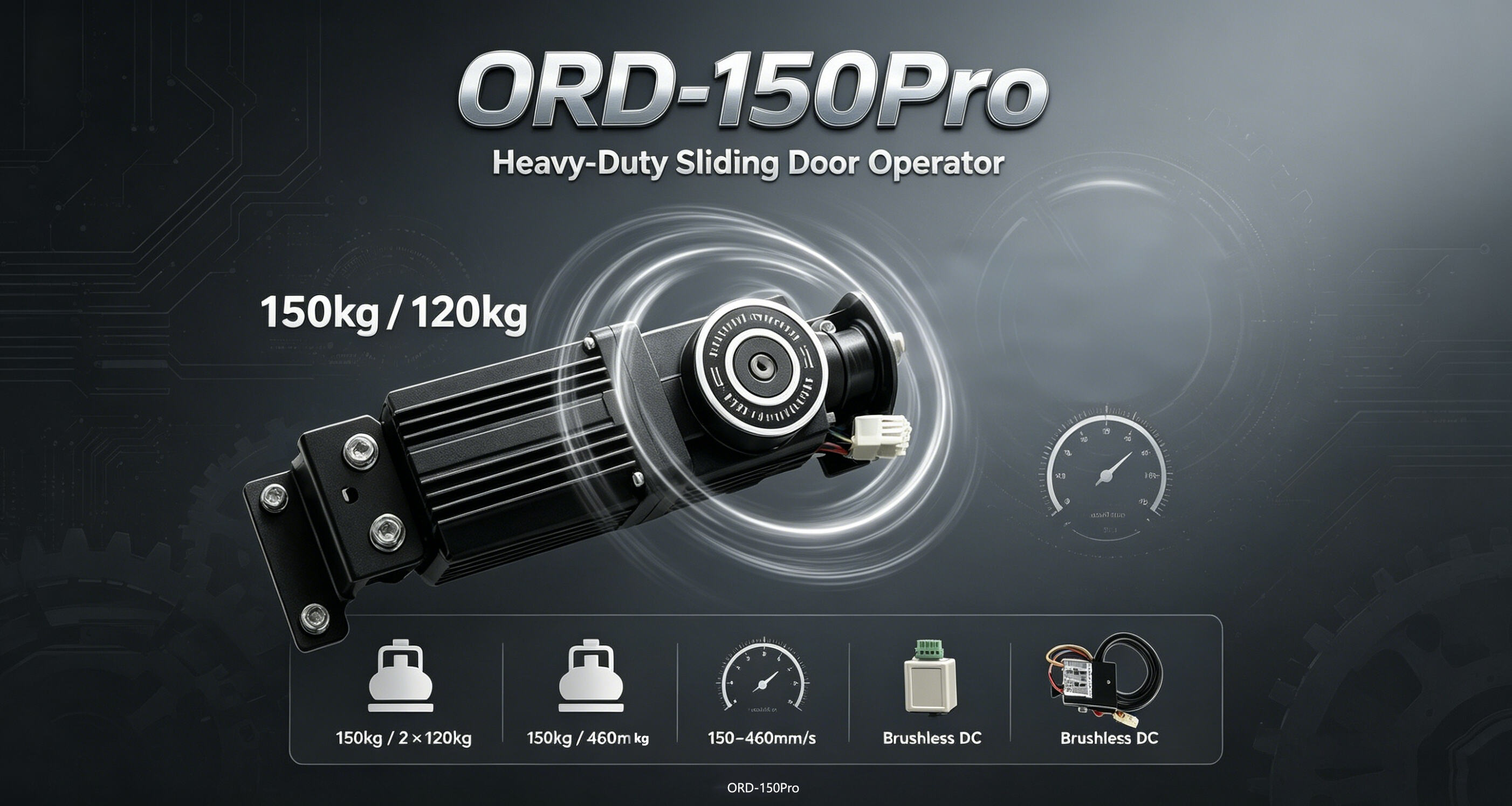

ORD150Pro Supermarket Automatic Door Demo - High-Frequency Open & Close for Store Entrance!

Here’s the open & close demo of ORD150Pro supermarket exclusive automatic door operator!

The video shows the full open/close process of supermarket entrance automatic door: high-frequency smooth opening/closing, anti-pinch buffer design protects shopping customers and carts, rebounds immediately when blocked to eliminate potential safety hazards. Opening/closing speed adapts to supermarket high passenger flow, efficient passage without crowding, brushless motor runs continuously without heating, extreme durability.

Wide voltage adapts to global supermarket power supply, fast surface-mounted installation, supports backup battery for emergency, reliable for supermarkets, convenience stores and mall entrances, a durable core solution for automatic doors in retail scenarios!
