IP67 Waterproof Laser Sensor - 10M Long Range Detection Door Anti-Pinch Detector

This laser safety sensor offers surface and concealed mounting options, specially designed for safety protection of various automatic doors. Equipped with TOF (Time-of-Flight) detection technology and 890nm Class Ⅰ eye-safe infrared laser, it can accurately detect moving and stationary objects to achieve anti-pinch and anti-collision protection for doors. The product supports custom sensing distance setting and one-click on/off of rainproof mode, with IP67 high waterproof grade for outdoor complex environments, AC/DC12~30V wide voltage power supply, maximum detection distance of 10 meters and detection response time ≤50ms. Made of durable ABS+PC shell, it works stably at -20℃~60℃ wide temperature range, with relay NO/NC dual signal output and simple installation & debugging. Widely applicable to automatic doors, industrial doors and other door types, it provides efficient and reliable safety induction protection for door operation.

Products
Technical Data
Downloads

Product description

1. 2 mounting options, surface/concealed optional, fit different door installation needs

2. Class Ⅰ eye-safe laser, 890nm infrared no harm, safe to use

3. Core TOF technology, ≤50ms ultra-fast response, accurate detection of moving/stationary objects

4. IP67 high waterproof, rainproof mode on/off, suitable for outdoor complex environments

5. Custom sensing distance, min 80cm adjustable, max detection up to 10 meters

6. 12~30V wide voltage, AC/DC dual power supply, compatible with all door control power

7. NO/NC dual signal output, flexible wiring, match various door control systems

8. -20℃~60℃ wide temperature operation, high/low temperature resistant, stable in all climates

9. Dual-color LED indicator, standby/detection status at a glance

10. Sturdy ABS+PC shell, compact body, super easy to install and debug

Authentication

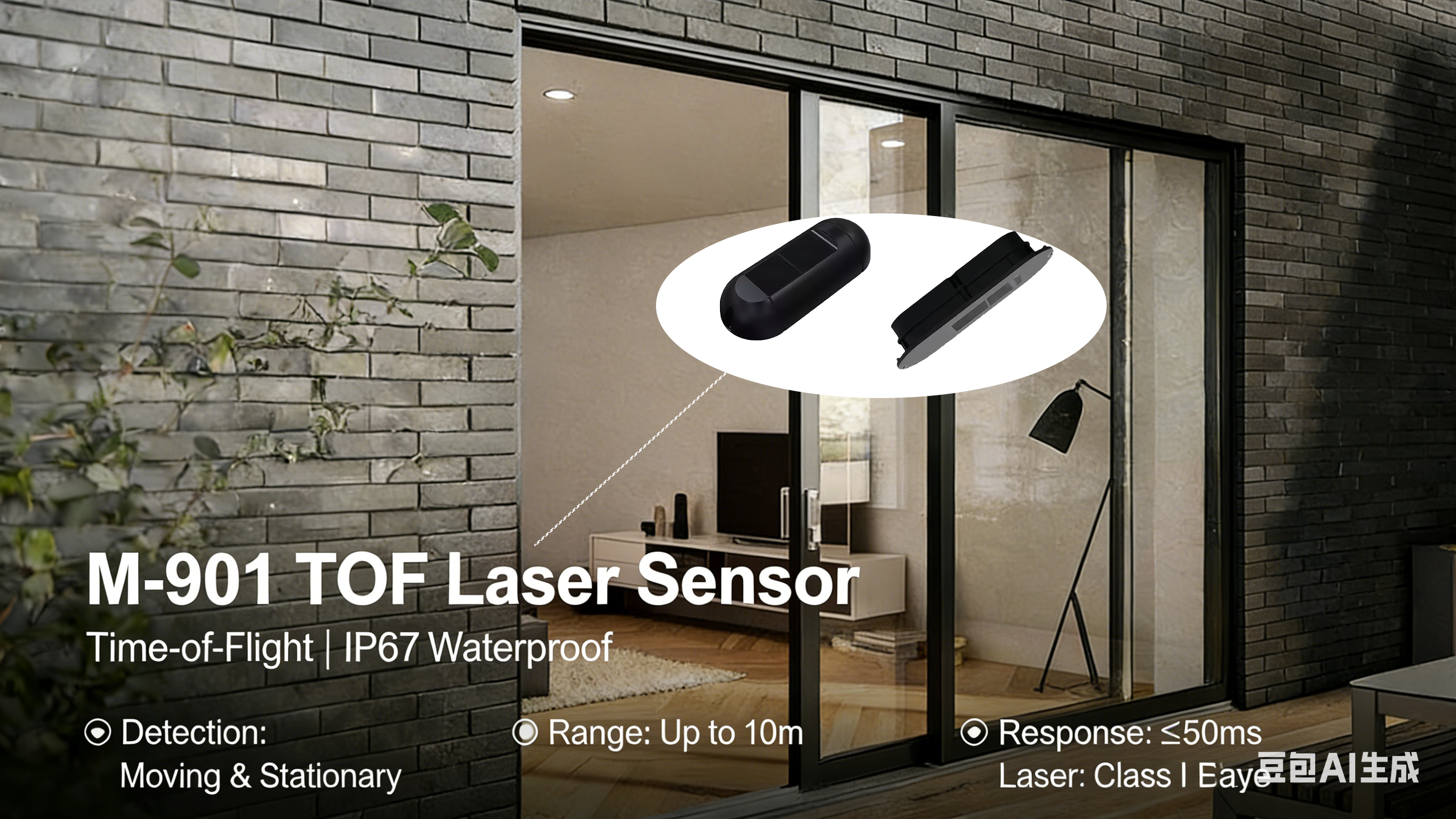

Adjustable Laser Sensor 360° Display - Compact Body with Complete Functions

360° full view of this door laser safety sensor is here! The video shows the core details of the product in all aspects: the appearance, size and radian design of the surface/concealed dual models, clearly presenting key structures such as mounting holes, laser transceiving cabin, dual-color LED indicators and wiring interfaces; the pre-buried depth requirement for concealed mount and fixed design for surface mount are clear at a glance; it also shows the compact body layout and the texture and workmanship of the ABS+PC shell! Equipped with TOF ultra-fast detection technology and Class Ⅰ eye-safe laser, this sensor features IP67 high waterproof grade + rainproof mode, custom sensing distance, 10M long range detection and 12~30V wide voltage compatible with all doors. With optional surface/concealed mounting, it can be easily installed on automatic doors and industrial doors to achieve efficient anti-pinch and anti-collision safety protection!

Technical data

Detection principle:	Time of Flight (TOF)
Light medium:	890nm infrared laser
Laser category:	Class I eye-safe laser
Detection diameter:	100mm light spots(2.8meters height)Detection reaction time: s50ms
Max detection distance:	10 meters
Min cutting distance setting:	80cm
Waterproof grade:	IP67
Working temperature:	-20°C-60°C
Working voltage:	AC/DC 12-30V
Standby current:	52mA(12V power)
Action current:	74mA(12V power)
Signal output:	Relay NO or NC
Trigger mode:	Moving or stationary
Function instruction:	LED indicator, standby: BLUE, detection: RED
Shell material:	ABS, PC
