| Parameter Category | Specification |
| Product Name | 150 Track |
| Profile Material | High-strength aluminum alloy (integrated extrusion) |
| Total Height | 185 mm |
| Total Width | 112 mm |
| Effective Mounting Width | 90 mm |
| Ground Clearance | 10 mm |
| Drive Type | Rack & pinion (built-in rack for gear meshing) |
| Load Capacity | Heavy duty (for large weight automatic doors) |
| Installation Type | Surface-mounted (no embedding required) |
| Application | Industrial automatic sliding doors, logistics passage doors, large commercial doors |
| Service Life | ≥15 years (normal use, regular lubrication) |
| Maintenance Requirement | Regular lubrication of rack & gear (once every 6-12 months) |
| Compatibility | Compatible with standard automatic door drive motors and rollers |

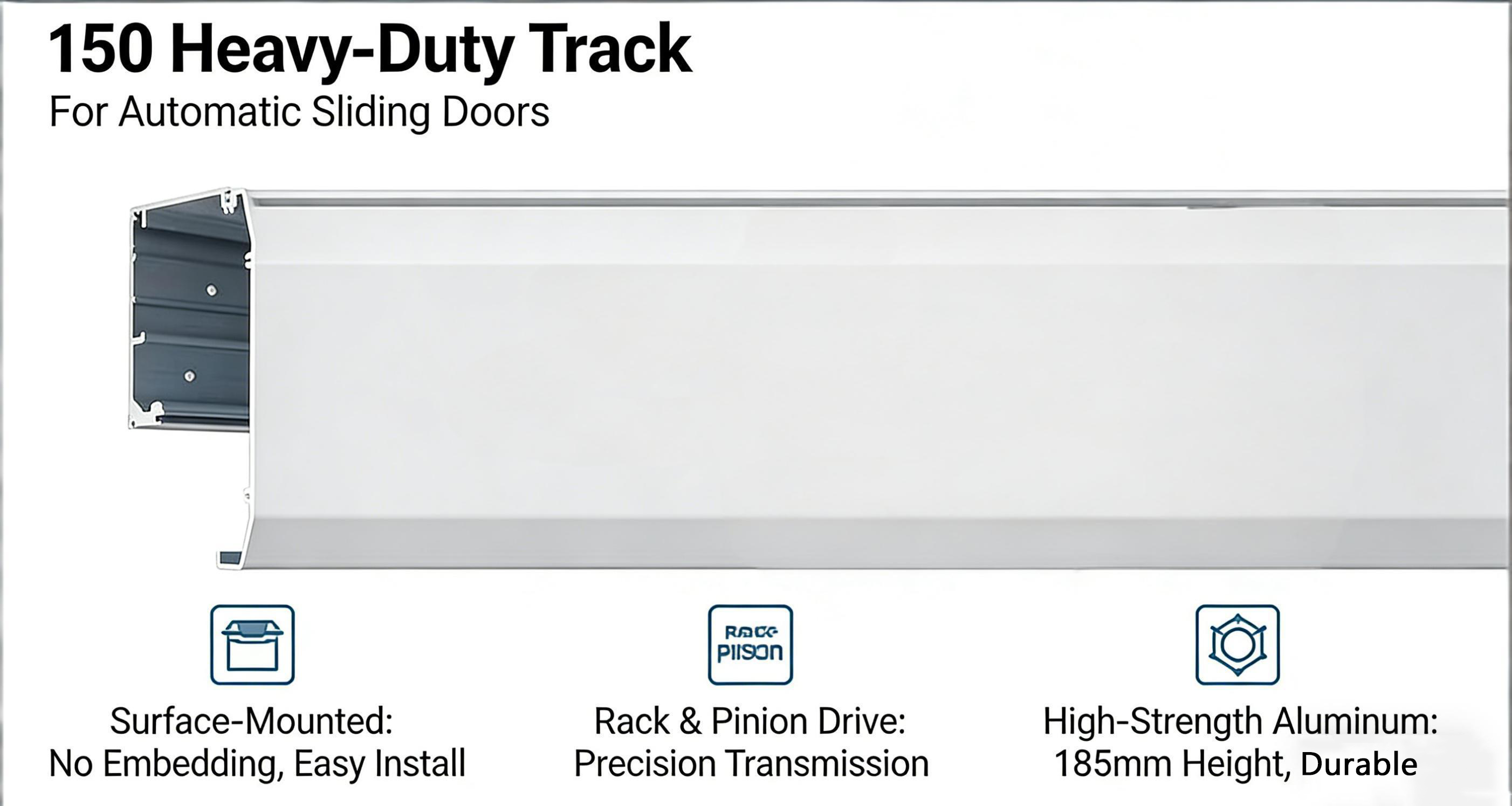

This Surface-Mounted Automatic Door Track is a high-load-bearing drive guide rail specially designed for heavy-duty automatic sliding doors. It is made of integrated high-strength aluminum alloy profile with a total height of 185mm. The surface-mounted installation requires no wall or ground embedding, and can be directly fixed to the structure above the door, adapting to the rack & pinion drive needs of heavy doors. The track is built with a precise transmission structure, which meshes accurately with the drive gear to ensure stable door operation and efficient transmission. The overall structure is sturdy and durable, resistant to deformation and wear, and can withstand high-frequency opening and closing of heavy doors for a long time. It is an ideal automatic door drive solution for industrial workshops, logistics passages, large commercial venues and other scenarios.
