Embedded IR Foot Inductive Switch - IR Touchless for Clean Room/Operating Room

This all-in-one foot inductive switch is specially designed for high-hygiene and high-environmental requirement scenarios such as clean rooms, operating rooms and laboratories. It integrates the controller and foot box into one piece, no separate assembly is needed, and the installation and operation are simple. The product adopts a brushed stainless steel shell, matched with concealed mounting screws and embedded precision emission eyes, with a concise appearance and stable structure. It is core-equipped with active infrared modulation and demodulation technology and microprocessor control, triggering the door opening signal through a touchless foot ray-truncation method, avoiding hand contact pollution and meeting the hygiene requirements of clean scenarios. The device has strong anti-interference ability, can resist external interference such as strong light and microwave, with fast response speed, wide voltage power supply and low power consumption operation, optional signal output modes and a wide working temperature range. It is perfectly suitable for the automatic door control needs of clean spaces such as medical, laboratory and dust-free workshops.

Products
Technical Data
Downloads

Product description

1. All-in-one integrated design, controller + foot box combined into one, no separate assembly, easier installation

2. Brushed stainless steel shell, wear-resistant, scratch-proof and easy to clean, meeting the hygiene and durability needs of clean rooms

3. Active infrared modulation and demodulation technology, touchless door opening triggered by foot ray-truncation, avoiding hand cross-contamination

4. Embedded precision emission eyes + concealed mounting screws, stable structure, strong anti-interference and concise appearance

5. Ultra-fast response, relay output response time <45ms, door opening triggered instantly by foot stepping

6. AC/DC12-30V wide voltage power supply, adapted to a variety of power supply environments with strong scene compatibility

7. Ultra-low power consumption operation, standby current only 8.2mA, energy-saving and economical for long-term use

8. Super anti-interference, resistant to external interference such as strong light and microwave, stable work in complex environments

9. Relay NC/NO signal output optional, can flexibly connect to various automatic door control systems

10. Wide working temperature range -20℃~55℃, adapted to different temperature environments such as medical and laboratory

11. Visual signal indicator light, red constant on for normal work, green flashing for induction trigger, clear status at a glance

12. Specially designed for clean rooms, universal for operating rooms/laboratories/dust-free workshops, meeting high hygiene standards

Authentication

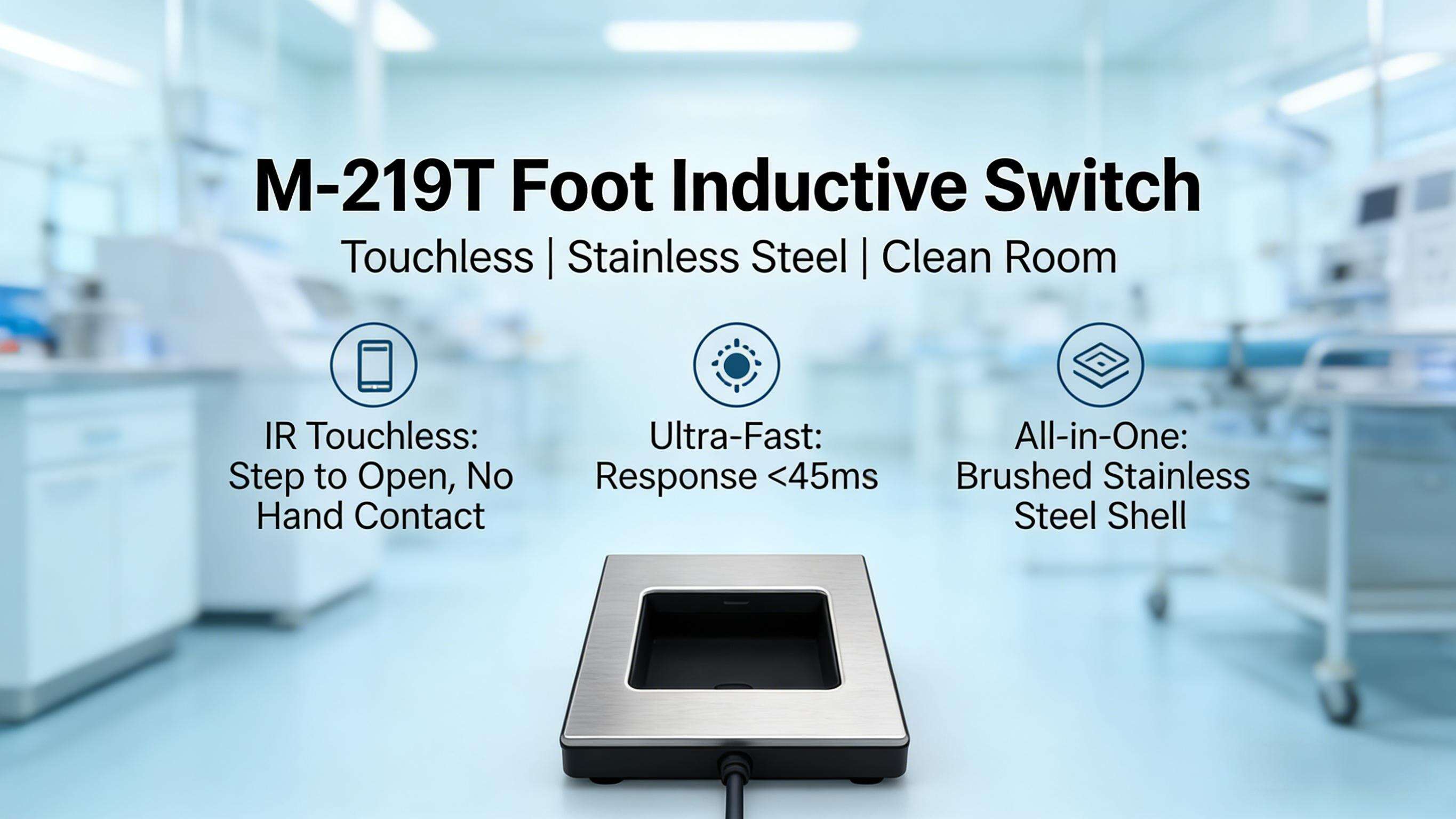

Foot Inductive Switch Real Shot - Step to Open Door, Touchless & Super Convenient!

Real-scene working demo of this all-in-one foot inductive switch for clean rooms is here! The video shows the complete operation process: step gently on the switch induction area, trigger the door opening signal instantly through the touchless foot ray-truncation method, the relay response is <45ms, the automatic door opens immediately, sensitive with no delay or jitter throughout the process; the switch returns to standby after releasing, low power consumption operation, anti-strong light interference, and the brushed stainless steel shell is easy to clean, fully meeting the high hygiene requirements of operating rooms and laboratories!The device features an all-in-one design with simple installation, wide voltage power supply that can connect to various automatic door control systems, and optional NC/NO signal output. It is an excellent choice for touchless door control in medical, clean room and laboratory scenarios!

Technical data

Technology:	Active infrared modulation and demodulation microprocessor
Recommended mounting height:	The center is 0.3 meter away from the ground
Detection Mode:	Truncation of ray by foot operated to produce the open signal(12V input)
Reaction time:	Relay output<45ms
Power supply:	AC/DC 12-30V
Standby current:	8.2mA action Current:47mA Detection signal:4.55mA
Signal indicator:	Effective time of shoot each other, red light on. Green light twinkle when the ray is cut
Temperature:	-20°℃--55℃
Anti-disturbance:	Sun light:81000LUX
Electric incandescent lamp:	36000LUX
Electronic microwave:	meet 89/336/CEE standard
Dimension:	1913mm(Emission light eye)186175*53mm(Main body)
Signal output:	Relay NC or NO are optional Open hole sizes are as below
