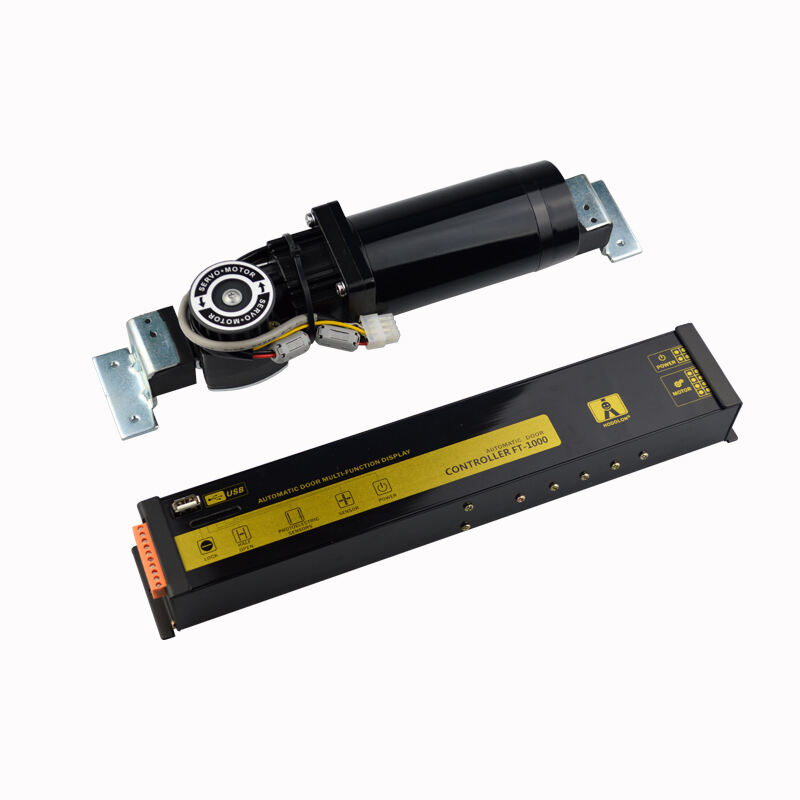

The Japanese-designed ultra-high-power DC servo motor has an electric lock function, which can achieve access control without an external mechanical lock. The precise manufacturing process and turbine transmission structure ensure that the motor runs quietly while ensuring super strong driving force, greatly improving dynamic torque and transmission efficiency. The motor adopts stepless speed change, uniform and stable operation, effectively reducing operating noise.

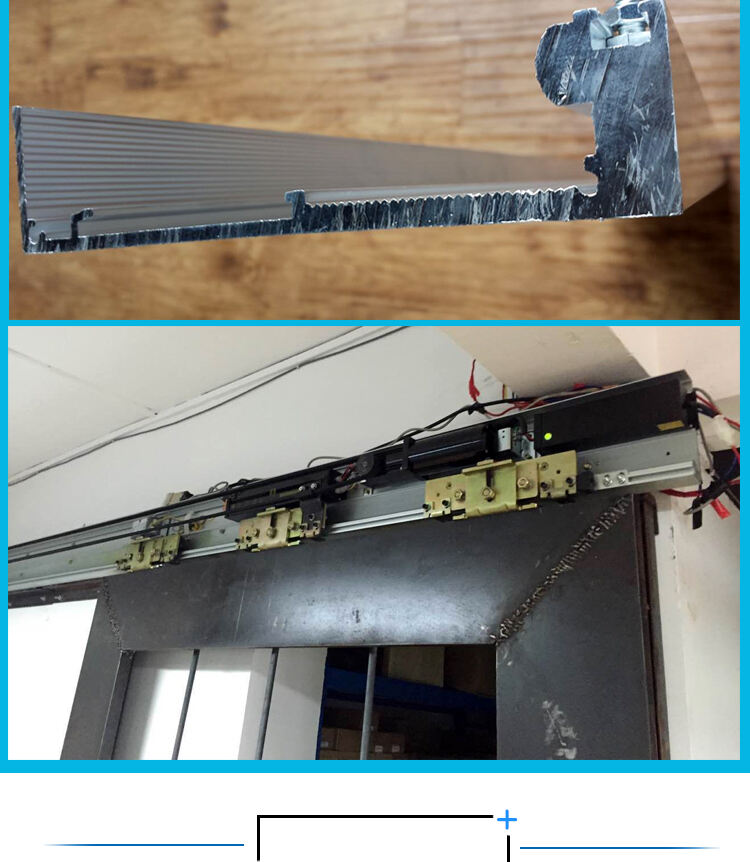

The track is made of high-strength aluminum profiles, which are highly shock-resistant and strong.
wheel pendant structure, using special nylon pulleys, super strong load-bearing performance, good wear resistance and self-lubricating properties, greatly reducing operating noise and ensuring service life
| MODEL | Standard type | Decelerating type | ||
| Single door | Double door | Single door | Double door | |
| Door weight | 1000KG*1 | 500KG*2 | 2000KG*1 | 1000KG*2 |
| Max stroke | 9M | |||
| Opening/closing speed | 0.1 - 0.5M/S | |||
| Power supply | 220V | |||
| Controller | 232 Governor Adjustment | |||
| Motor | DC motor | |||
| Use environment | TEMP：-20℃～+50℃ Humidity：30%～85%RH(No condensation & icing) | |||
