ES200E Commercial Automatic Sliding Door Close Operator Kit Modern Remote Dunkermotoren Motor for Hotel or Hospital Use

The ES200E sliding door drive system is a modular-designed automatic door drive device, compatible with single/double-panel sliding door scenarios. It supports a maximum single panel weight of 120KG and a maximum double panel weight of 100KG per leaf, with a passage width ranging from 700-3000mm, meeting various entrance/exit size requirements.

Powered by 230V (50/60Hz) with a power consumption of only 50W, the system operates stably in temperatures from -20°C to +60°C and up to 93% relative humidity (non-condensing), adapting to multiple climatic conditions. The opening/closing speed can be adjusted between 10-50cm/s and 10-40cm/s, the hold-open time is customizable from 0.5-30s, and the maximum opening/closing force is 150N, with operating noise below 40dB, combining efficiency and quietness.

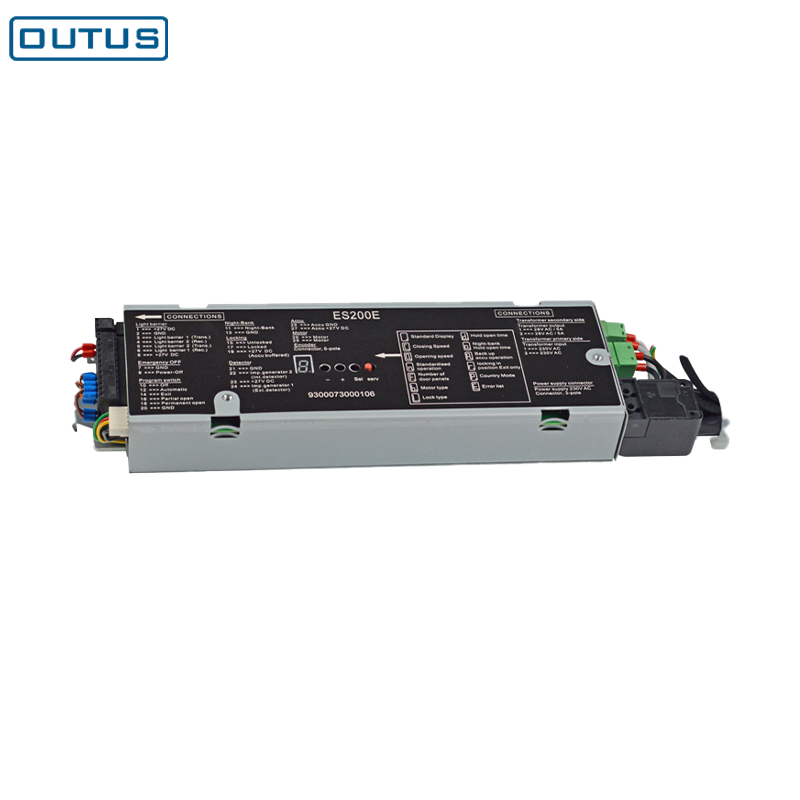

Equipped with a microprocessor controller, it supports 6 operating modes (e.g., automatic, permanent open, partial open) and built-in safety functions like fault self-inspection and automatic anti-pinch reversal. It also reserves interfaces for accessories such as light barriers and electric locks for flexible function expansion.

Products
Technical Data
Downloads

Technical data

Door Parameters	ES200 EASY
1-panel sliding door - Transit width with LW - Door panel weight	700-3000 mm Max 120Kg*1


2-panel sliding door - Transit width with LW - Door panel weight	800 - 3000 mm Max 100KG*2

Product description

Modular Design & Flexible Adaptation：Adopts a modular structure, allowing free combination of components according to door size and functional needs, compatible with mainstream door profiles, suitable for single/double-panel scenarios, and easily adapting to different entrance requirements.

Low Power Consumption & Quiet Operation：With a power consumption of only 50W, it is highly energy-efficient; the track uses sound-absorbing rubber strips, and the operating noise is below 40dB, ideal for quiet environments like offices and hospitals.

Intelligent Control & Rich Functions：The microprocessor controller supports 6 operating modes, with built-in self-learning and error code reading functions; commissioning can be completed without additional programming equipment, ensuring easy operation.

Comprehensive Safety Protection：Equipped with automatic anti-pinch reversal and emergency power-off opening functions, supporting up to 2 pairs of light barriers; compliant with safety standards such as low-voltage directives for reliable use.

Prefabricated Components & Easy Installation：The core drive unit is an industrially prefabricated and tested component; complete accessories and standardized installation processes enable quick assembly, reducing construction difficulty and time costs.

Durable & Reliable：The track is made of wear-resistant nylon material, the motor passes 1 million cycle tests, and the whole product complies with ISO9001 quality standards, ensuring long service life and low maintenance costs.

Authentication

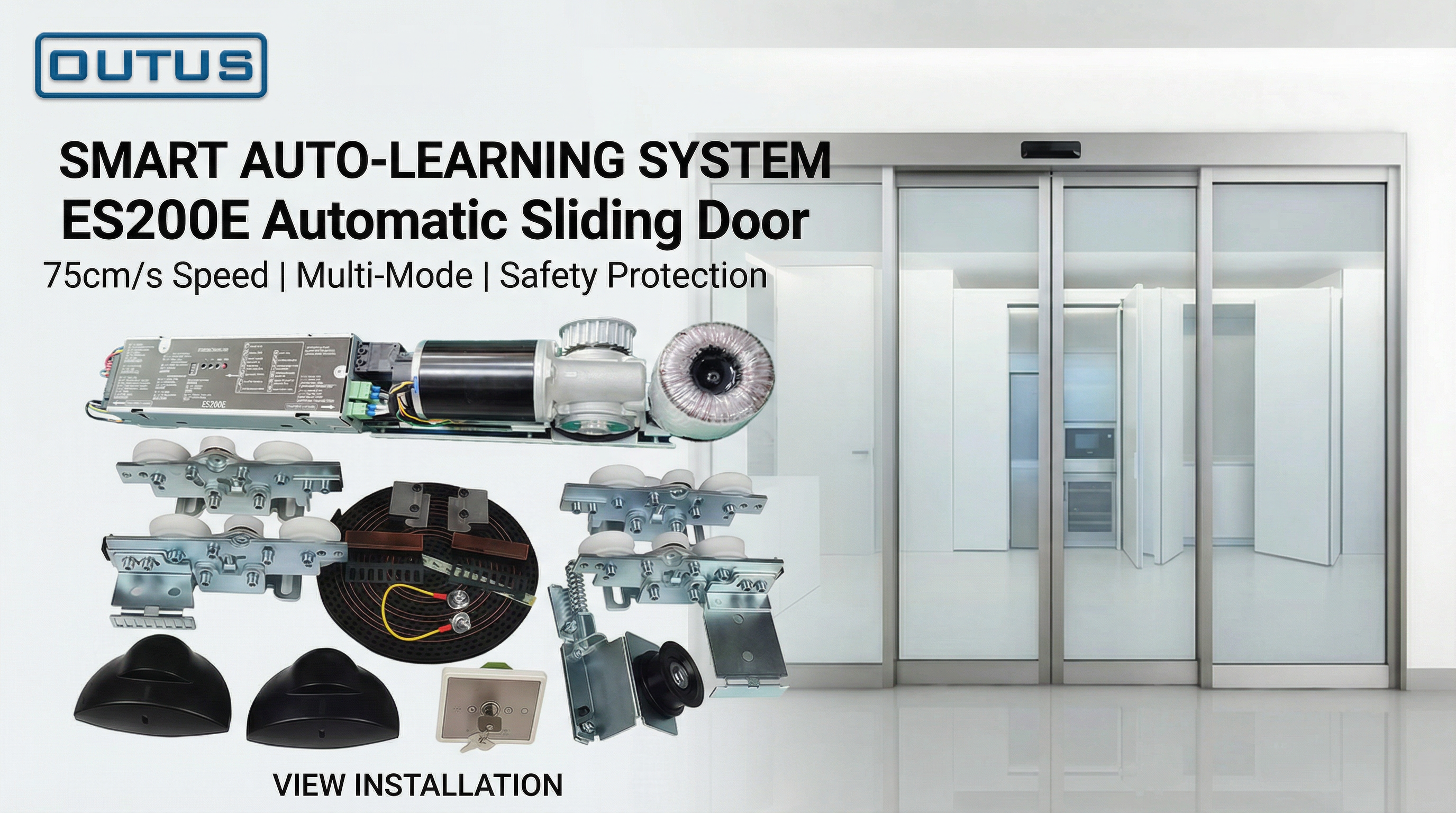

ES200E Sliding Door Drive System | Auto Open & Close Live Shot, Smooth Operation for Office/Commercial Doors

Want convenient and smooth access? Check the actual performance of the ES200E sliding door drive system: the door opens stably without noise, and closes naturally after passage—seamless throughout. Whether it’s daily access in offices or high-frequency traffic in shops, this drive system handles it reliably, making every door operation worry-free and efficient. It’s a practical choice to enhance the quality of any space

Technical Parameter	ES200 EASY
Height	100 mm
Depth	180 mm
Opening and closing force	Max 150N
Opening speed (incremental setting)	10-50 cm/s
Closing speed (incremental setting)	10-40 cm/s
Hold-open time	0.5-30sec
Mains voltage, frequency	230 V, 50/60 Hz
Power consumption	180 W
International protection	IP 20
Tested according to low-voltage guidelines	●
