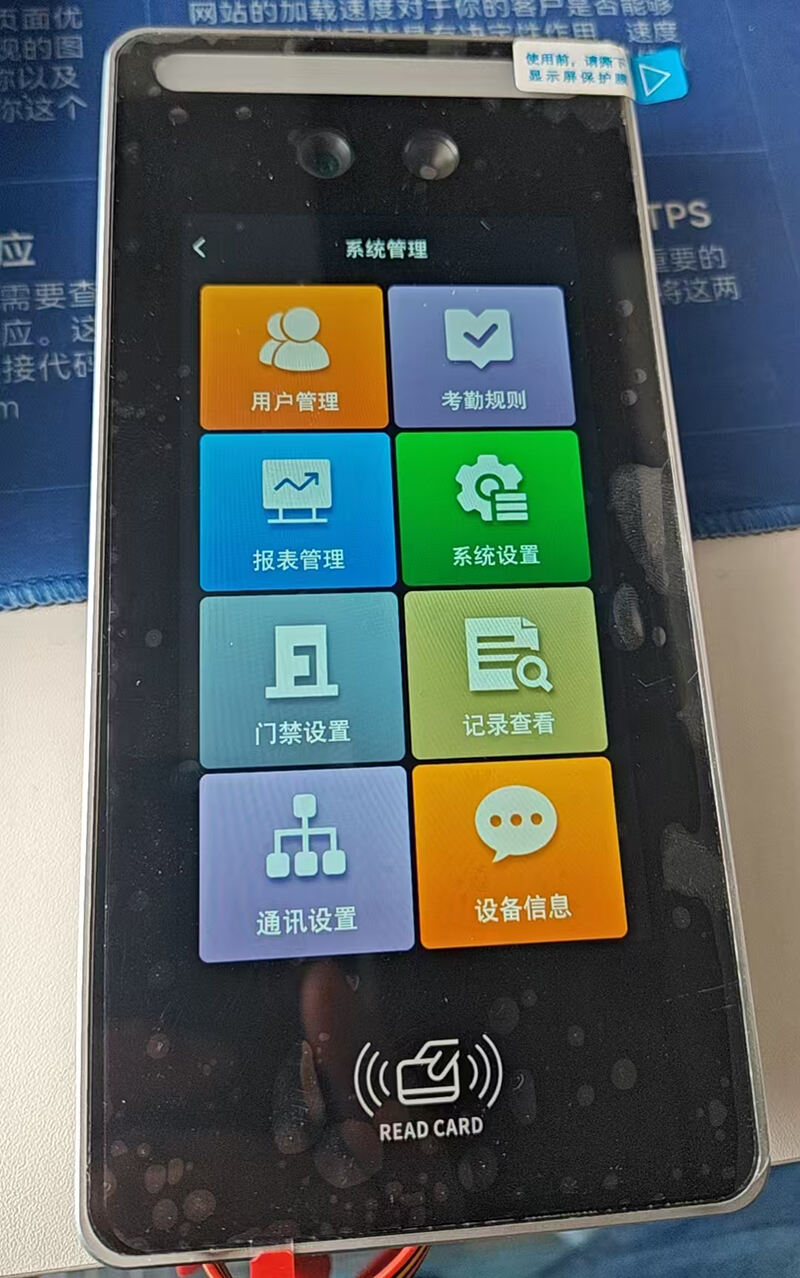

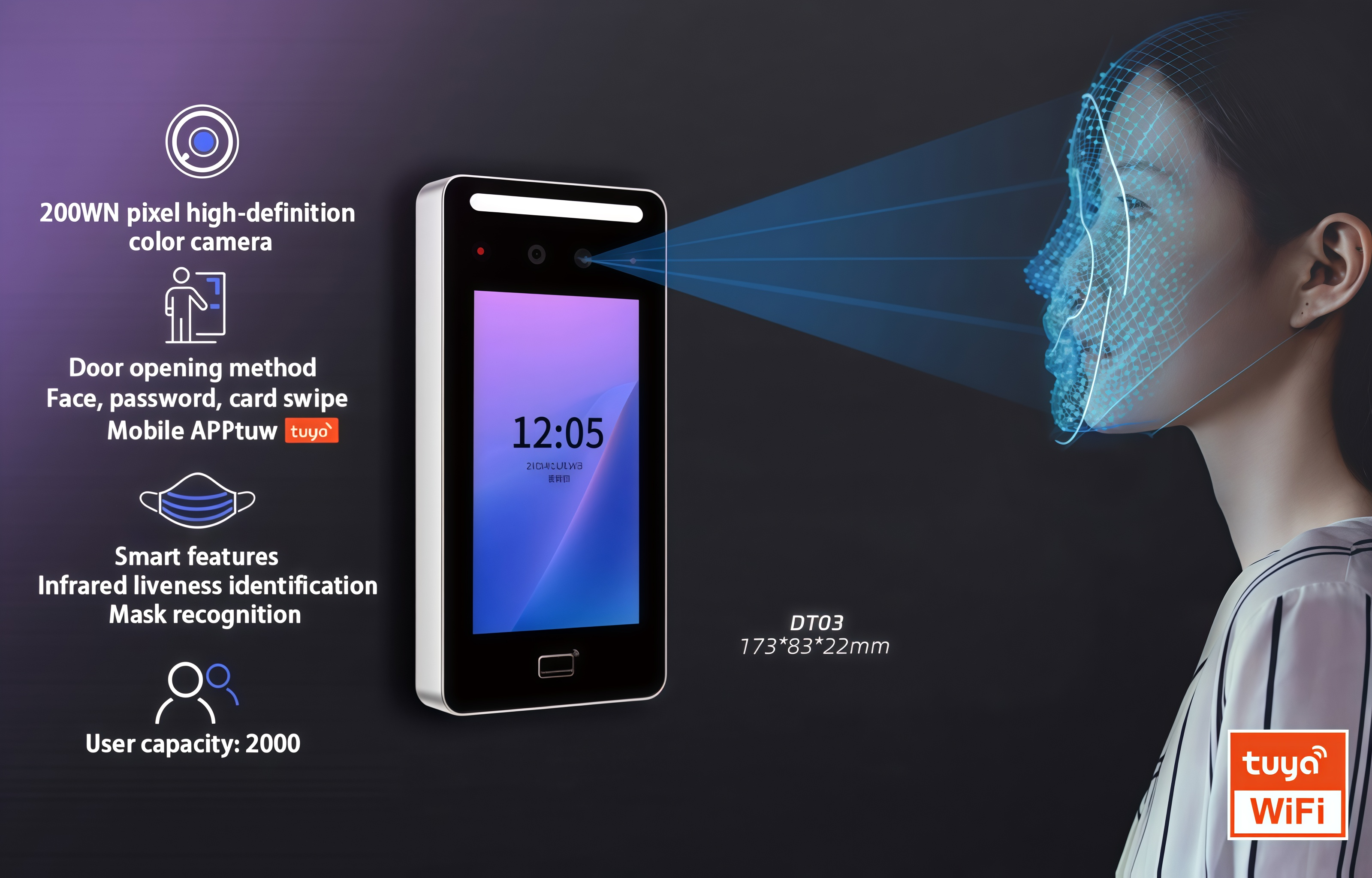

Face access controller is an access control device based on LINUX system. It is mainly applicable to office door, office building hall corridor management system, club membership management system, site labor system, intelligent community passage system, scenic spot ticket system and etc.
| ModelName | Type A | Type B | Type C | Type D | Type E |
| Material | Material MetalBody, TemperedGlass Panel | Metal+ABS Body, Tempered Glass Panel | ABS Body, TemperedGlass Panel | Metal Body, TemperedGlass Panel | |
| Weight | 0.5KG | 1.OKG | 0.5KG | 1.8KG | |
| Dimension | 160mmx80mmx20mm | 225mmx119mmx26mm | 232mmx88mmx25mm | 215mmx112mmx25mm | 94mmx115mmx580mm |
| Screen | 5.5-inchIPS full viewHD touch screen | 7-inchIPS full viewHD touch screen | 5.5-inchIPS full viewHD touch screen | 7-inchIPS full viewHD touch screen | 5.5-inch IPS fullview HD screen(without touch screen) |
| Camera | Wide dynamic binocular 2 million HD camera | ||||
| Voltage | DC12V(9-14V) | ||||
| Current | 1300mA | ||||
| WorkingEnvironment | Temperature:-10℃ to 65℃; Humidity: 10-90% RH | ||||
| WIFI | Can be customized | ||||
| USB | / | USB ports(can connectU disk and mouse) | Two USB ports(can connectU disk and mouse) | USB ports(can connect U disk and mouse) | |
| StorageCapacity | Memory 1GB DDR3Storage 4GB EMMC | Memory 1GB DDR3, Storage 8GB EMMC | |||
| OperationSystem | LINUX System | ||||
| Management | Keyboard,CS System,BS Cloud Platform | ||||
| Comparison | 1:N/1:1 | ||||
| LivenessDetection | / | Support | |||
| TemperatureDetection & Records | / | Support | |||
| MaskDetection | Support | ||||
| Speed | <0.5s | ||||
| Communication | TCP/IP (WIFI optional) | ||||
| Protocol | Wiegand26/34 | ||||
| Access Methods | Face, Password, (CPU card, EM Card, Mifare Card, Identification Card) | ||||
