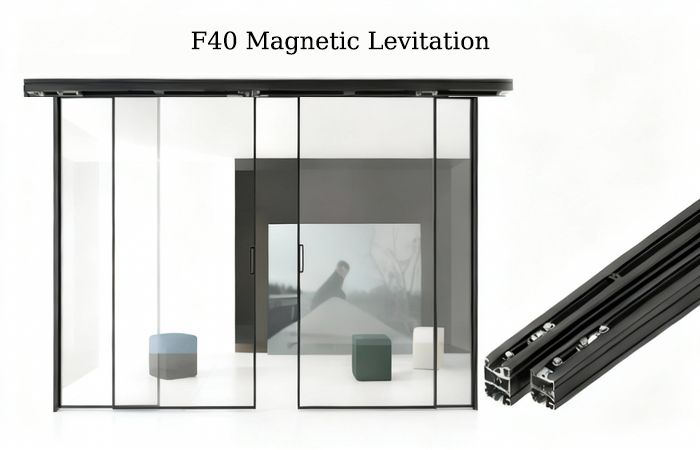

Modern Maglev Sliding Door Levitating Module Kitchen Home Residential Entrance Electric Drive Unit

Technical data

Product description

Magnetic Levitation Drive, Smooth and Quiet Operation：Adopts electromagnetic induction repulsion technology, no physical contact wear, smooth door opening and closing without jitter, low noise; manual door opening force <10N, slides with a gentle push, and can be easily operated manually in case of power failure, providing an excellent passage experience.

Strong Load-Bearing Capacity, Wide Compatibility：The standard version has a load-bearing capacity of 10-100KG, and the enhanced version reaches 120KG. The length can be customized (1200-6000MM), compatible with various door types such as glass doors, wooden doors, and profile doors, covering the needs of home, commercial, medical and other scenarios.

Intelligent Regulation, Easy Operation：Supports remote debugging via Bluetooth APP, allowing customization of core parameters such as maximum speed, door holding time, and operation mode; equipped with a dedicated remote control to realize functions such as permanent open, close, stop, and lock, suitable for both double-door and single-door scenarios.

Comprehensive Safety Protection：The anti-shearing force in place is <10N, automatically rebounds when encountering obstacles to avoid pinching risks; supports connection of safety light curtains and access control systems, optional electric lock to improve security level; after the door is closed, it achieves a 10N closing force through permanent magnet attraction, with good sealing effect.

Easy Installation, Strong Adaptability：Fully assembled and powered on for debugging before leaving the factory, with a clear on-site installation process; supports single-door/double-door installation, can adjust screw holes according to the on-site structure, flexibly adapt to irregular walls, and has standardized and easy-to-operate wiring.

Durable and Reliable, Strong Environmental Adaptability：Working temperature range of -40°C to 60°C, resistant to high and low temperatures, adapting to different climatic conditions; core components have stable quality, low operating power (rated 60W, average round trip 40W), energy-saving and power-saving, with a long service life.
