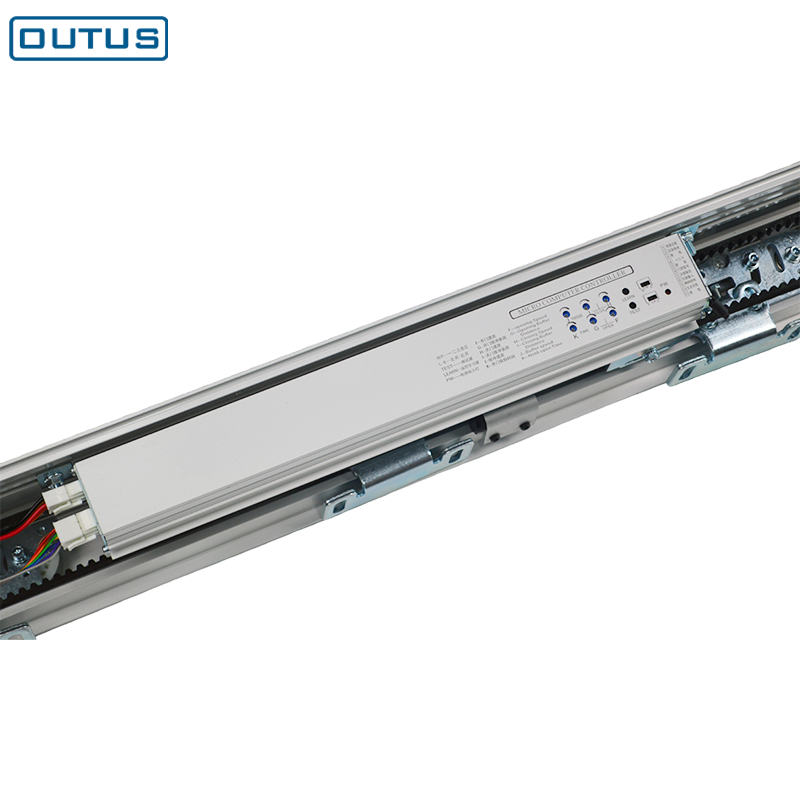

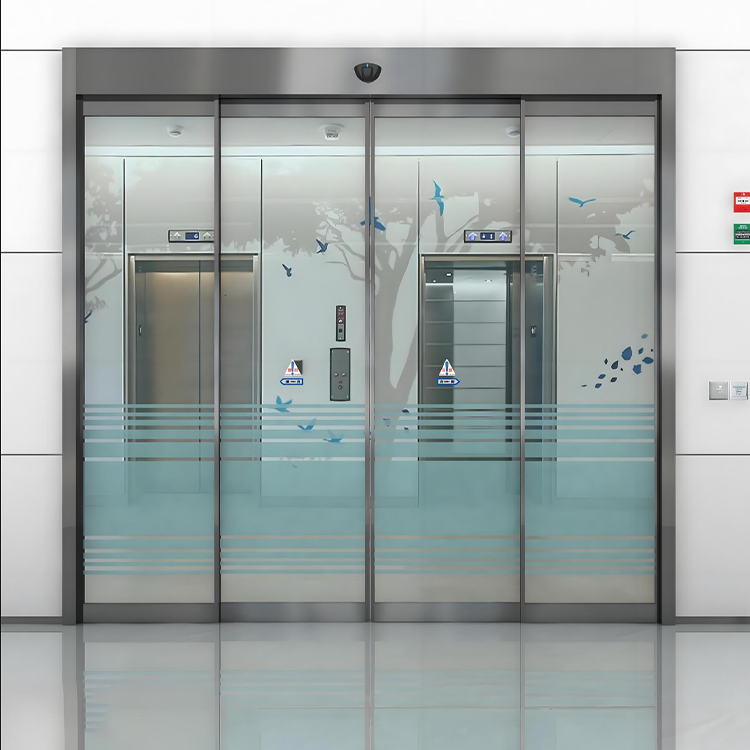

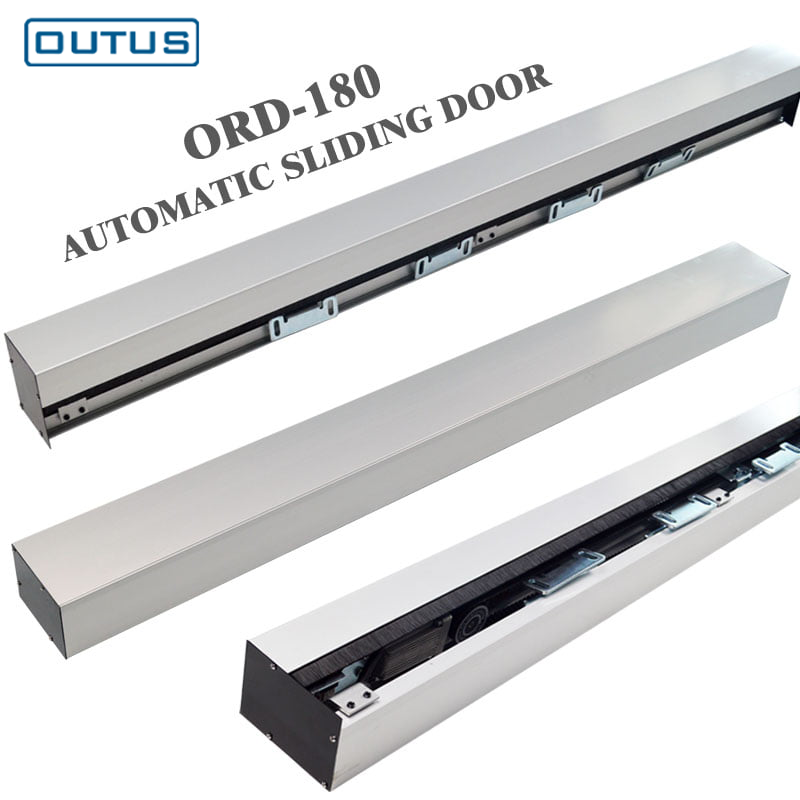

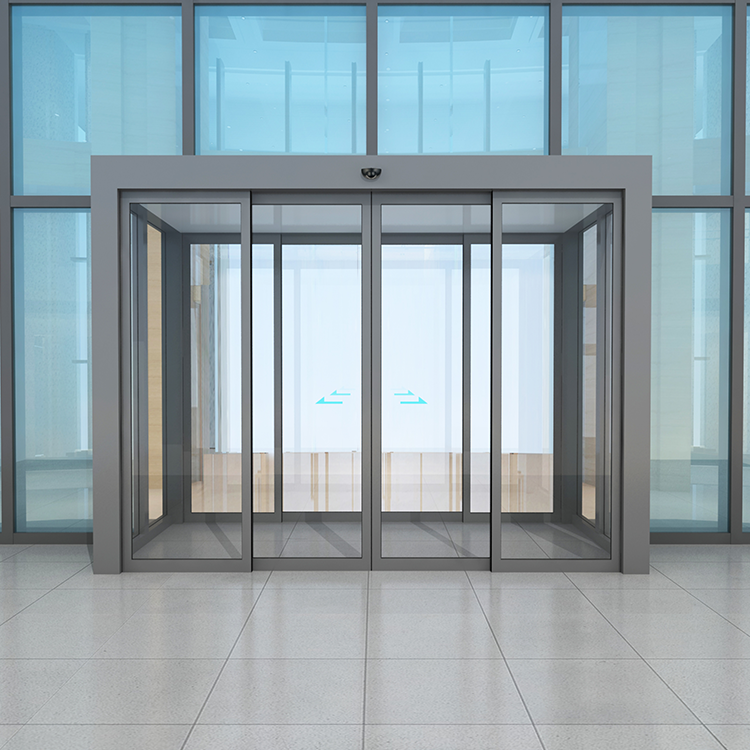

Modern Smart Control ORD-180 Automatic Glass Sliding Door Equipment Unit System Operator for Mall Hospital

The ORD180 automatic door drive system is a professional door drive equipment certified by the ISO9001 product quality system and CE. It is compatible with single-opening and double-opening door types. The double-opening type can carry a maximum door leaf weight of 2×180KG, and the door leaf width of both single-opening and double-opening types is 400-2000mm, meeting the needs of various conventional entrance and exit scenarios.

The system adopts a standardized installation method, with an adjustable operating speed ranging from 13-50cm/s, which can be flexibly adapted to different usage scenarios. It has a wide adaptive range of operating ambient temperature and can run stably in the environment of -20°C to +50°C, suitable for different climatic conditions. The product is equipped with a complete set of core components and installation accessories, and follows a professional installation process to ensure the stability and safety of the door operation. At the same time, it has a complete electrical connection scheme and troubleshooting mechanism to ensure long-term reliable use.

Products
Technical Data
Downloads

Technical data

Model	series
Door leaf	Single leaf	Double leaves
Door leaf weight	Max.250KG	Max.180KG×2
Door leaf width	DW=400-3000mm	DW=400-2000mm
Width of door opening	W=400-3000mm	W=400-2000mm
Installation method	Surface installation
Supply power voltage	AC 110-250V, 50Hz
Opening speed	15-50cm/s(adjustable)
Closing speed	13-50cm/s(adjustable)
Door hold-open time	0-20S(adjustable)
Manual thrust	<40N	<50N
Motor	DC24V,65W(DC,brushless)
Working environment temperature	-20℃-+50℃

Product description

Authoritative Certification & Quality Assurance: Certified by the ISO9001 product quality system and CE, strictly complying with relevant decrees and codes for electrical installation, with standardized production and manufacturing standards, ensuring reliable product quality.

Flexible Adaptation & Wide Application: Supports two door types (single-opening and double-opening), with door leaf width ranging from 400-2000mm, meeting the needs of entrances and exits in various places such as residences, commerce, and offices, with strong adaptability.

Stable Operation & Convenient Adjustment: The operating speed can be flexibly adjusted within the range of 13-50cm/s, adapting to scenarios with different pedestrian densities; the door height can be adjusted up and down through adjustment bolts, and the door leaf gap can be accurately controlled to ensure smooth operation without jamming.

Comprehensive Safety Protection: Construction and commissioning must be carried out in strict accordance with the manual, with clear safety warnings and protection requirements; the detection range of the sensor can be reasonably set to avoid dead corners and prevent pedestrians from being hit or pinched by the door; equipped with a door anti-falling device to ensure safe use.

Standardized Installation & Easy Maintenance: Provides detailed installation step guidelines, with clear installation processes for components such as guide rails, motors, controllers, and hangers, facilitating operation by professionals; equipped with a complete troubleshooting plan to quickly locate and solve door operation problems, reducing maintenance costs.

Complete Components & Reliable Connection: Core components include motor, controller, terminal switch, hanger, ground wheel, etc., with complete accessories; the electrical connection scheme is standardized, covering connection methods such as sensors, double-door interlocking, backup power supply and electric lock, with clear guidelines for wiring operations to ensure stable connection without failures.

Authentication

ORD180 Automatic Door Drive System | Office Scene Live Shot! Open on Induction, Auto Close

Want to balance convenience and texture at office entrances and exits? The ORD180 automatic door drive system offers the perfect solution! This sample practical test video truly restores the usage effect in office scenarios: linked with a switch, it opens automatically in an instant with a gentle induction, running stably without noise for efficient passage without waiting; after opening, it automatically maintains a reasonable opening time and then closes smoothly, with the whole process flowing seamlessly. No manual pushing or pulling is needed—it not only enhances the sense of technology and style of the office space but also meets the demand for high-frequency passage. ORD180—empowering office scenarios with stable performance, making every entry and exit convenient and worry-free
