Outus Automatic sliding Anti Panic Emergency Exit Breakout Escape Door

Outus Automatic sliding Anti Panic Emergency Exit Breakout Escape Door

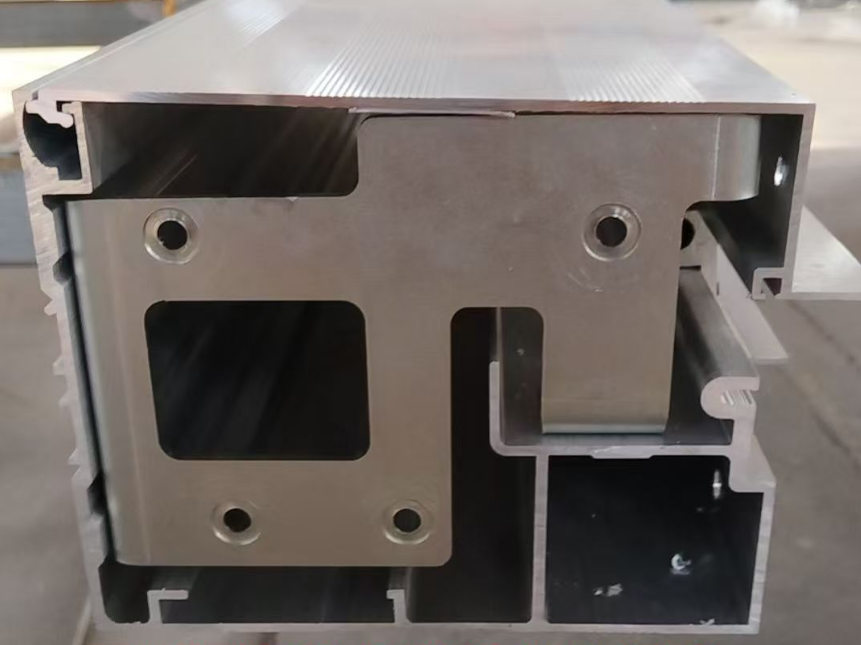

✔  The dual-cavity design of the track is strong enough to support maximum doorway width requirements.

✔  The track is equipped with a special light strip, which can support illumination or colorful light strip decoration, and can also be set up for the warning light, to protect the safety of entrances and exits. (Patented products, independent research and development)

✔  Door hook enterprise breaks the traditional hardware hook interlocking mode, the profile comes with a hook edge, the appearance of the ornamental greatly improved.

✔  Can be smoothed and pushed open to provide emergency escape and greater passage width.

✔  The maximum thickness of the profile wall reaches 5.0mm, the hardware is precise, and the door body is sturdy and durable.

  • Products
  • Technical Data
  • Downloads

Product description

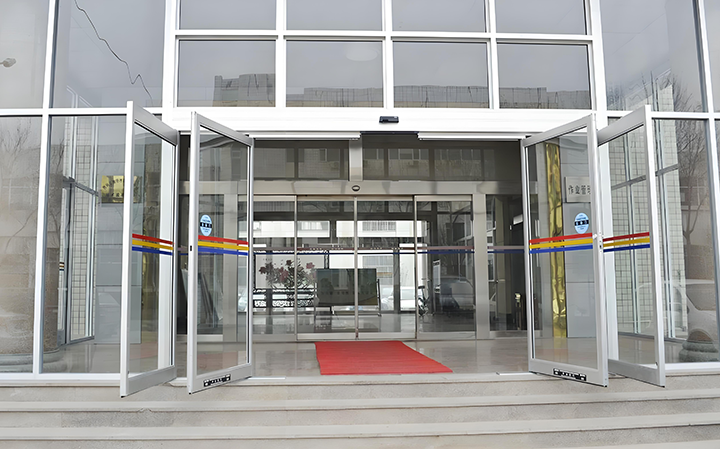

Emergency evacuation door has all the functions and features of the automatic smooth

door, where the emergency push-open function has been added, which is mainly characterized

by the fact that in the event of an emergency, the fixed fan and movable fan can be pushed

outward to obtain the maximum passage space

Outus Automatic sliding Anti Panic Emergency Exit Breakout Escape DoorOutus Automatic sliding Anti Panic Emergency Exit Breakout Escape Door

Authentication

  • 37e065c38b4547585a484da1fa9f8507_05f76470e0be25c47b9367570f6a7298fedfae6bbcf30ef6eb8529be79782d20.png
  • b5f393b269bf5e8d51b6e89c1c528ec7_d65c8bab529ec652803e5cb9bbb8fd48c9279075a1e028d0508739ab930a9c02.png
  • c7ca8fef69012b145ed5d14d3d7e4cde_8e984a55faaca405c6dc85016fe450b41332f8326da4eb81ca7679fd4ec4133d.png
  • fe82f6e36e5d684b7ac8aefe73f581a4_e7a0f5dbc3d83b3d06500f44462cb9cd20e66a2cc24e37f5c69e826f0dcb892f.png
  • d40f02898fd60c201144619c3edae6f9_c83e84ecffe0795637634b8890d67745dcf7dae738e879364cc08e105f0c26d9.png

Technical data

Net passing width 1200-2600mm (folio), 600-1300mm (single)
Net passing height 2800mm (recommended)
Maximum weight of door 2X120Kg (opposite opening), 1X130Kg (single opening)
External dimension of rail section 160X190mm (standard)
Opening speed 250--550mm (adjustable)
Motor power 75W
Motor voltage 220V

Downloads

Emergency Evacuation Door Manual
