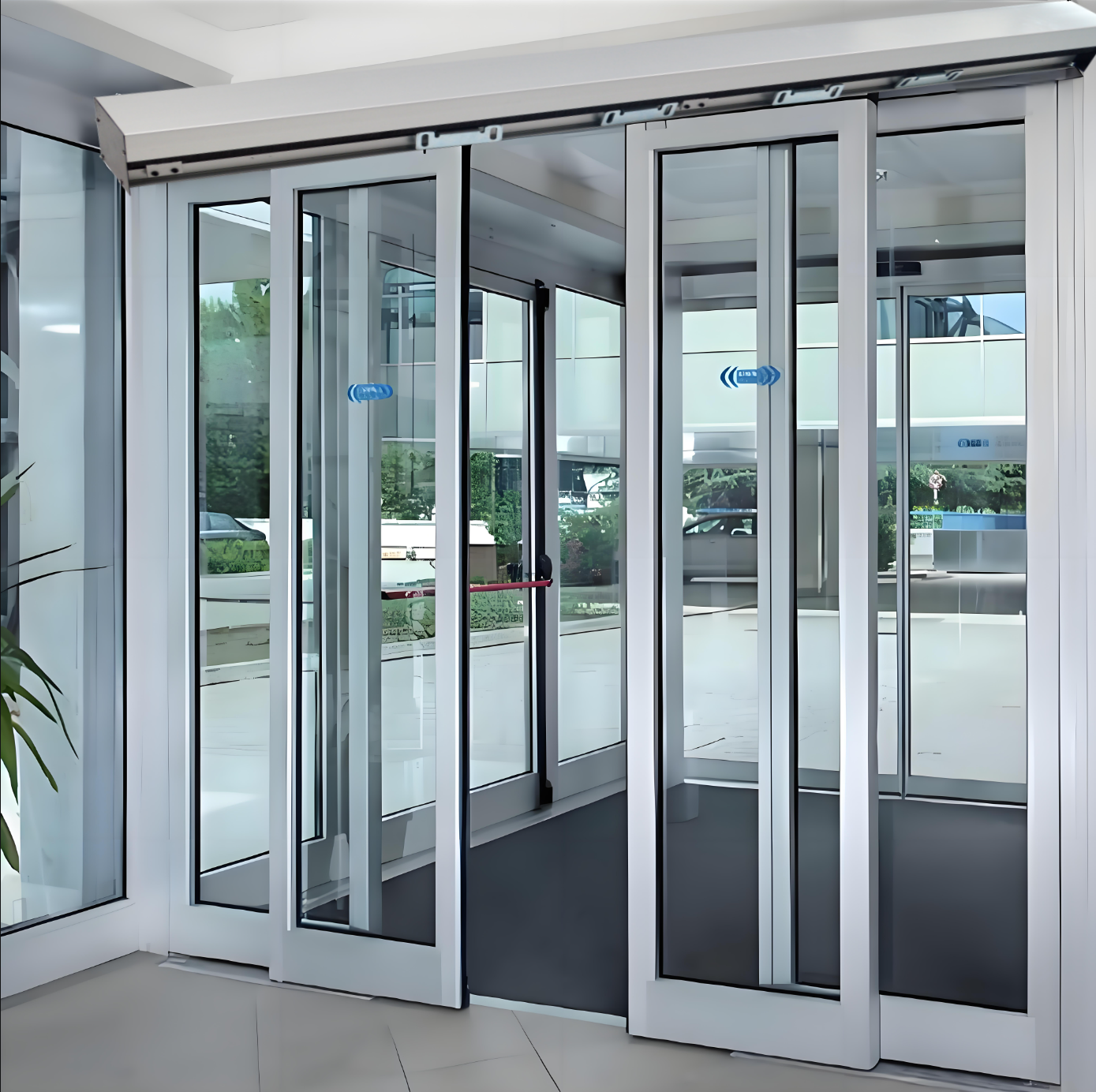

Load-bearing capacity 180kg, single door, double door, framed door and frameless glass door can be used
Standard track length 4.2m, other optional lengths are 2.1m, 2.5m, 3m, 4m, 5m, 6m
Can be used with different access control switches
Microcomputer control system, can control the door body to operate in the set way, realize multiple interfaces such as double door interlocking, and at the same time come with power-on self-check, rebound when encountering resistance, to prevent accidents of pinching people.

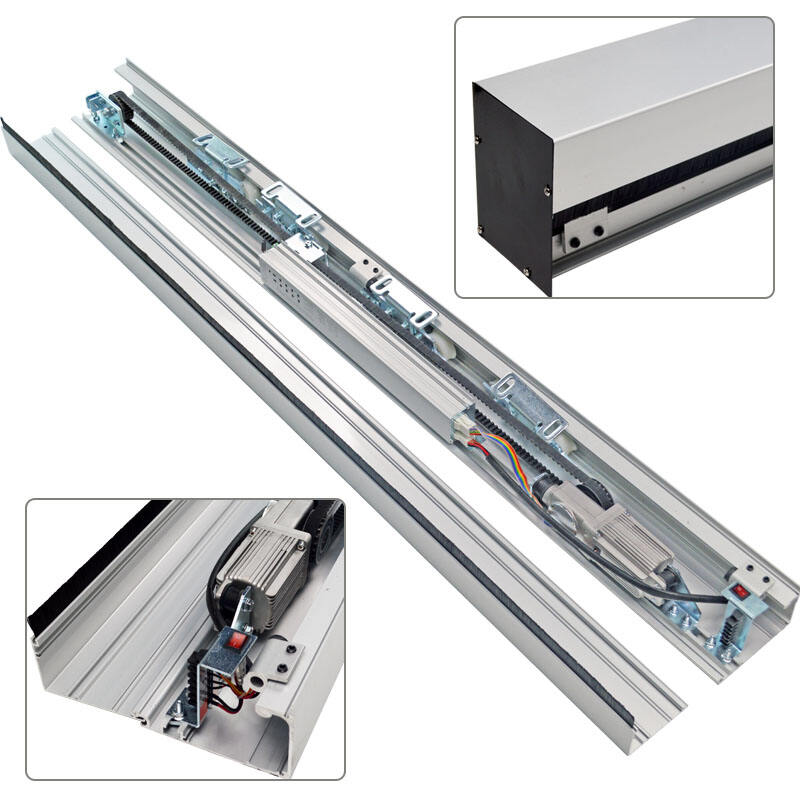

Adopting European motor design, integrated reduction box technology, strong drive, stable operation, and increased output power.
Special reduction silent wheel, professional hanging design, roller interface effectively reduce operating noise.
Multiple control program customization
Customizable professional program controller, support bad debt, random stop, Bluetooth, CNC display and other control programs.
| Door configuration | Single-leaf/Two-leaf |
| Door leaf weight | ≤1x200KG/≤2x180KG |
| Clean open width | 1000-2700mm/2200-3800mm |
| Power voltage | AC220V±10%,50-60Hz AC110V±10%,50-60Hz |
| Power consumption | 70W |
| Opening speed | 300-550mm/s(adjustable) |
| Closing speed | 200-550mm/s(adjustable) |
| Hold-open time | 1-10s(adjustable) |
| Closed force F | >100N |
| Manual push | <100N |
| Working environment temperature | -20~+50C |
