Tuya Smart Facial Recognition Outdoor Access Control with Intercom

H8 Tuya Smart Facial Outdoor Station (Pro V3.3) is a high-end outdoor smart access control device integrating intelligent recognition, video intercom, access control unlocking and security alarm. It is equipped with Tuya smart ecosystem and compatible with indoor smart monitors and Tuya Smart Home mobile app for linkage use. The device adopts an 8-inch HD IPS touch screen, equipped with a dual-core processor and dual 2MP lenses, supporting dynamic face detection, live body recognition and mask recognition. The capacity of face/IC card both reaches 2000 groups with fast recognition speed and high accuracy. It comes with LAN wired network as standard, optional Wi-Fi/4G wireless connection, IP65 high waterproof grade and aluminum alloy body, adapting to the wide temperature outdoor environment of -30℃~+70℃. It also supports two-way intercom, infrared fill light, advertising display, anti-demolition alarm and other multi-functions, and can link with electronic locks and IP cameras. It is widely applicable to the smart access control management of various outdoor entrances and exits such as residential quarters, office buildings, parks and villas, balancing safety, intelligence and practicality.

  • Products
  • Technical Data
  • Downloads

Product description

1.Multi-mode smart unlocking, supporting face, IC card, password unlocking, and remote unlocking via indoor monitor/mobile app, with flexible unlocking methods.

2.High-precision and fast face recognition, dynamic face detection + live body recognition to reject photo fraud, recognition accuracy 99.7% and speed ≥1 second, accurate recognition even with a mask.

3.Super large recognition capacity, supporting 2000 groups of storage for both face and IC card, meeting the use needs of high-traffic scenarios such as residential quarters and office buildings.

4.8-inch HD IPS touch screen with 800*1280 resolution, full capacitive touch screen operation, tempered glass panel is wear-resistant and sturdy, with smooth and convenient operation.

5.HD camera with intelligent fill light, dual 2MP lenses, adaptive infrared fill light, supporting backlight environment recognition, still clear at night/strong light.

6.Tuya smart ecosystem linkage, directly connectable to indoor smart monitors and Tuya Smart Home APP, realizing two-way intercom, remote call and remote monitoring.

7.Diverse network connections, standard with LAN wired network, optional Wi-Fi/4G wireless connection, free configuration of DHCP/static IP, easily adaptable to different scenarios.

8.Industrial-grade outdoor protection, aluminum alloy body + sandblasting process, IP65 waterproof grade, wide temperature operation from -30℃ to +70℃, cold and heat resistant, wind and rain proof.

9.Rich security functions, with built-in anti-demolition design, door magnetic alarm and anti-demolition alarm, real-time reminders for abnormal situations, guarding the safety of entrances and exits.

10.Two-way voice intercom, supporting two-way calls between all call stations and indoor monitors, clear call sound quality, ring volume ≥70dB, audible at a long distance.

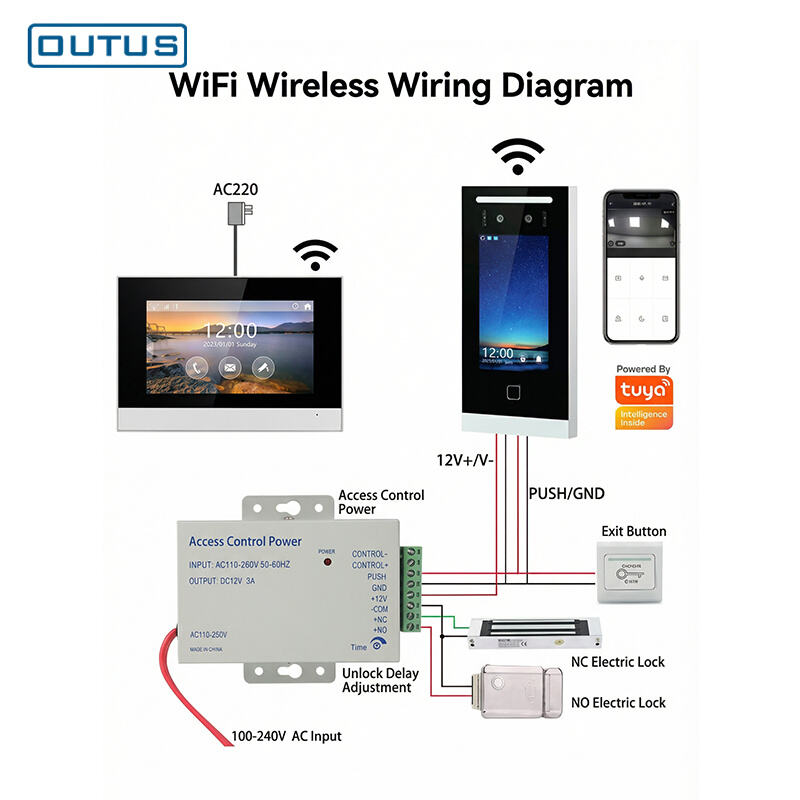

11.Smart linkage expansion, dockable with electronic locks and IP cameras, camera screen can be displayed on indoor monitor with priority, realizing integrated access control + monitoring.

12.Practical additional functions, supporting picture/video advertising display, customizable screensaver, balancing access control functions and commercial promotion needs.

13.Convenient system management, supporting OTA online upgrade, administrators can enter the background through face/engineer password, and easily configure users, permissions, networks and other parameters.

14.Precise time calibration, equipped with RTC real-time clock, supporting NTC network time automatic calibration, no error in time display.

15.Humanized design, supporting duress password unlocking, reverse input of the unlocking password can trigger an alarm to protect personal safety.

Tuya Smart Facial Recognition Outdoor Access Control with IntercomTuya Smart Facial Recognition Outdoor Access Control with Intercom
Why choose OuTus

Authentication

  • 37e065c38b4547585a484da1fa9f8507_05f76470e0be25c47b9367570f6a7298fedfae6bbcf30ef6eb8529be79782d20.png
  • b5f393b269bf5e8d51b6e89c1c528ec7_d65c8bab529ec652803e5cb9bbb8fd48c9279075a1e028d0508739ab930a9c02.png
  • c7ca8fef69012b145ed5d14d3d7e4cde_8e984a55faaca405c6dc85016fe450b41332f8326da4eb81ca7679fd4ec4133d.png
  • fe82f6e36e5d684b7ac8aefe73f581a4_e7a0f5dbc3d83b3d06500f44462cb9cd20e66a2cc24e37f5c69e826f0dcb892f.png
  • d40f02898fd60c201144619c3edae6f9_c83e84ecffe0795637634b8890d67745dcf7dae738e879364cc08e105f0c26d9.png

Technical data

Housing material Aluminum alloy, surface sandblasting process
Operation method Full screen touch, tempered glass material panel
Resolution 800*1280
Screen display 8-inch HD IPS display
CPU RV1109 Dual-core Cortex-A7 and RISC-V MCU
Memory 1G DDR3
Camera Dual 2MP lens,support backlight environment
Connection method LAN as default/ Wi-Fi & 4G are optional
Network Configuration DHCP, static manual settings
Video decoding H264/720P/1080P
Audio decoding G.711
Waterproof level IP65
Ringing ≥70dB
Working voltage DC 12V2A
Working Curent 400mA
Working temperature -30℃~+70℃

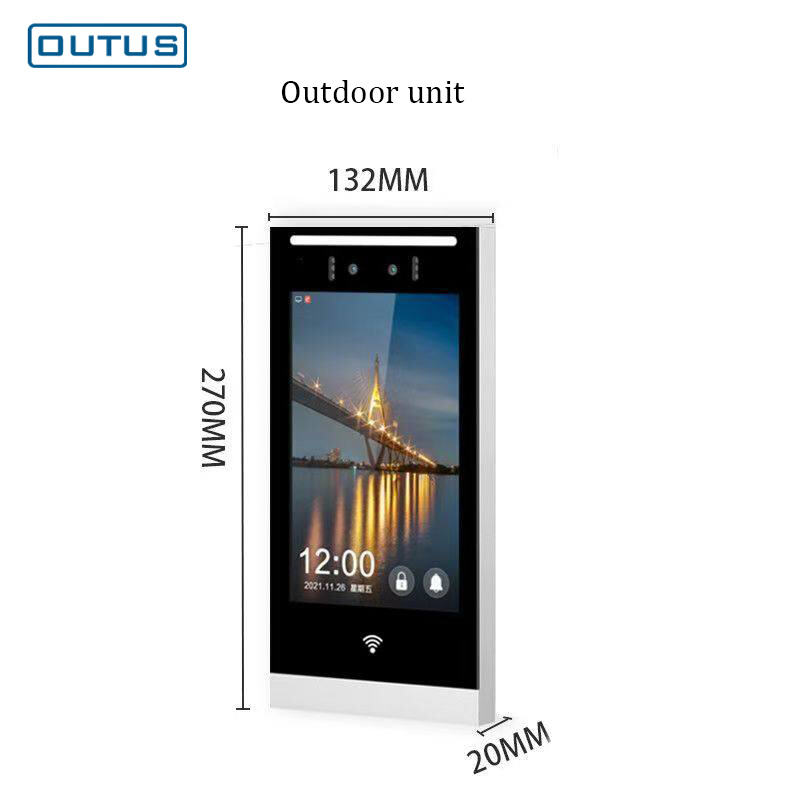

Device Size 270mm*132mm*20mm
