Load-bearing capacity 350kg, single door, double door, framed door and frameless glass door can be used
Standard track length 4.2m, other optional lengths are 2.1m, 2.5m, 3m, 4m, 5m, 6m

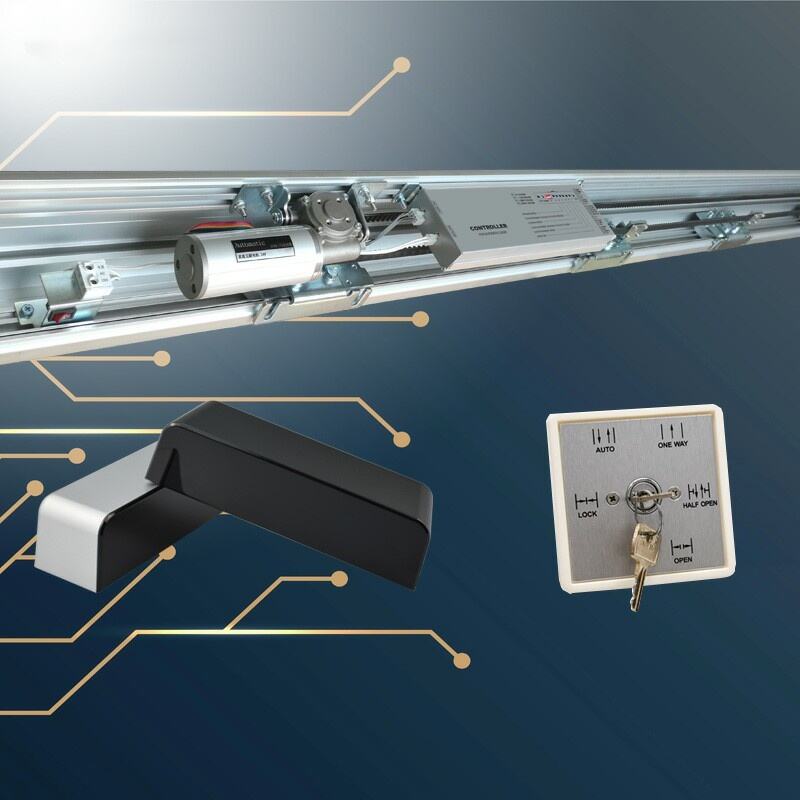

Can be used with different access control switches
Microcomputer control system, can control the door body to operate in the set way, realize multiple interfaces such as double door interlocking, and at the same time come with power-on self-check, rebound when encountering resistance, to prevent accidents of pinching people.

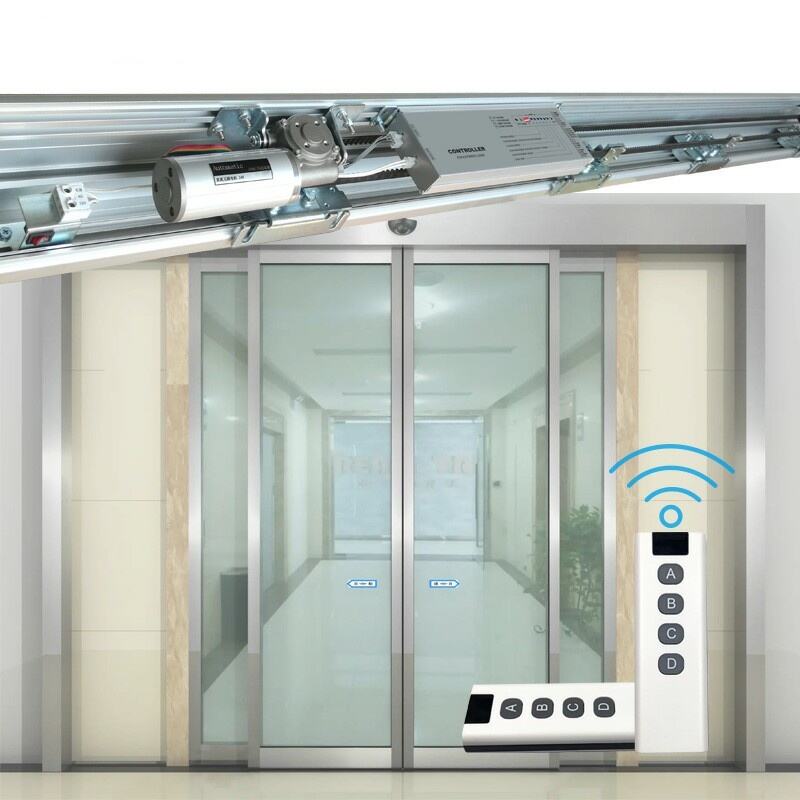

European heavy-duty automatic door units adopt modern design, use globally trusted high-power DC brushless motors and European mechanical components, the hanging wheels are made of imported high-strength nylon, with thickened aluminum alloy tracks, and the tracks are equipped with shock-absorbing strips to greatly reduce the noise of the hanging wheels running on the tracks. The unit has a load-bearing capacity of 2x250KG.
The European design has passed many tests and is suitable for large passages, large glass doors, heavy factory workshops and other places. It runs smoothly, is easy to install and maintain.
| Door leaf weight | 1x300kgs | 2x250kgs |
| Clean opening | 1000mm - 2800mm | 1800mm - 3800mm |
| Closed force: F | >100N | |
| Supply voltage | AC 220V±10%，50/60Hz | |
| Opening speed | 200 - 460mm/s (adjustable) | |
| Closing speed | 200 - 460mm/s (adjustable) | |
| Hold open time | 1 - 9s (adjustable) | |
| Push force | <100N | |
| Power consumption | <100W | |
| Environment temperature | -20℃ - +50℃ | |
