OUTUS Commercial Office Automatic Door System - Surface Mounted, for Lobby & Meeting Room

1. Silent Operation: Brushless motor + precision transmission, ultra-low noise, no interference to office & meeting environment

2. Microprocessor Intelligent Speed Control: Precisely adjust opening/closing speed, buffer stroke and hold-open time, smooth operation without shaking

3. Surface-Mounted No-Damage Installation: No grooving or wall removal, directly fixed, suitable for office decoration without modification

4. High Load & Strong Adaptation: 150kg for single leaf / 2×120kg for double leaves, compatible with office glass & aluminum doors

5. Dual-Door Interlocking Security: Supports dual-door linkage interlock, improving access control security of office areas

6. Brushless Motor Long Life: No mechanical wear, low failure rate, durable for high-frequency office use

7. Convenient Emergency Manual Operation: Manual thrust <40N, easy to push/pull when power off, ensuring office emergency passage

8. Wide Voltage Global Adaptation: AC110-220V universal, compatible with power supply systems of various office buildings

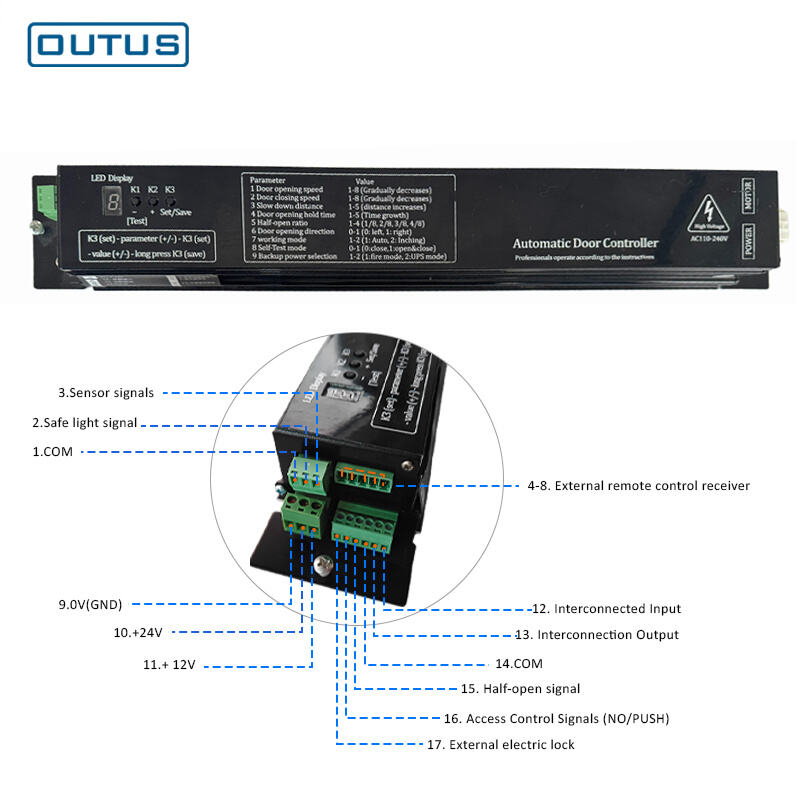

9. Multi-Function Expansion Compatibility: Supports access control, electric lock, safety light curtain, backup battery, meeting office security needs

10. Temperature Resistant Stable Operation: -20℃~50℃ working temperature, no fault for long-term operation in office environment

Products
Technical Data

Technical data

Door leaf	Single leaf	Double leaves
Weight of door leaf	Max. 150 kg	Max.2x120kg
Width of door leaf	DW=750-1600mm	DW=650-1250mm
Width of door opening	W=1450-3100 mm	W=2500-5000 mm
Method of Installation	Surface Installation
Supply power voltage	AC 110-220V±10%, 50/60 Hz
Opening Speed	150-460mm/s (adjustable)
Closing Speed	130-460mm/s (adjustable)
Door hold-open time	0-8s (adjustable)
Manual open/close force	<40N	<50N

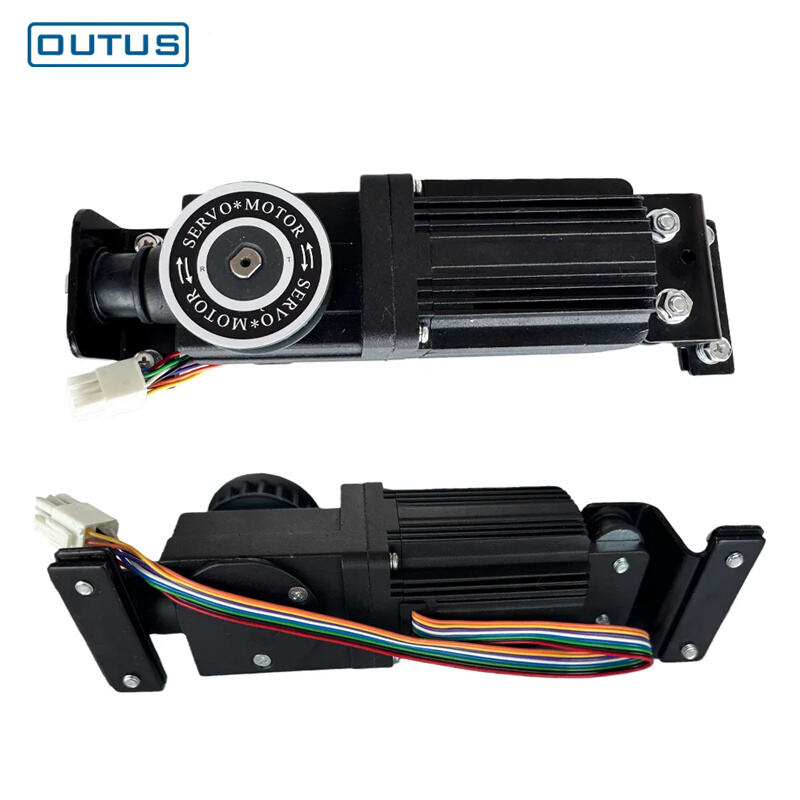

Motor	DC 24 V,60-70W(DC,brushless)
Working Environment temperature	-20℃~50℃

Product description

ORD150Pro Automatic Door Operator is a silent intelligent sliding door drive system designed for office buildings, company lobbies, offices and meeting rooms. Adopting microprocessor precise control and DC24V brushless motor, it runs with ultra-low noise and no mechanical wear, suitable for quiet office scenarios. Surface-mounted installation requires no wall damage, with max 150kg load for single leaf and 2×120kg for double leaves, compatible with all office glass/aluminum doors. It supports customized adjustment of opening/closing speed, buffer distance and hold-open time, equipped with dual-door interlocking and electric lock linkage, expandable with safety light curtain, backup battery and access control card reader, meeting security and passage needs of office spaces, an ideal solution for automatic door upgrading of modern office places.

Authentication

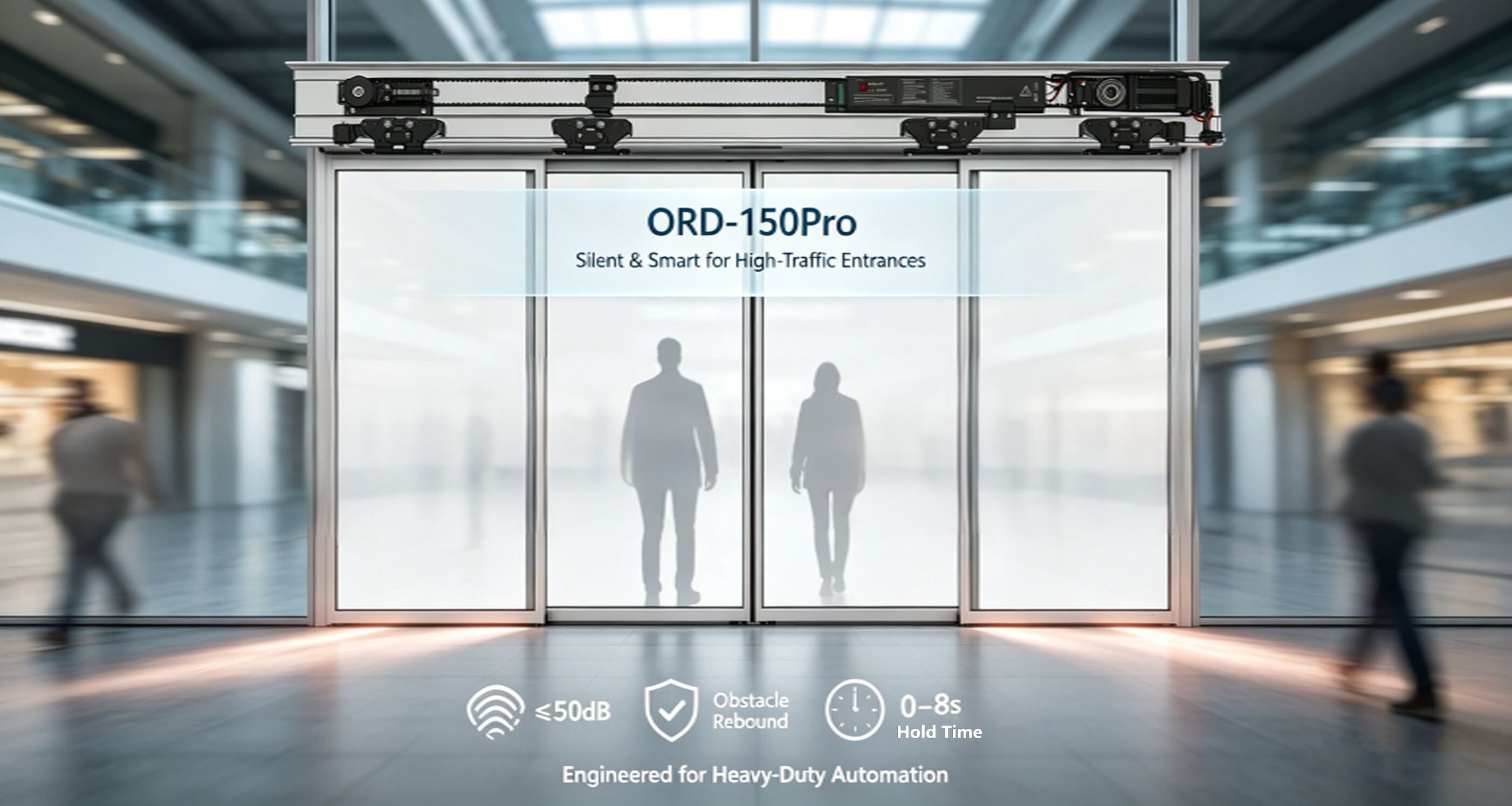

ORD150Pro Office Automatic Door Demo - Silent Open & Close for Office Lobby!

Here’s the open & close demo of ORD150Pro office exclusive automatic door operator!

The video shows the full open/close process of office building lobby automatic door: smooth and silent opening triggered by sensor, buffer deceleration without impact, hold-open time fits office pedestrian flow, closes precisely with no noise. Ultra-low noise operation without interfering office environment, microprocessor control ensures stable running, dual-door interlock improves office area security.

Surface-mounted installation with no wall damage, high load adapts to office glass doors, supports access control & electric lock expansion, an ideal drive solution for automatic doors of companies, office buildings and meeting rooms!
