OUTUS Smart Brushless Automatic Door Drive System - Wide Voltage for Multi-Scenario

1. Minimalist Aesthetic Body Design: Integrated streamlined guide rail, simple and exquisite appearance, suitable for various modern commercial space decoration styles

2. Intelligent Adaptive Operation Logic: Microprocessor automatically matches door parameters, smoother operation without jitter or shaking

3. Precision Buffer Braking Technology: Flexible deceleration at the end of opening/closing, avoiding door impact and prolonging service life of door and hardware

4. Ultra-Low Manual Thrust Design: Single leaf <40N, double leaves <50N, light push/pull when power off, more convenient for emergency passage

5. High-Efficiency Energy-Saving Brushless Motor: No brush wear, lower power consumption, no heating during continuous operation, energy-saving and durable

6. Modular Quick-Install Structure: Full-component snap-in installation, no complicated tools required, greatly shortening construction and debugging cycle

7. Full-Range Safety Protection Mechanism: Multiple obstacle detection, rebound when triggered, fully protect the safety of pedestrians

8. Wide Door Opening Adaptability: Compatible with various conventional and large-size door openings, stably driving both single and double-leaf doors

9. Quick Parameter Debugging Function: Knob-type visual adjustment, no professional software required, quick calibration of operation parameters on site

10. Long-Term Stable Weather Resistance: Anti-interference and dust-proof, no failure during long-term high-frequency operation, extremely low later maintenance cost

Products
Technical Data

Technical data

Door leaf	Single leaf	Double leaves
Weight of door leaf	Max.150 kg	Max. 2x120kg
Width of door leaf	DW=750-1600mm	DW=650-1250mm
Width of door opening	W=1450-3100 mm	W=2500-5000 mm
Method of Installation	Surface Installation
Supply power voltage	AC 110-220V±10%, 50/60 Hz
Opening Speed	150-460mm/s(adjustable)
Closing Speed	130-460mm/s (adjustable)
Door hold-open time	0-8s(adjustable)
Manual open/close force	<40N	<50N
Motor	DC 24 V.60-70W(DC,brushless)
Working Environment temperature	-20℃~50℃

Product description

The ORD150Pro Intelligent Automatic Door Operator is a high-end smart drive system for sliding doors designed for various commercial and public spaces. Adopting the new-generation microprocessor precise control technology and equipped with a DC24V brushless DC motor, it achieves core performances of silent operation, stable braking and strong load-bearing. The product adopts a surface-mounted minimalist installation structure without wall grooving or embedding, suitable for single/double-leaf sliding glass doors and aluminum alloy doors.

It supports full custom adjustment of opening/closing speed, buffer stroke and holding time, with basic protection functions such as obstacle rebound and safety anti-pinch. It can expand multi-function modules like safety light curtain, backup battery, access control linkage and remote control. With wide voltage global adaptation and stable operation in wide temperature range, it balances durability and aesthetics, making it an ideal drive solution for new installation and renovation of automatic doors in various commercial spaces.

Authentication

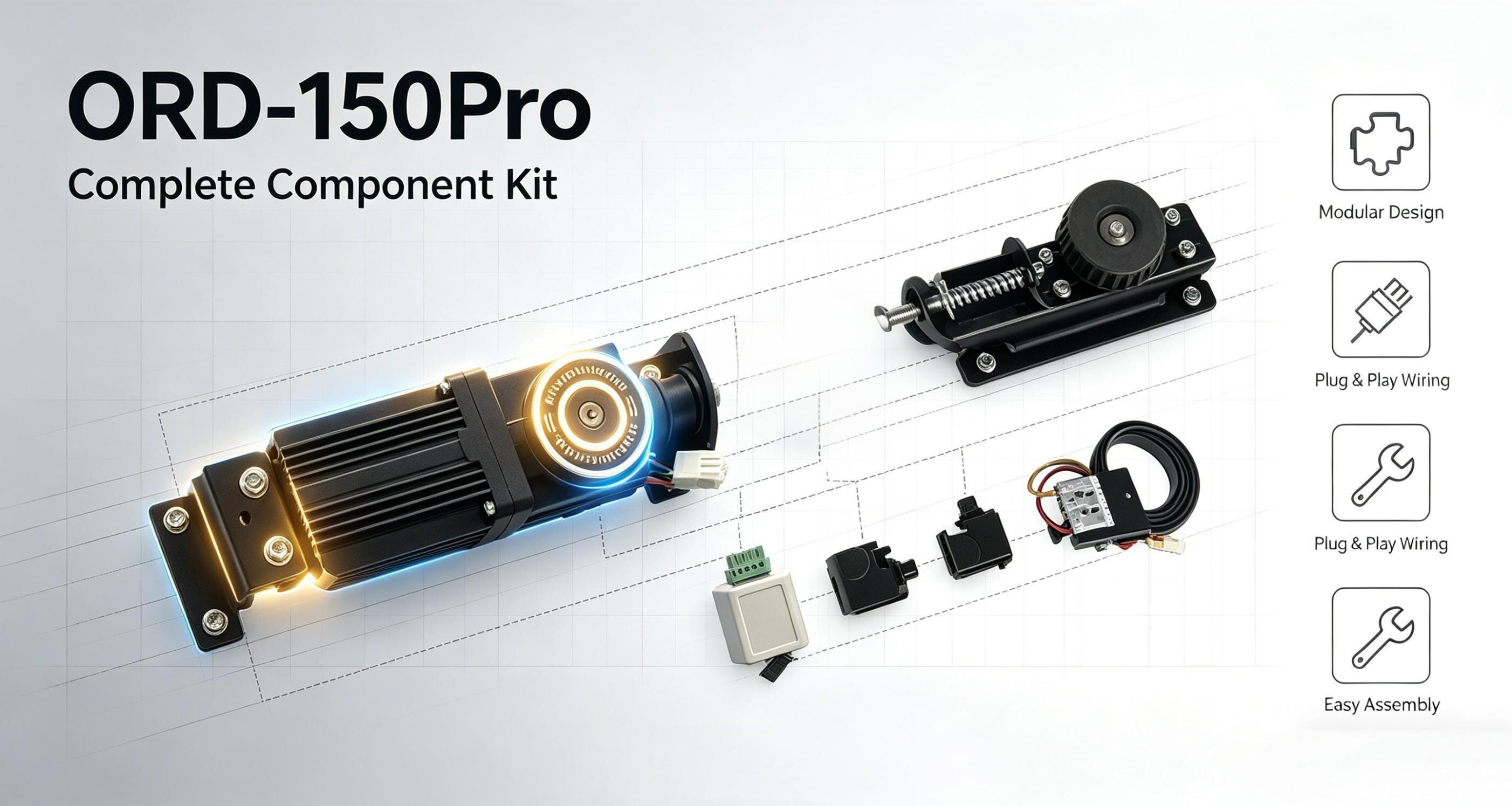

ORD150Pro Automatic Door Open & Close Demo - Hospital Entrance Real Shot!

Here comes the operation demo of ORD150Pro intelligent automatic door!

The video shows the full opening and closing process of the automatic door in the hospital entrance scene: the door opens smoothly after sensing, buffers and decelerates without impact, closes accurately and silently, and the obstacle rebound function is sensitive and reliable, with smooth and stable overall operation.

This is a commercial universal automatic door operator suitable for various commercial and public spaces, not a medical special model. The video is only a scenario-based operation effect display, and its core performances of silence, stability and safety can meet the passage needs of various places!
