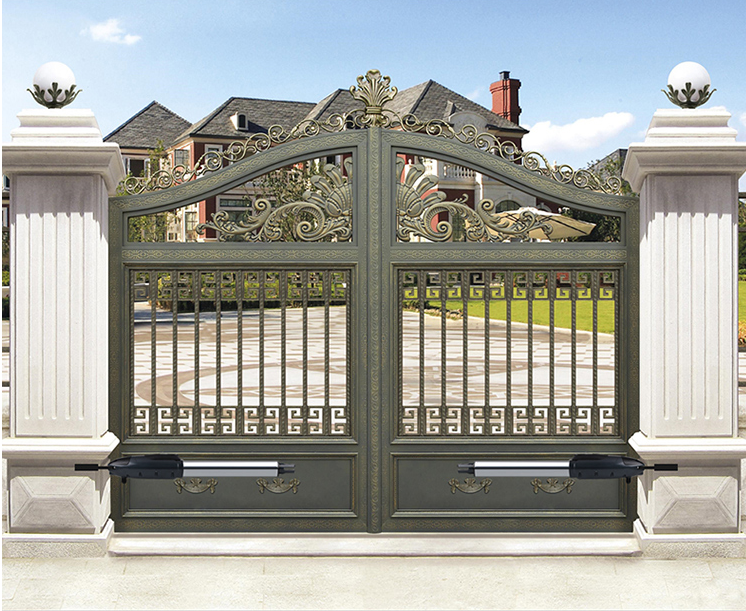

OUTUS CE & RoHS Certified Swing Gate Operator | 300KG Load, Anti-Crushing Safety System

✔ Powerful and versatile: A 24V motor and metal gearbox allow for a single leaf load of 300-900kg, suitable for doors within 5 meters, and both single- and double-leaf swing doors. It operates stably in temperatures ranging from -25°C to 55°C.

✔ Multi-control for greater convenience: Supports remote control, card swipe, and facial recognition, can be linked to security systems, and can even set auto-close times to meet diverse needs.

✔ Full protection for greater peace of mind: Automatic stop upon encountering obstacles, infrared detection for anti-pinch protection, built-in overload and timeout protection, and automatic locking when closing the door ensure both personal and property safety.

✔ Easy installation and low maintenance: Modular design eliminates the need for major door modifications, making installation quick. With no vulnerable parts, only basic daily inspections are required, ensuring low long-term cost.

Products
Technical Data

Technical data

Parameter	Specification
Gross Weight	24kg
Manufacturer Warranty	2year
Custom production cost
GENERAL CHARACTERISTICS
Motor voltage	24V DC/AC
Radio frequency	433MHz
Max power consumption	62w
Protection class	IP56
Installation	Use Intensive use Residential / collective installation Collective
Manual operation	Individual key
Climatic operating conditions	- 20°C / + 60°C
Output Type	Dry contact
Use	Intensive
Life Span	100,000 times
Min. Voltage	23V
Style	Modern
Colour	Black
Thrust force	3800 N
Greutate maxima suportata	450Kg
Rotational speed	The speed of the reducer is 13000 rpm before deceleration and 175 rpm after deceleration
Working stroke	450 mm
Rod speed	22~26s/90℃

Product description

The straight-arm door opener is a highly efficient electric drive designed specifically for all types of swing doors. It utilizes a motor-driven linkage mechanism to automatically open and close the door leaf. Its powerful power and flexible adaptability make it an ideal choice for applications such as villa courtyards, residential gates, and factory walls. It completely replaces the tedious manual operation of traditional door openings and opens, while its intelligent design elevates the entrance and exit management experience. Its core strengths lie in power performance, safety protection, and intelligent adaptability, balancing durability with convenience, perfectly meeting the diverse needs of homes and commercial spaces.

Authentication

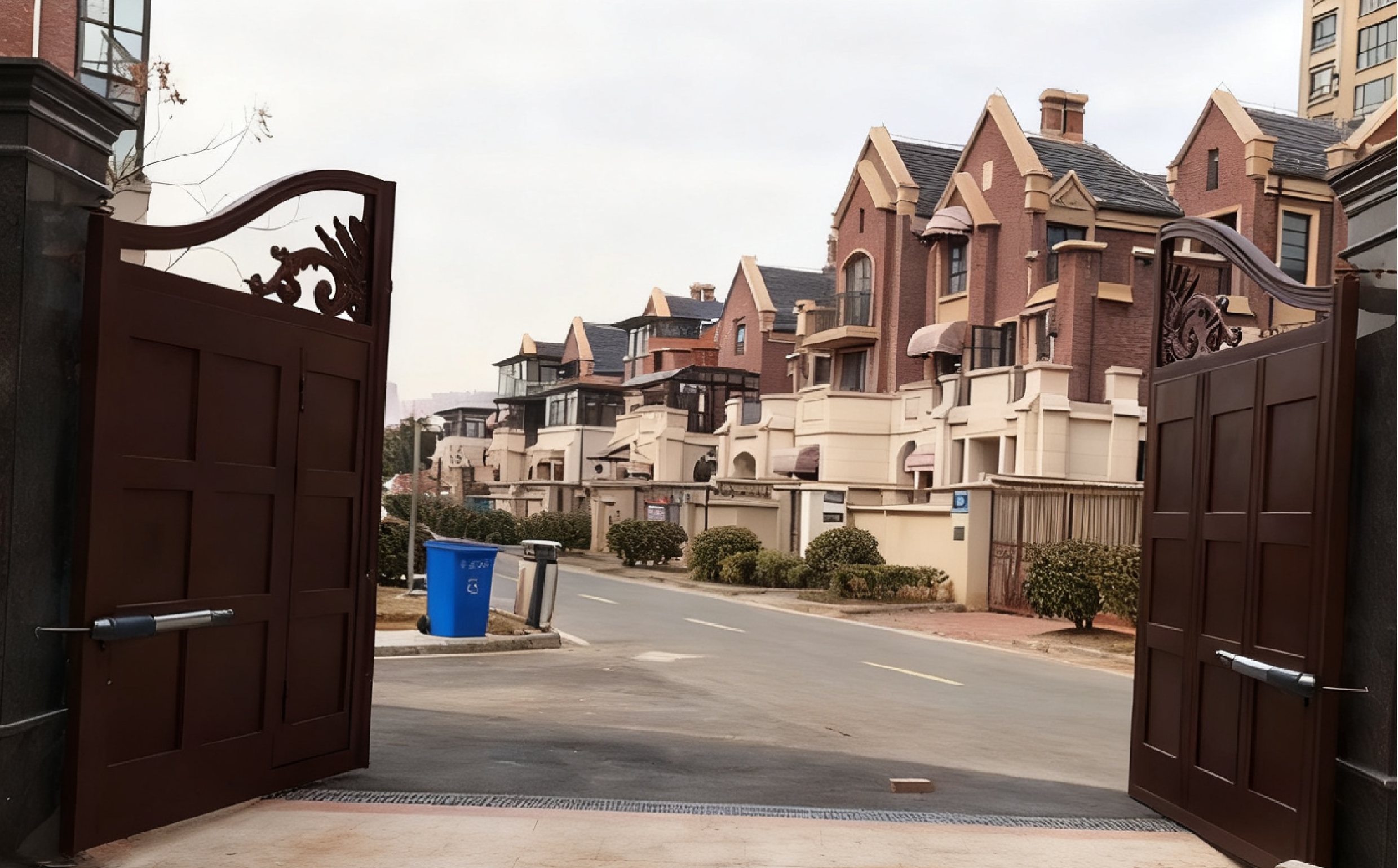

Smooth Operation Demonstration of a Straight-Arm Door Opener | Powerful Power, Smooth Opening and Closing

This video demonstrates the normal operation of a straight-arm door opener. After starting, the device opens smoothly and quietly, demonstrating powerful driving force and precise control. The straight-arm door opener's sturdy structure is suitable for a variety of door types, enabling smooth automatic opening and closing, ensuring safety, efficiency, and aesthetics. Whether used in villa courtyards, factory passageways, or commercial entrances, the straight-arm door opener provides a reliable, durable, and smooth automated entry and exit experience.
