OUTUS Swing Open Medical Radiation Protection Lead Door, X-Ray CT Room Shield Door

1. High Purity Lead Ultimate Shielding: 99.99% pure medical lead sheet, efficiently blocks X-ray, CT and all ionizing radiation

2. Seamless Zero Leakage Technology: Argon arc welding + 3-layer composite construction, no gap for absolutely no radiation leakage

3. Thick Steel Reinforced Frame: Heavy square steel fully welded frame, rust, impact and deformation resistant for long term heavy duty use

4. Silent Smooth Swing Mechanism: Special pressure bearing design, flexible quiet swing opening with zero noise and jitter

5. Premium Medical Grade Finish: 304 stainless steel / aluminum plastic cladding, corrosion resistant and easy disinfection

6. Medical Airtight Sanitary Performance: Full perimeter sealing for dust, moisture and sound insulation, maintains clean sterile environment

7. Multiple Smart Opening Options: Infrared, foot, hand sensor and access control available for convenient touchless access

8. Multiple Door Style Selection: Single swing, double swing and leaf-over styles for all radiology room sizes

9. Full Custom Thickness Range: Lead plate thickness 1-20mm customized for different radiation dosage requirements

10. Long Lasting Durable Lifespan: Industrial grade hardware, stable structure with permanent reliable radiation performance

Products
Technical Data

Technical data

Parameter Category	Specification
Product Name	Swing Open Medical Radiation Protection Lead Door

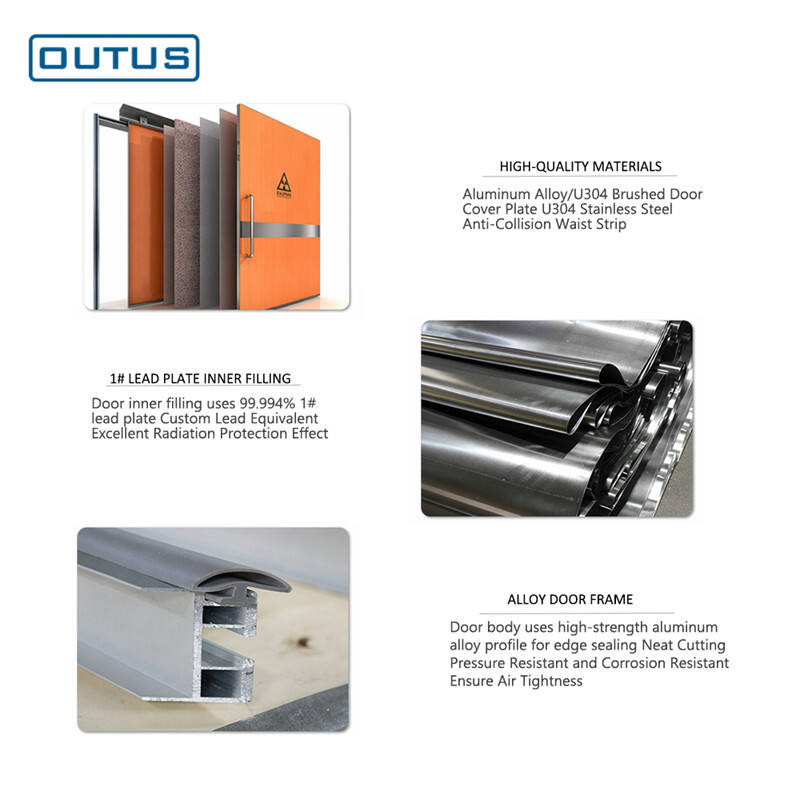

Core Shield Material	99.99% High Purity Medical Electrolytic Lead Sheet
Lead Thickness	1mm - 20mm Customizable
Outer Panel Material	304 Stainless Steel / Aluminum Plastic Board
Frame Construction	Thickened 4# Square Steel, 45° Full Welding
Sealing Technology	Three Layer Integrated Argon Arc Seamless Welding
Opening Mode	Manual Swing / Automatic Electric Swing
Available Door Type	Single Swing / Double Swing / Leaf Over Door
Opening Sensor Option	Infrared / Foot Pedal / Hand Sensor / Access Control
Standard Lead Sheet Size	1000×2000mm
Max Custom Door Size	Max Width 4000mm, Max Height 3000mm
Application Scenarios	Hospital X-Ray / DR / CT / DSA / Dental / Nuclear Medicine Room
Feature	Radiation Proof, Airtight, Sound Insulation, Easy Sanitization
Service Lifespan	≥ 20 Years Under Standard Medical Use

Product description

This Swing Type Medical Radiation Protection Lead Door is a professional radiation shielding door specially developed for hospital X-ray, DR, CT, dental, nuclear medicine and operating rooms.

The door core is built with 99.99% high purity electrolytic lead sheet with optional thickness from 1mm to 20mm, finished with premium 304 stainless steel or aluminum plastic exterior. The main frame adopts thickened 4# square steel with 45° full welding structure. Three-layer integrated seamless welding technology ensures zero gap and zero radiation leakage. Equipped with special heavy-duty pressure bearing for silent and smooth swing operation. It also delivers excellent airtight sealing, sound insulation and clean performance. Supports manual & automatic operation, with infrared, foot and hand sensor opening options. Fully compliant with strict radiation protection, hygiene and safety standards of all medical radiology facilities.
