Safety Beam Sensor Single/Double Beam - Anti-Sun Interference Infrared Photocell for Auto Door

This safety beam sensor is an infrared photoelectric induction device specially designed for automatic doors and access control systems. It is core-equipped with microcomputer control technology with high system integration and strong operational stability, supporting free switching control between single/double beams with a maximum detection distance of 10 meters. It can accurately detect beam occlusion and trigger signals to realize door anti-pinch and safety induction functions. The product adopts an internationally universal optical lens design with good light focusing and a reasonable control angle, paired with a German receiving filter, decoding and amplification system that can effectively resist natural sunlight interference with excellent anti-interference performance. The emitter head adopts low-consumption high-pulse emission technology for long-distance transmission and a long service life. The color-corresponding plug-in socket makes wiring simple and accurate, and it also has a receiving head short-circuit fault alarm function for timely fault reminders. With wide voltage AC/DC12-30V power supply adapted to various power environments, the output can flexibly select normally open/normally closed contact signals when the beam is blocked. Easy to install, it is perfectly suitable for the safety induction needs of various automatic doors and access control systems.

Products
Technical Data
Downloads

Product description

1. Free switching between single/double beams, optional control modes according to needs, suitable for different door control safety induction requirements

2. Equipped with German receiving filter system, effectively resists natural sunlight interference, stable work in complex light environments

3. Microcomputer control technology, high system integration, strong operational stability, accurate induction without false triggering

4. Max 10M long-distance detection, long transmission distance, suitable for large-space door control induction scenarios

5. Low-consumption high-pulse emission technology, low energy consumption of the emitter head, long service life, energy-saving and durable

6. Color-corresponding plug-in socket, simple and accurate wiring, no professional operation required, high installation efficiency

7. Internationally universal optical lens design, good light focusing and reasonable control angle, easier leveling and alignment

8. Receiving head short-circuit fault alarm, real-time fault reminder, convenient for timely maintenance to ensure normal equipment operation

9. Wide voltage AC/DC12-30V power supply, adapted to various power environments with strong scene compatibility

10. Normally open/normally closed contact signals optional for beam occlusion output, flexible connection to various automatic door control systems

11. Ultra-wide working temperature range -42℃~45℃, high/low temperature resistant, stable use in both indoor and outdoor scenarios

12. Both transmitter and receiver cables are 5.5 meters with sufficient length, adapted to different installation spacings for more flexible wiring

Authentication

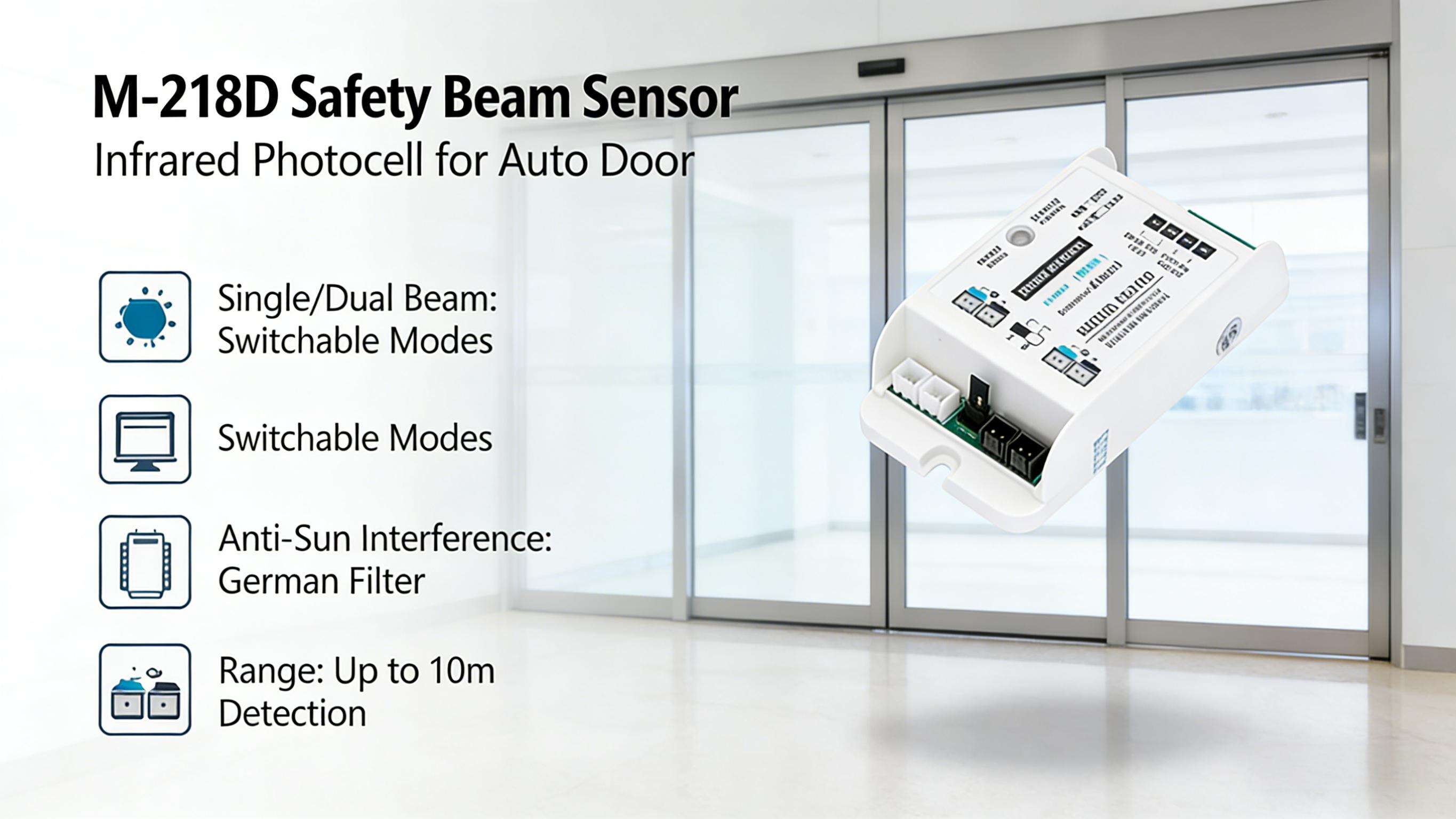

Safety Beam Sensor Unboxing Real Shot - Full Accessories & Product Details Shown!

The complete unboxing demo of this safety beam sensor for door control is here!The video shows the whole process from outer packaging to unboxing: first display the protective details of the product outer packaging, after unboxing, present the full set of accessories including controller, infrared emitter (blue), receiver (black), matching plug-in cables in turn, and take close-up shots of the core details such as product appearance, optical lens, color-corresponding plug-in wiring ports, DIP switches, clearly showing the position and design of single/double beam switching interface and normally open/normally closed signal selection key!The product is equipped with a complete set of accessories, no professional operation is required for wiring, with 10M long-distance detection and anti-sun interference, adapted to various automatic door control systems. The quality is visible upon unboxing, and the installation is convenient and worry-free!

Technical data

Power supply:	AC/DC 12-30V
Receiving cable length:	5.5 meters (black)
Static current:	18mA
Action current:	58mA
Max matched distance:	10 meters
Output connect:	NO/NC selection by dial switch
Beam light:	Single beam/double beam light
Working temperature:	-42℃~45℃
Working humidity:	10-90%RH
Dimension (main controller):	105.5(L)x53.4(W)x28.5(H)mm
Transmitting cable length:	5.5 meters (blue)
Dimension (Electric eye):	19(L)x13(D)mm
