12V Embedded Electric Bolt Lock - Special Access Control Electric Lock for Frame Doors & Frameless Glass Doors

1. Embedded Installation, Elegant Appearance：Built-in installation design, no damage to door appearance, compatible with frame doors and frameless glass doors (with auxiliary brackets), clean and beautiful after installation;

2. High-Quality Magnetic Technology, Durable & Stable：Adopts top-quality magnetic materials and special processing techniques for magnetic components, with stable locking, strong anti-interference ability and long service life;

3. 12V Standard Power Supply, Access Control Compatible：Standard 12VDC power supply, perfectly compatible with various access controllers and power supply systems, plug-and-play, adapting to mainstream access control solutions;

4. Power-On Locking, Safe & Reliable：Power-on locking mode, automatically unlocks when power off, complying with fire emergency escape requirements and ensuring personnel safety;

5. 180° Large Opening Angle, Smooth Passage：Supports 180° opening angle, adapting to various passage doors, unobstructed passage, meeting high-frequency use needs;

6. 0-Second Delay Response, Fast Reaction：0-second delay function, quick locking/unlocking response without delay, adapting to efficient passage in high-traffic scenarios;

7. Compact Size, Easy Installation：Compact lock body size of 203×34×40mm, simple slotting installation, equipped with screws, induction clasps and other accessories for efficient construction.

Products
Technical Data
Downloads

Technical data

Voltage	Start-up current	Working current	Locking mode	Open degree	Delay function	Lock size
12VDC	450mA	450mA	Power-on locking	180°	0S	203×34×40mm

Product description

This electric bolt lock is an access control electric lock specially designed for scenarios such as office buildings and community entrances. Adopting high-quality magnetic materials and precision processing technology, it supports embedded installation with a simple and elegant appearance, and is compatible with frame doors and frameless glass doors (with relevant auxiliary supports). Powered by 12VDC, it features a power-on locking mode, and can be used with access controllers and power supplies to realize automatic access control management. With a 180° opening angle and 0-second delay function, the lock body has a compact size and is easy to install. It is widely used in passage access control systems in offices, residences, commercial places and other scenarios, providing a safe and reliable electric locking solution for entrances and exits.

Authentication

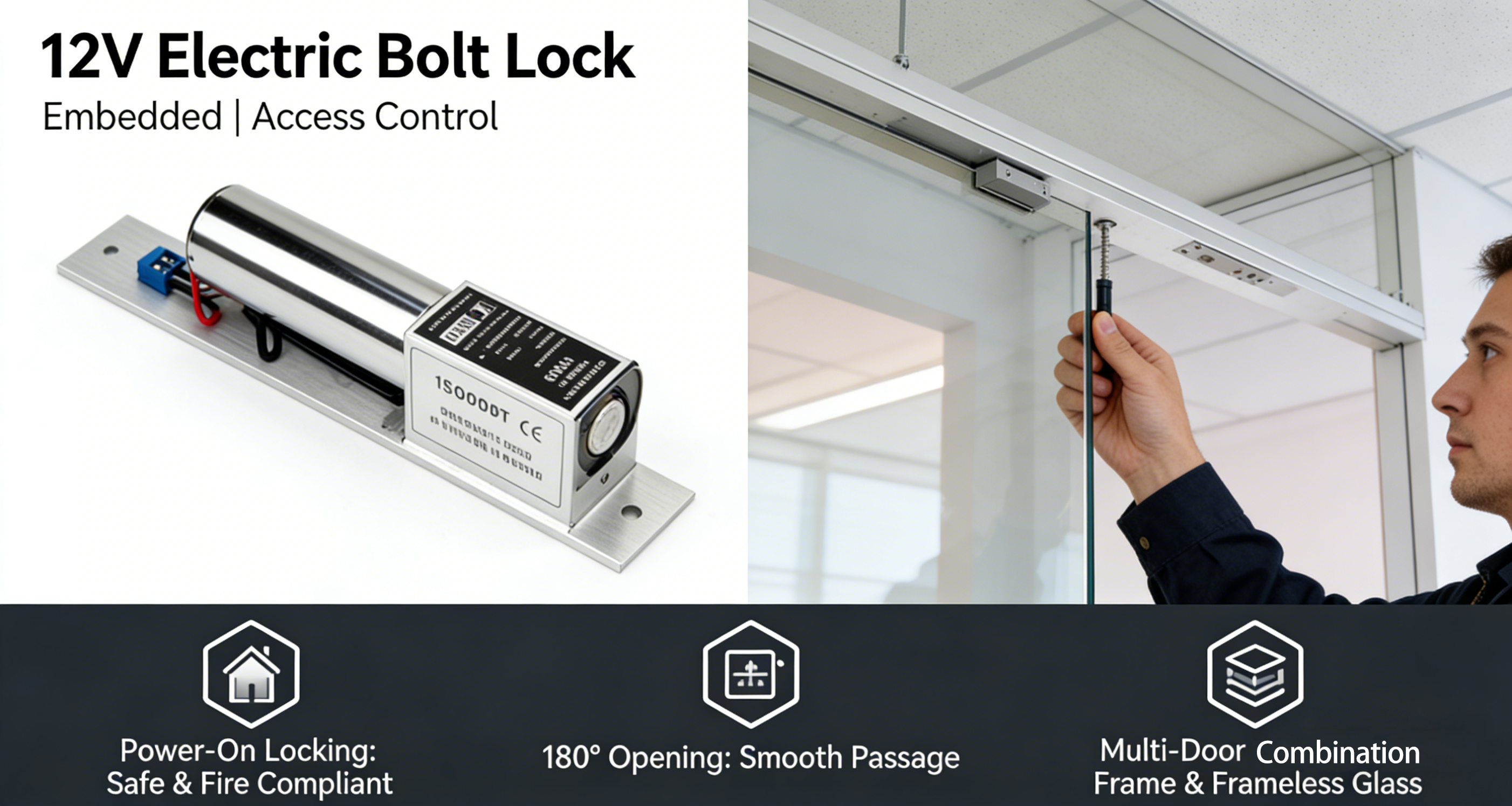

12V Embedded Electric Bolt Lock - Appearance Details Display

This video is an equipment display and function demonstration of the 12V embedded electric bolt lock, comprehensively presenting the product's appearance details, installation adaptability and access control linkage effect. The video showcases one by one: ① The metallic texture appearance and compact size (203×34×40mm) of the lock body; ② The embedded installation structure and adaptation effect for frameless glass doors/frame doors; ③ The wiring diagram (Black GND, Red +12V) and the linkage logic with access controller and power supply; ④ The actual operation demonstration of power-on locking and power-off unlocking; ⑤ The display of all original accessories (electric bolt lock, stainless steel cover, induction clasp, screws, instruction manual). Adopting high-quality magnetic materials, the product features a 180° large opening angle and 0-second delay response, perfectly adapting to the access control needs of office buildings, community entrances and other scenarios, and is a reliable locking choice for passage access control systems. Follow us for more electric bolt lock installation tutorials and access control system matching schemes!
