Microwave Sensor for Automatic Door - Adjustable Detection Range Motion Detector

This microwave sensor is a high-sensitivity induction accessory specially designed for automatic doors, adopting 24.125GHz core microwave detection technology to accurately detect human motion (minimum detection speed 5cm/s), suitable for the induction opening needs of various automatic doors. The product supports free adjustment of detection range and induction sensitivity, with flexibly tunable detection angles (0-90° longitudinal, -30~+30° lateral), a maximum installation height of 3.5m, and an ultra-large detection range of 8m*4m at an installation height of 2.2m. It is compatible with AC12~30V/DC12~36V wide voltage power supply, with IP54 dust and water resistance rating, and a durable ABS plastic shell. It can work stably in the environment of -20℃~+55℃ with excellent anti-interference performance, and features simple installation and wiring. Used with automatic doors, it has accurate induction and fast response, making it an excellent supporting accessory for human motion induction of automatic doors.

Products
Technical Data
Downloads

Product description

1. 24.125GHz microwave technology, accurate human motion detection, minimum induction speed 5cm/s

2. Adjustable detection range, up to 8m*4m at 2.2m installation height, fits different scenarios

3. Flexibly tunable angles, 0-90° longitudinal/-30~+30° lateral, no induction blind spots

4. Knob-adjustable sensitivity, precise matching on demand, avoid false/missed induction

5. Wide voltage support, AC12~30V/DC12~36V, compatible with all auto door power supplies

6. IP54 dust & water resistance, resistant to daily moisture and dust, for indoor/semi-outdoor use

7. 0.5S short delay, fast response after induction, timely auto door opening

8. -20℃~+55℃ wide temperature operation, high/low temperature resistant, stable in all climates

9. Excellent anti-interference, compliant with EMC/R&TE (1995/5/EC/89/366/EEC), avoid external interference

10. ABS plastic shell, sturdy and wear-resistant, minimalist silver design, fits all door types

11. Easy installation, max 3.5m installation height, quick wiring and simple debugging

12. 1A high current output, max switching power 30W(DC)/60VA(AC), strong compatibility

Authentication

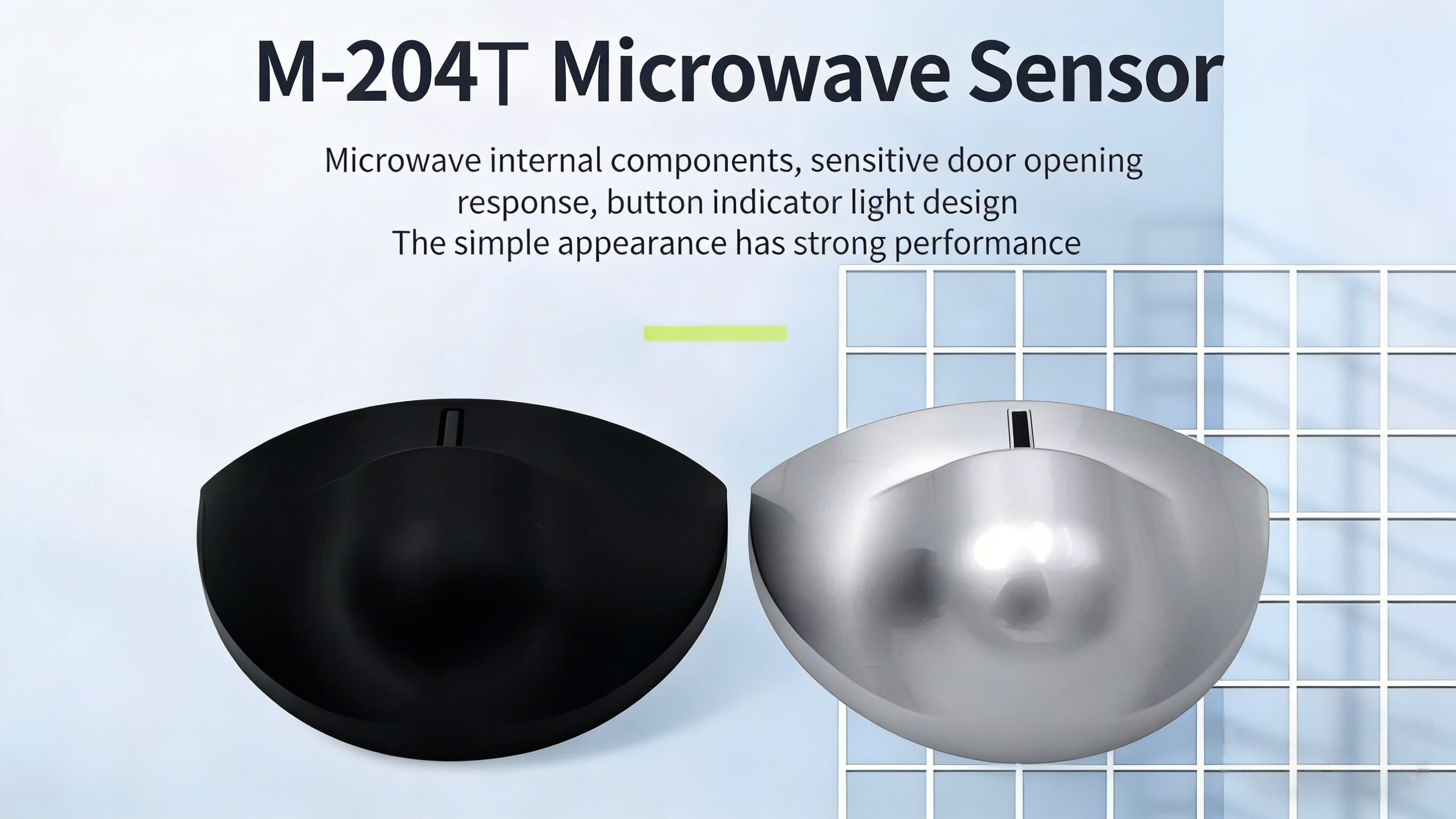

Auto Door Microwave Detector - Open on Human Pass Real Shot

Real-scene usage of this 24G microwave sensor for automatic door is here! 🚪 The video shows the sensor installed on the automatic door in real scene: when people approach/enter the induction area, the 24.125GHz microwave technology detects human motion instantly and accurately, the door opens smoothly with zero delay and no jitter, and closes normally when people leave, with stable induction and no false/missed detection throughout! The sensor supports free adjustment of detection range, sensitivity and induction angle, is compatible with all automatic doors with AC/DC wide voltage, features IP54 dust and water resistance and stable work at -20℃~+55℃. Install it on automatic doors of offices, shops and residential communities, and easily realize intelligent human motion induction door opening, convenient and worry-free!

Technical data

Frequency:	24.125GHz
Launch frequency density:	5mW/cm2
Installation Height:	3M(MAX)
Installation Angle:	0-90 degree(lengthways) -30 to +30(lateral)
Technology:	Microwaveµwave disposer
Transmitting power:	20dBm EIRP
Detection Mode:	Motion
Min detection speed:	5cm/s
Power:	2W(VA)
Detection range:	8m*4m(Installation Height 2.2M)
Maximum voltage:	42AC-60V DC
Maximum Current:	1A
Retention time:	0.5S
Working temperature:	-20 C to+55 C
Sheating material:	ABS plastic
Maximum switching power:	30W(DC)/60VA(AC)
Guide line:	2.5M
Protection class:	IP54
Color:	silvery
Anti-interference performance:	R&TTE 1995/5/EC.EMC 89/366/EEC
Power Voltage:	12V to 30V AC+/-10% (50Hz to 60Hz) : 12V to 36V
DCSize:	120mm(W)X 80mm(H)X 50mm(D)
