OUTUS ES200e Self-Learning Door Controller – 4 Modes 100-Event Log CE

1. One-Key Intelligent Self-Learning, Zero-Threshold Debugging：Press the learning key after power-on to automatically memorize the door stroke, no professional programming required, doubling the installation and debugging efficiency;

2. Full Compatibility with Peripherals, High Expandability：Seamless connection with radar, safety light barrier, electric lock, backup power, emergency stop switch, meeting the multi-scenario functional needs of single/double leaf doors;

3. Visual Parameter Regulation, Flexible Adaptation：Digital display + multi-key operation, free adjustment of opening/closing speed, holding time, operation mode and other parameters, adapting to different passenger flow scenarios;

4. Multiple Safety Protections, Worry-Free Operation：Built-in protection for motor overcurrent, door jamming and sensor failure, combined with emergency stop interface and anti-pinch signal port, fully protecting passage safety;

5. Intelligent Fault Diagnosis, Convenient Maintenance：Supports storage of 10 historical faults and real-time fault code display, quickly locating problems and reducing later maintenance costs;

6. Standardized Wiring Design, Efficient Installation：Clear terminal identification + modular wiring scheme, professionals can quickly complete wiring and peripheral connection, shortening the construction cycle;

7. Multi-Mode Operation Adaptation, Full Scene Coverage：Supports multiple operation modes such as automatic/one-way opening/partial opening/permanent opening, meeting the needs of different places;

8. Wide Voltage Adaptation, Stable & Durable：Adapts to AC230V mains input and DC27V peripheral power supply, stable working performance, suitable for complex power grid environments.

Products
Technical Data
Downloads

Technical data

Door Parameters (ES200 EASY)
1-panel sliding door – Transit width LW	700-3000 mm
1-panel sliding door – Door panel weight	Max 120Kg*1
2-panel sliding door – Transit width LW	800-3000 mm
2-panel sliding door – Door panel weight	Max 100KG*2
Technical Parameter
Height	100 mm
Depth	180 mm
Opening and closing force	Max 150N
Opening speed (incremental setting)	10-50 cm/s
Closing speed (incremental setting)	10-40 cm/s
Hold-open time	0.5-30sec
Mains voltage, frequency	230 V, 50/60 Hz
Power consumption	180 W
International protection	IP 20
Tested according to low-voltage guidelines	⚫

Product description

The ES200e Automatic Door Motor Controller is a highly adaptable core control component specially designed for commercial and industrial automatic door systems, with "easy operation + stable performance" as the core design concept, adapting to various sliding door scenarios. The product supports one-key intelligent self-learning function, which can automatically memorize the door operation trajectory after power-on without complex debugging; adopting standardized terminal definition and modular wiring design, it is compatible with all types of peripherals such as radar sensors, safety light barriers, electric locks, backup batteries and emergency stop switches, and can be quickly installed and connected by professionals. Equipped with a digital display and multi-function operation buttons, core parameters such as opening/closing speed, holding time and operation mode can be adjusted visually. It also supports storage of 10 fault information and real-time fault code display, combined with multiple protection mechanisms such as motor overcurrent, door jamming and sensor failure, ensuring safe and reliable operation and convenient maintenance. It is the preferred control solution for automatic door systems in shopping malls, office buildings, public passages, industrial plants and other places.

Authentication

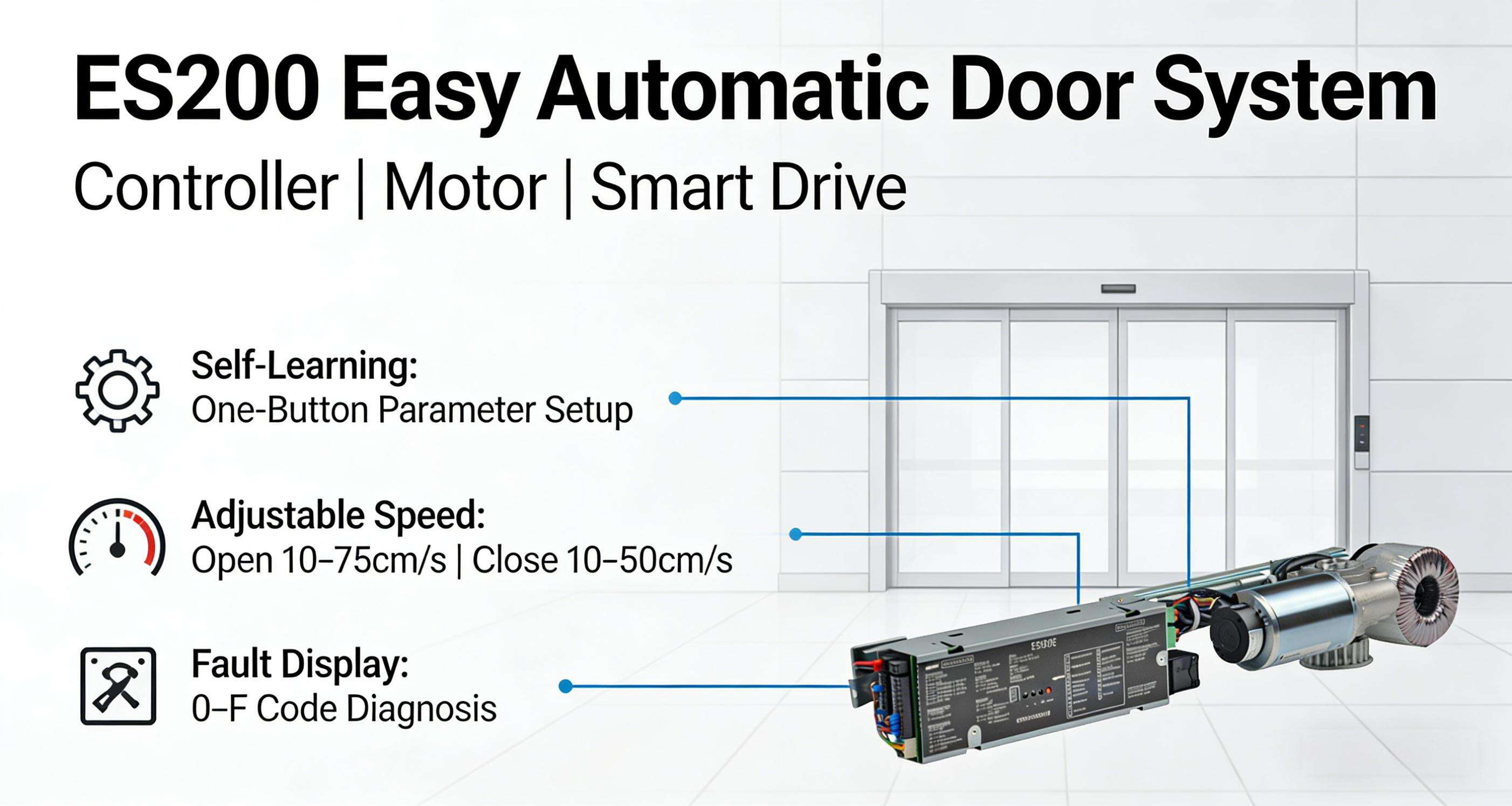

ES200e Automatic Door Motor Controller - Full Set of Original Accessories Details Display

This video is a HD real-shot display of the full set of original accessories for the ES200e Automatic Door Motor Controller, comprehensively presenting the details, specifications and adaptability of the core accessories of the controller. The video showcases one by one: ① Controller main unit (with digital display and operation buttons); ② Standardized wiring terminal set; ③ Motor and encoder connection harness; ④ Special adapter plugs for radar/sensors; ⑤ Backup battery connection cable; ⑥ Fixing screws and mounting clips; ⑦ Program switch and emergency stop button accessories. All accessories are custom-made for ES200e, selected with high-quality materials, accurately matching the core functions of the controller such as intelligent self-learning and multi-mode operation, and perfectly compatible with various peripheral connection needs. The standardized accessory design enables quick installation and connection, with clear and easy-to-understand terminal identification, greatly improving construction efficiency, ensuring seamless connection between the controller, door body and peripherals, and guaranteeing long-term stable operation of the automatic door system. Follow us for ES200e controller installation tutorials, parameter debugging and troubleshooting skills!
