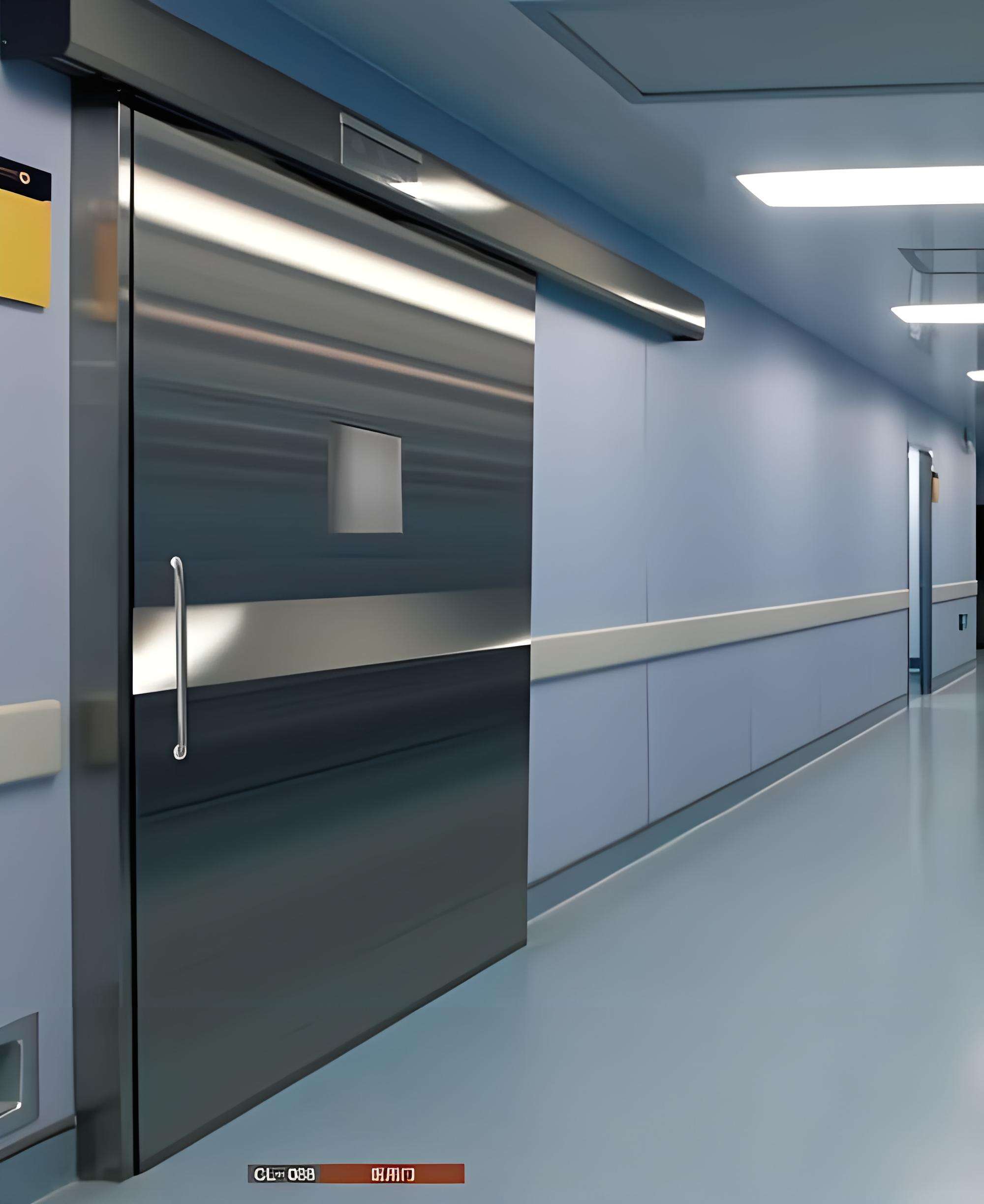

OUTUS Hospital Hermetic Sliding Door | Antibacterial Steel, CE Certified for OR & Patient Ward

Widely applicable—suitable for radiation protection and protective doors in hospital CT rooms, DSA rooms, X-ray rooms, C-arm rooms, DR rooms, and CR rooms. Stronger Structure - The main frame is constructed from thickened 4# steel square tubes welded at 45° angles. After rust removal and anti-rust treatment, medical metal lead sheets (with a lead content of up to 99.99%) are applied on both sides. The exterior is finished with high-quality 304 stainless steel, enhancing both the aesthetics of the protective door and its impact resistance and mechanical strength.

Enhanced Sealing and Radiation Protection - The protective layer is welded using argon arc welding, leaving no gaps to prevent radiation leakage! Three-layer fusion technology, with stainless steel sheets, 1#-5# lead sheets, and stainless steel square steel, creates a high-strength, high-quality radiation-proof door.

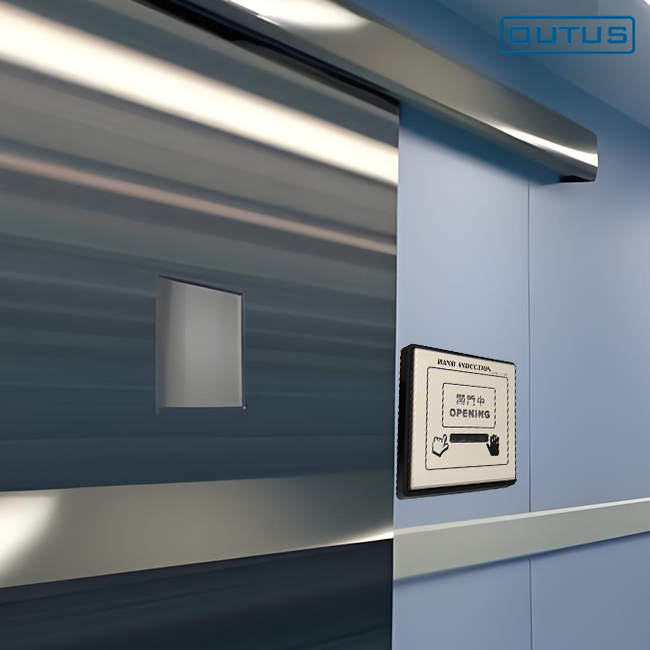

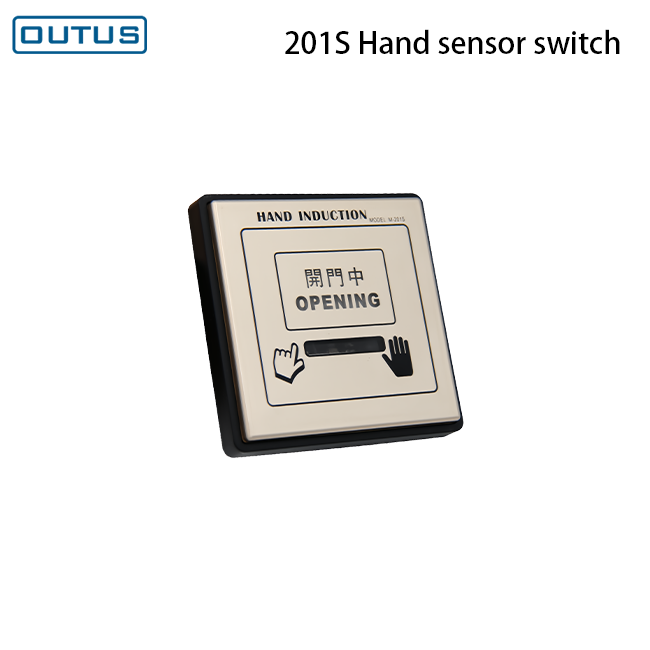

Automated Design - The swing-hinged protective door features a special pressure bearing for smooth and silent opening and closing. The sliding door utilizes a top-hung, silent track design with guide bearings for smooth and quiet opening and closing. A variety of opening sensors are available, including infrared, foot pedal, and hand sensor.

Products
Technical Data
Downloads

Product description

Radiation-proof doors are primarily used in hospital X-ray rooms, DR rooms, CT rooms, dental clinics, dental clinics, and operating rooms. Their exterior materials are primarily aluminum-plastic panels and stainless steel. Styles include double-leaf, swing, sliding, and double-leaf doors.

Currently, radiation-proof lead doors are made from rolled lead sheets. Common thicknesses in China range from 1 to 20 mm, with common sizes of 1000 x 2000 mm.

The best domestic machines can produce doors up to 1300 mm wide and 8000 mm long. They are typically made from 1# electrolytic lead, though recycled lead is also available.
