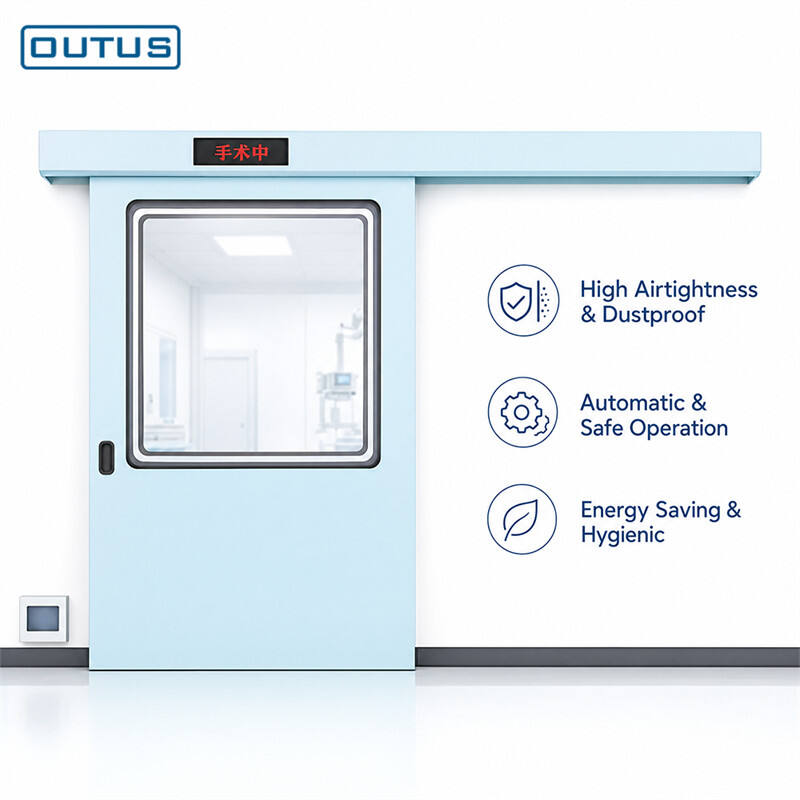

OUTUS Semi-Glass Air Tight Medical Door, Operating Room Hermetic Clean Door

1. Semi-Glass Transparent Observation: Large tempered glass viewing window, allows real-time interior monitoring without opening the door

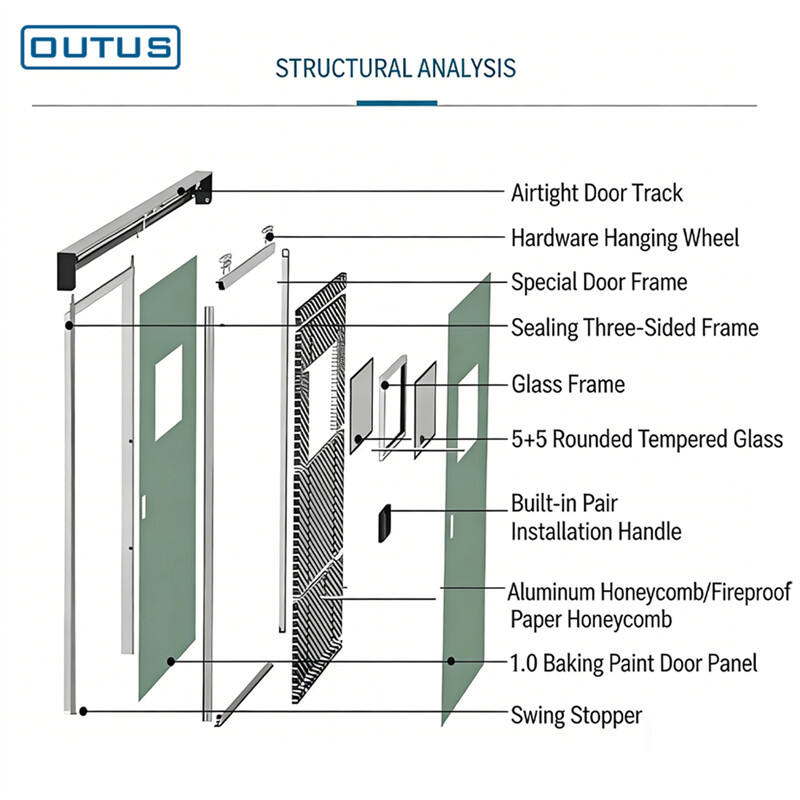

2. Ultimate Triple Airtight Sealing: Special three-side sealing frame + full weather strips, perfect tight closing to maintain dust-free hermetic operating room environment

3. Medical Grade Sanitary & Antibacterial: Smooth painted door surface, easy to sanitize and disinfect, dust resistant, prevents bacterial growth and cross infection

4. Heavy Duty Durable Structure: Thick painted panel + honeycomb core, impact resistant, moisture & fire proof, long lasting under high frequency hospital use

5. Full Range Safety Protection: Infrared obstacle rebound & anti-pinch sensor with safety photocell, fully protect patient and staff safety

6. Multiple Intelligent Access Options: Available with light sensor, radar, fingerprint, card access, microwave induction and push button opening

7. Ultra Quiet Medical Operation: Dedicated airtight hanger wheel track + premium motor, smooth low noise operation without disturbing quiet surgical environment

8. Optional Radiation Shielding: Customizable lead lining option for X-ray and radiology operating room radiation protection

9. Premium Medical Aesthetic: Integrated clean medical finish with surgery status indicator light, perfectly matches hospital decoration style

10. Flexible Custom Sizing: Multiple standard sizes available, fully customizable for special door openings, easy on-site installation

Products
Technical Data

Technical data

Specification Category	Detailed Data
Product Name	Semi-Glass Hermetic Airtight Medical Operating Room Door
Standard Available Sizes	900×2100 / 1000×2100 / 1100×2100 / 1200×2100 / 1300×2100 / 1400×2100 / 1500×2100mm
Customization	Full size custom supported
Door Panel Material	1.0mm Baking Paint Steel Plate + Aluminum / Fireproof Honeycomb Core
Glass Window	5+5 Rounded Corner Tempered Safety Glass
Track & Hanger	High Strength Aluminum Alloy / SUS304 Stainless Steel
Sealing System	Triple Side Hermetic Weather Seal Strips
Opening Methods	Light Sensor / Radar / Card & Password / Fingerprint / Microwave / Push Button
Safety Features	Infrared Anti-Collision, Obstacle Rebound, Anti-Pinch Function
Optional Function	Radiation Protection Lead Plate Customization
Additional Design	"Surgery In Progress" LED Indicator Light
Operation Noise	≤ 45dB
Application Scene	Hospital Operating Room, ICU, Clean Room, Sterilization Room, Lab
Working Life	≥ 20 Years Under Regular Medical Maintenance

Product description

This Semi-Glass Hermetic Medical Air Tight Door is a high-end purification airtight door specially developed for hospital operating rooms, ICU wards, sterilization rooms and medical clean areas. The door body adopts 1.0mm thick painted panel with aluminum honeycomb / fireproof paper honeycomb inner filling, paired with large 5+5 rounded tempered glass observation window, balancing clear observation and excellent airtight performance.

Equipped with dedicated airtight track and triple sealing frame structure, it achieves tight multi-layer sealing when fully closed, effectively blocking air convection, dust, bacteria and cross-contamination. With medical grade drive system for ultra quiet and stable operation, it supports multiple intelligent access modes, built-in anti-pinch, infrared safety protection and optional radiation shielding. Fully compliant with strict medical standards for dust-free, cleanliness, sound insulation and epidemic prevention, it is the ideal core door solution for modern hospital clean spaces.

Authentication

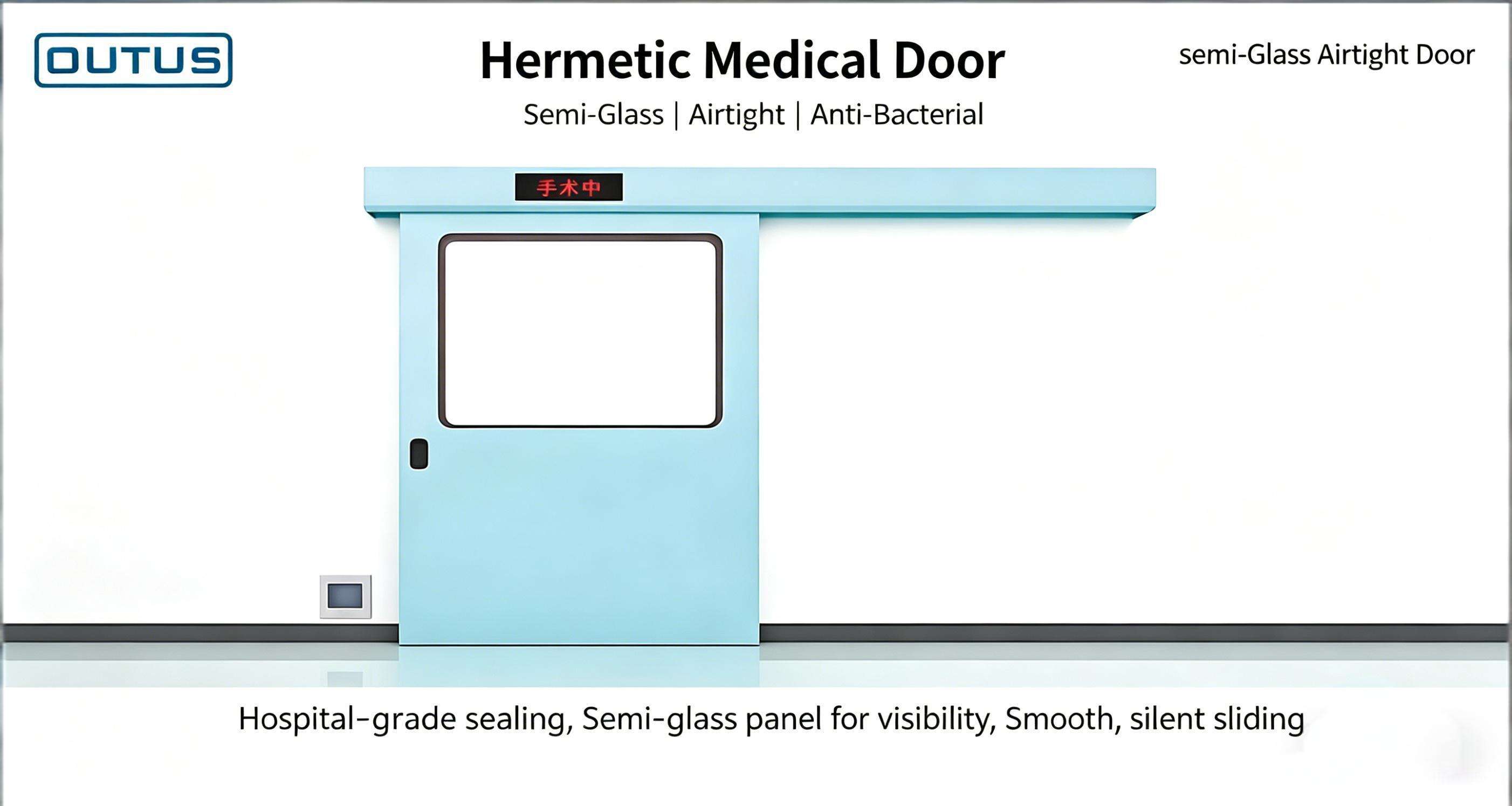

Semi-Glass Airtight Medical Door Opening Demo, Clean & Hermetic For OR

Real full opening demo of semi-glass hermetic operating room door! Transparent viewing, ultimate airtight sealing, silent smart opening, exclusive for hospital clean operating rooms!
