Zinc Alloy Waterproof Access Control Keypad - PIN/Card Unlock for Magnetic Lock

This is an industrial-grade single door standalone metal keypad access control all-in-one machine, featuring a zinc alloy electroplated vandal-proof shell and IP68 ultra-high waterproof rating, which can work stably in an ultra-wide temperature range of -45℃~60℃ and is suitable for harsh indoor and outdoor scenarios. The device supports three unlock methods: PIN code, card swiping, and card+PIN code. The built-in card reader is compatible with 125KHz EM cards and 13.56MHz Mifare cards, with a maximum storage of 2000 users, and is equipped with a backlit metal keypad for easy operation. It has built-in Wiegand 26-bit input/output, can be connected to an external card reader or access controller, supports multi-gear adjustment of access output time and alarm time, and has magnetic lock output short circuit protection, low power consumption operation, sound and light status prompts and other functions. With simple programming operation and easy installation, it is suitable for single door access control needs in shops, residences, factories, banks, prisons and other scenarios.

Products
Technical Data
Downloads

Product description

1. IP68 waterproof + zinc alloy vandal-proof shell, durable, suitable for harsh indoor/outdoor environments

2. 3 unlock methods, PIN/card/card+PIN, optional on demand, safe and convenient

3. 2000 large user capacity, compatible with 125KHz EM/13.56MHz Mifare cards, for large scenarios

4. Wiegand 26-bit input/output, connectable to external readers/controllers, strong expandability

5. Backlit metal keypad, operable in dim light, clear key feedback

6. Ultra-wide temperature -45℃~60℃, 10%-90%RH humidity, stable operation in all climates

7. Magnetic lock short circuit protection, protect device and lock, safer to use

8. 0-99s adjustable access output time, match different access unlock logic

9. Low power consumption, 25±5mA standby, energy-saving and long-lasting

10. Sound & light triple LED indicators, clear working/unlock/fault status

11. Standalone/Wiegand dual mode, for single door use or external access system, flexible adaptation

12. One-click factory reset, retain user data, quick reset for operation errors

Authentication

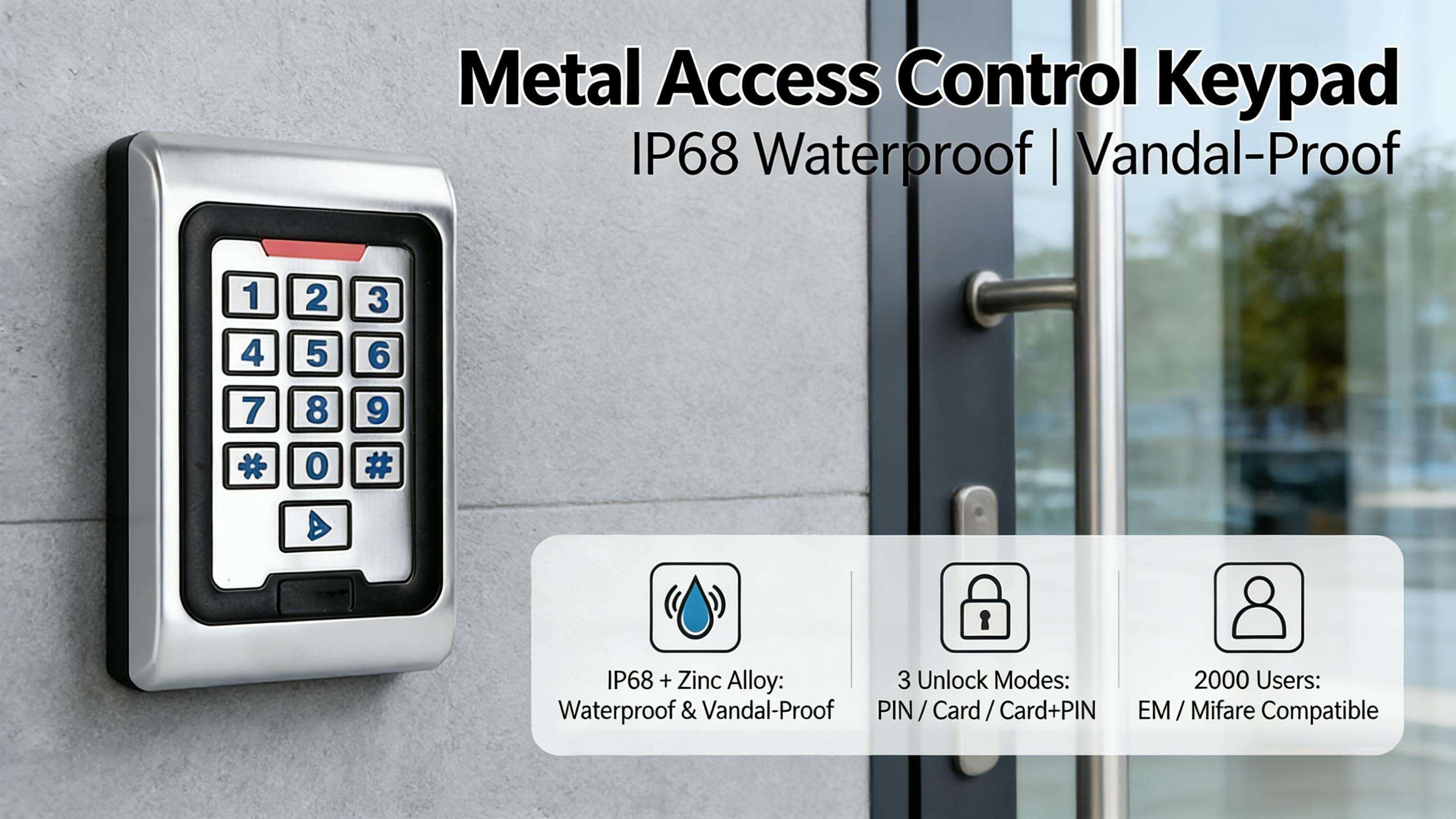

Metal Access Control Keypad Real Shot - Wiring Guide + PIN/Card Unlock Magnetic Lock Full Process

Complete practical demonstration of this zinc alloy IP68 waterproof access control keypad is here! The video shows two real-scene steps: ① Wiring Guide: Clearly mark the corresponding functions of each color wiring port, demonstrate the wiring steps with magnetic lock and power supply step by step, easy wiring with no difficulty; ② Unlock Operation: Demonstrate PIN input with # key and card swiping respectively, both can unlock the magnetic lock instantly, the access control responds quickly with no delay, and the sound and light prompt synchronously after unlocking with clear status! The device adopts a zinc alloy vandal-proof shell, IP68 waterproof, -45℃~60℃ wide temperature, supports PIN/card/card+PIN triple unlock, can store 2000 users, with Wiegand 26 output and short circuit protection. It is suitable for single door access control in shops/factories/residential communities indoors and outdoors, with convenient installation and wiring, safe and efficient unlocking!

Technical data

Operating Voltage	DC12-24V
User Capacity	2000
Card Reading Distance	3-6cm
Active Current	<60mA
Idle Current	25±5 mA
Lock Output Load	Max 1A
Operating Temperature	-45℃~60℃
Operating Humidity	10%-90% RH
Waterproof Degree	IP65/IP68
Adjustable Door Relay time	0-99 seconds
Wiegand Interface	Wiegand 26 bit
Wiring Connections	Electric Lock, Exit Button, External Alarm
