24.125GHz Microwave Motion Sensor for Automatic Sliding Doors | Adjustable Detection Range 4m × 2m | AC/DC 12-24V

This 24.125GHz Doppler microwave motion sensor is specially designed for automatic sliding doors and entrance control systems.

It supports AC/DC 12–24V wide voltage input and can be installed up to 4 meters high. The detection range reaches up to 4m × 2m (at 2.2m installation height).

With adjustable sensitivity and flexible angle positioning, the sensor provides stable and precise motion detection for commercial buildings, offices, hospitals, and retail environments.

Products
Technical Data
Downloads

Product description

· 24.125GHz Doppler Microwave Technology – Stable and accurate motion detection

· Wide Detection Area up to 4m × 2m – Suitable for various door widths

· AC/DC 12–24V Wide Voltage Input – Compatible with most automatic door controllers

· Installation Height up to 4m – Ideal for high entrance applications

· Adjustable Detection Angle (0–90° / ±30°) – Flexible front-back and lateral coverage

· Adjustable Sensitivity Knob – Easily adapt to different environments

· COM/NO Relay Output – Easy integration with automatic door systems

· 2-Second Hold Time – Smooth and stable door operation

· Durable ABS Housing – Strong and long service life

· Black or Silver Color Options – Match different door designs

Authentication

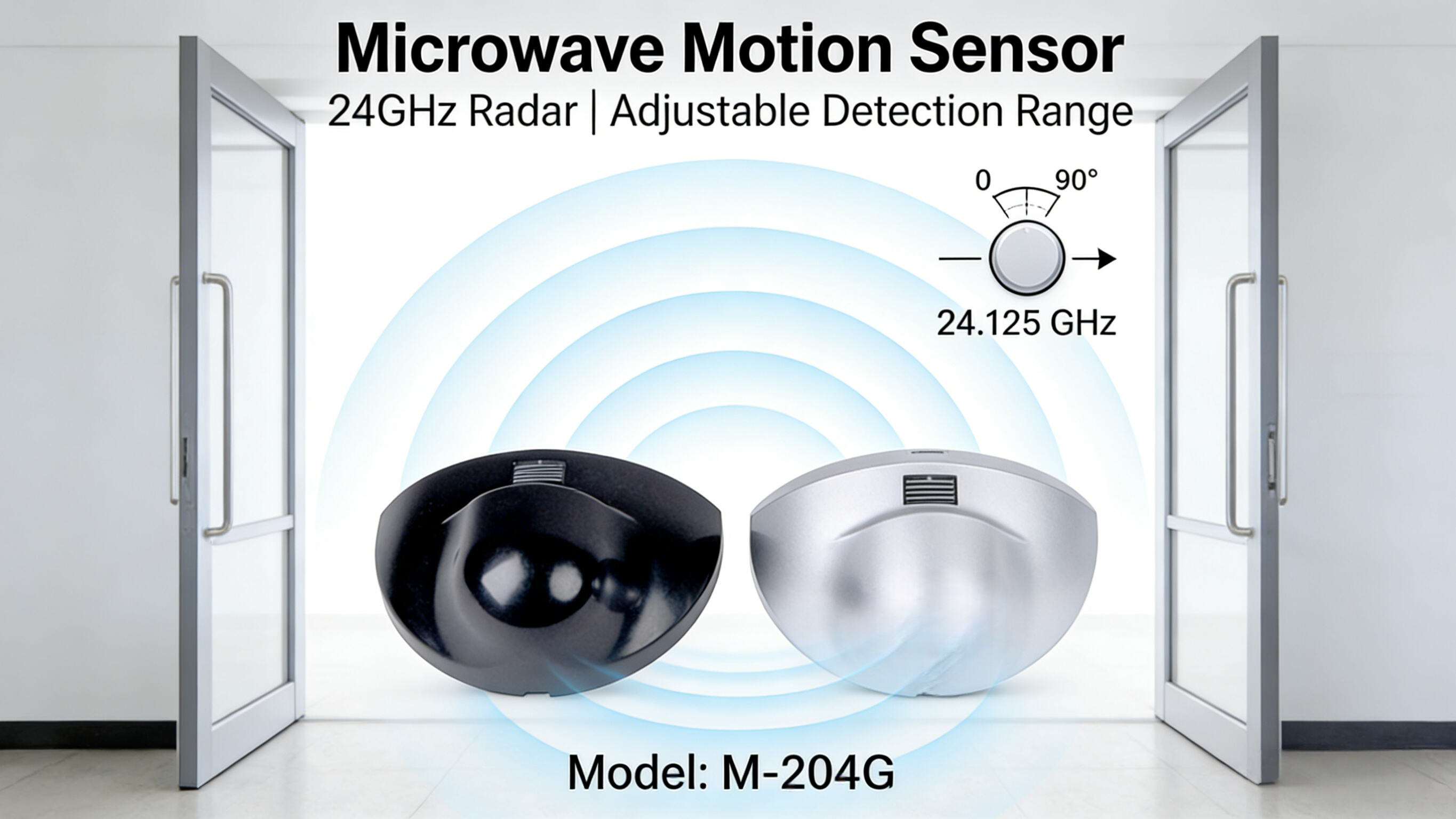

24.125GHz Microwave Motion Sensor for Automatic Sliding Door | Walk-Through Activation Demo

This video demonstrates the real application of our 24.125GHz microwave motion sensor installed on an automatic sliding door.

When a person approaches the entrance, the sensor detects motion and triggers the door to open smoothly and instantly.

✔ Stable microwave detection

✔ Wide detection range up to 4m × 2m

✔ Adjustable sensitivity and angle

✔ AC/DC 12–24V wide voltage input

✔ Ideal for commercial automatic doors

Perfect for shopping malls, office buildings, hospitals, and commercial entrances.

Technical data

Technology:	Microwaveµwave disposer
Frequency:	24.125GHz
Transmitting power:	<20dBm EIRP
Launch frequency density:	<5mW/cm2Installation Angle:0-90 degree(lengthways) -30 to +30(lateral)
Installation Height:	4 meters
Mindetectionspeed:	5cm/s
Detection Mode:	Motion
Detection range:	4m*2m(Installation Height 2.2M)
Power:	2W(VA)
Maximum Current:	1A
Maximum voltage:	42AC-60V DC
Retention time:	2S
Maximum switching power:	30W(DC)/60VA(AC)
Guide line:	2.5M
Working temperature:	-20°C to +55°C
Color:	Black/silver
Sheating material:	ABS plastic
Power Voltage :	12V to 24V Ac+10% (50Hz to 60Hz)Size:120mm(W)X80mm(H)x50mm(D)
