Indoor Automatic Swing Door Opener - Hidden Lintel Mount Auto Door Drive System

Product description

1.120kg heavy load capacity & 50Nm high torque, easily driving large-size indoor swing doors and adapting to a maximum door width of 1100mm.

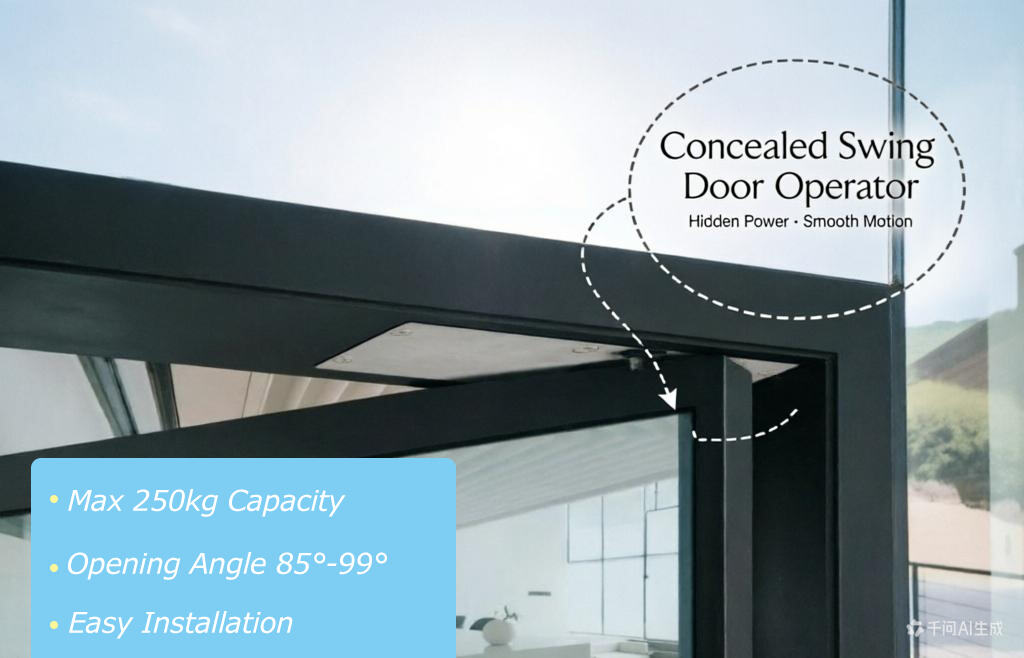

2.Hidden lintel-mounted installation, no slotting required, no damage to decoration styles, compatible with glass doors, wooden doors and other door types.

3.Ultra-quiet operation with noise <60dB, creating a quiet and comfortable indoor access environment for office and commercial scenarios.

4.Intelligent fault self-diagnosis system with precise E1-E4 error code display, quickly locating problems and reducing maintenance costs.

5.Multiple electrical protections, including overcurrent protection and chip communication fault prevention, avoiding equipment damage and electric shock risks.

6.Flexible remote control, supporting code learning/deletion, one-click opening and closing via the Auto button for convenient and efficient operation.

7.Electric lock linkage function with DC12V output, dockable with access control systems to improve the security level of indoor spaces.

8.Fully adjustable parameters, free setting of opening angle (85°-99°) and operating status to adapt to different scenario requirements.

9.Ultra-low standby power consumption <2W for energy saving, 60W single motor power for sufficient power and low energy consumption.

10.Stable operation in a wide temperature range of -20℃~55℃, adapting to different indoor environments with a long service life.

11.Modular structure design, independent assembly of motor, controller and drive components for easier installation and maintenance.
