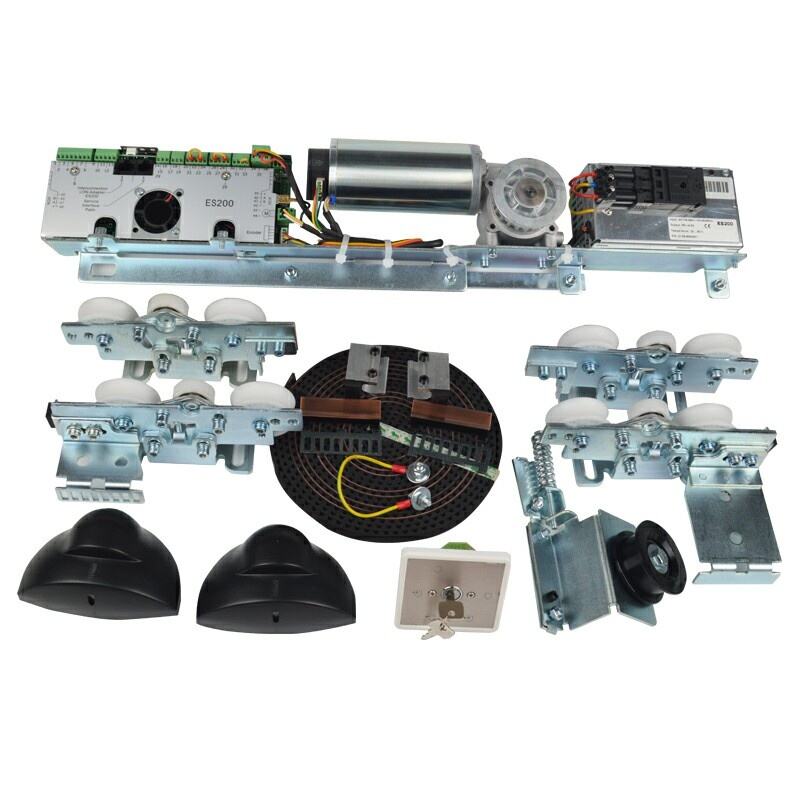

ES 200 adopts modular design, powerful functions, simple and flexible touse, and high cost performance, making it an ideal choice for users.
Motor comes from dunker GR63*55
It has the function of stopping at any position, you can use the remote control to make it stop and start at any position
Intelligent technology，Precise control，Sensitive operation
| Door Parameters | ES200 |
|
1 - panel sliding door - Transit width LW - Door panel weight |
700 - 3000 mm Max 200KG*1 |
|
2 - panel sliding door - Transit width LW - Door panel weight |
800 - 3000 mm Max 160KG*2 |
| Technical Parameter | |
| Height | 100 and 150mm |
| Depth | 180 mm |
| Opening and closing force | Max 150N |
| Opening speed (incremental setting) | 10 - 70 cm/s |
| Closing speed (incremental setting) | 10 - 50 cm/s |
| Hold - open time | 0 - 180sec |
| Mains voltage, frequency | 230V 50/60 Hz |
| Power consumption | 250 W |
| International protection | IP 20 |
| Tested according to low - voltage guidelines | ● |
| Control Module | |
| Microprocessor controller | ● |
| Functional programs - Off | ● |
| Functional programs - Automatic | ● |
| Functional programs - Permanent open | ● |
| Functional programs - Partial open | ● |
| Functional programs - Exit only | ● |
| Functional programs - Night - bank switch | ● |
| Emergency braking | ● |
| Self - learning | ● |
| Automatic return in case of resistance | ● |
| Connect electromechanical lock | ● |
| Connection for light barriers (max. 2 pairs) | ● |
| Setting of basic parameters via integrated display and push - buttons | ● |
| Emergency opening or closing (with use of battery pack) | ● |
| 24 V output for external consumption | ● |
| Read - out error store with error codes | ● |
