Microcomputer control system
Intelligent learning, automatic detection of door weight and width, automatic adjustment of operating status; multiple functions are available to meet the needs of different users; equipped with automatic anti-pinch return device to avoid accidental pinching of pedestrians.
Adopt DC servo motor with electric lock function. Precision manufacturing process and turbine transmission structure greatly improve dynamic torque and transmission efficiency. The motor adopts stepless speed change, stable operation and low noise.

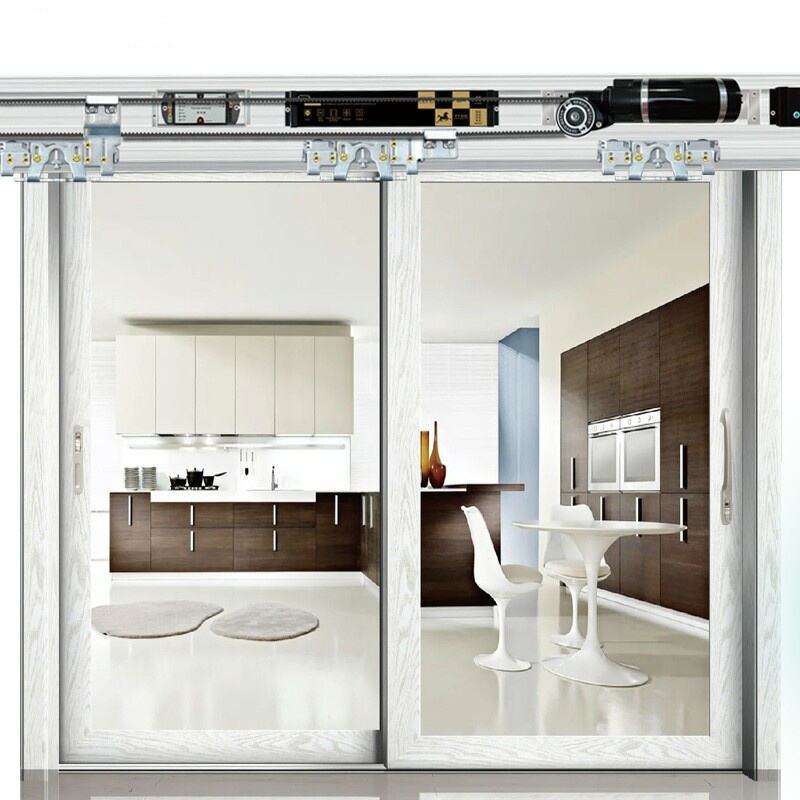

The automatic door adopts DC motor, which can generate the most suitable power with lowvoltage, and can be equipped with special emergency battery to open the door in case of powerfailure.The intelligent main controller has the function of rebound in case of resistance to preventpeople from clamping.After power on, the automatic door automatically learns the opening andclosing stroke and the weight of the door leaf, and operates at a suitable speed.Special nylon pulleyis used for the four-wheel hanger, which has super bearing capacity, good wear resistance andself lubrication, greatly reducing the running noise
| MODEL | SINGLE DOOR | DOUBLE DOOR |
| Door weight | 200KG*1 | 200KG*2 |
| Door width | Single:DW=600 - 1500mm | Double:DW=800 - 1300mm |
| Doorway width | Single:W=1400 - 4200mm | Double:W=2300 - 4200mm |
| Closing speed | 150 - 500mm/sec | |
| Opening speed | 300 - 700mm/sec | |
| Opening Time | Adjustable at 0.5s～49.5s, adjusting 1 equals to 0.5s, 100 refers to normally open and close | |
| Manual opening force | ≤5KG | |
| Power supply | AC170V - 264V 50/60HZ | |
| Controller | Microcomputer processing controller | |
| Motor | DC motor | |
| Use environment | TEMP：-20℃～+50℃ Humidity：30%～85%RH(No condensation & icing) | |
