ES 200 easy adopts modular design, powerful functions, simple and flexible touse, and high cost performance, making it an ideal choice for users.
Motor comes from dunker GR63*25
It has the function of stopping at any position, you can use the remote control to make it stop and start at any position
Intelligent technology，Precise control，Sensitive operation

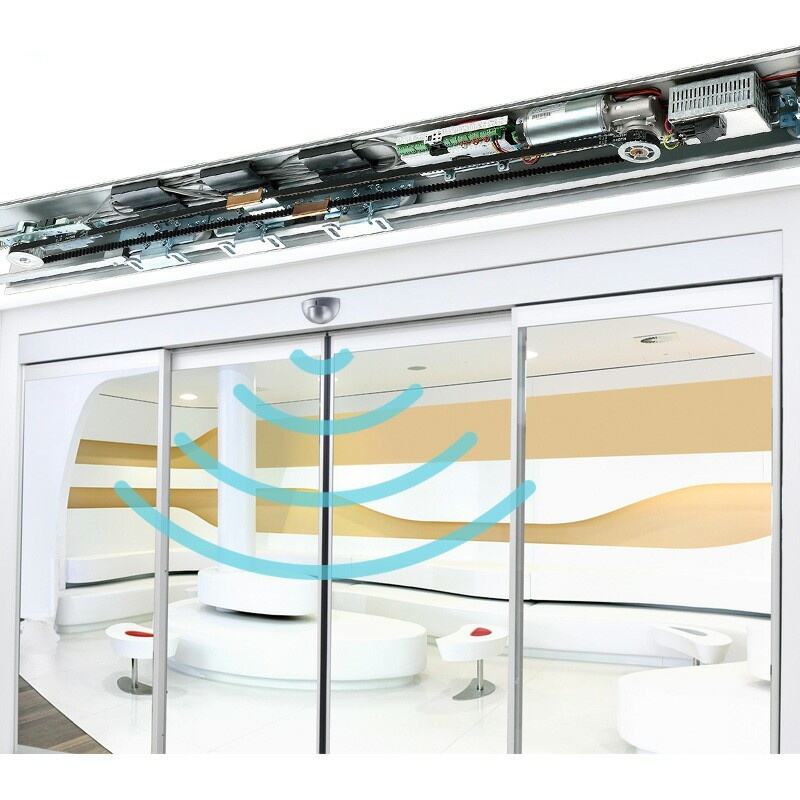

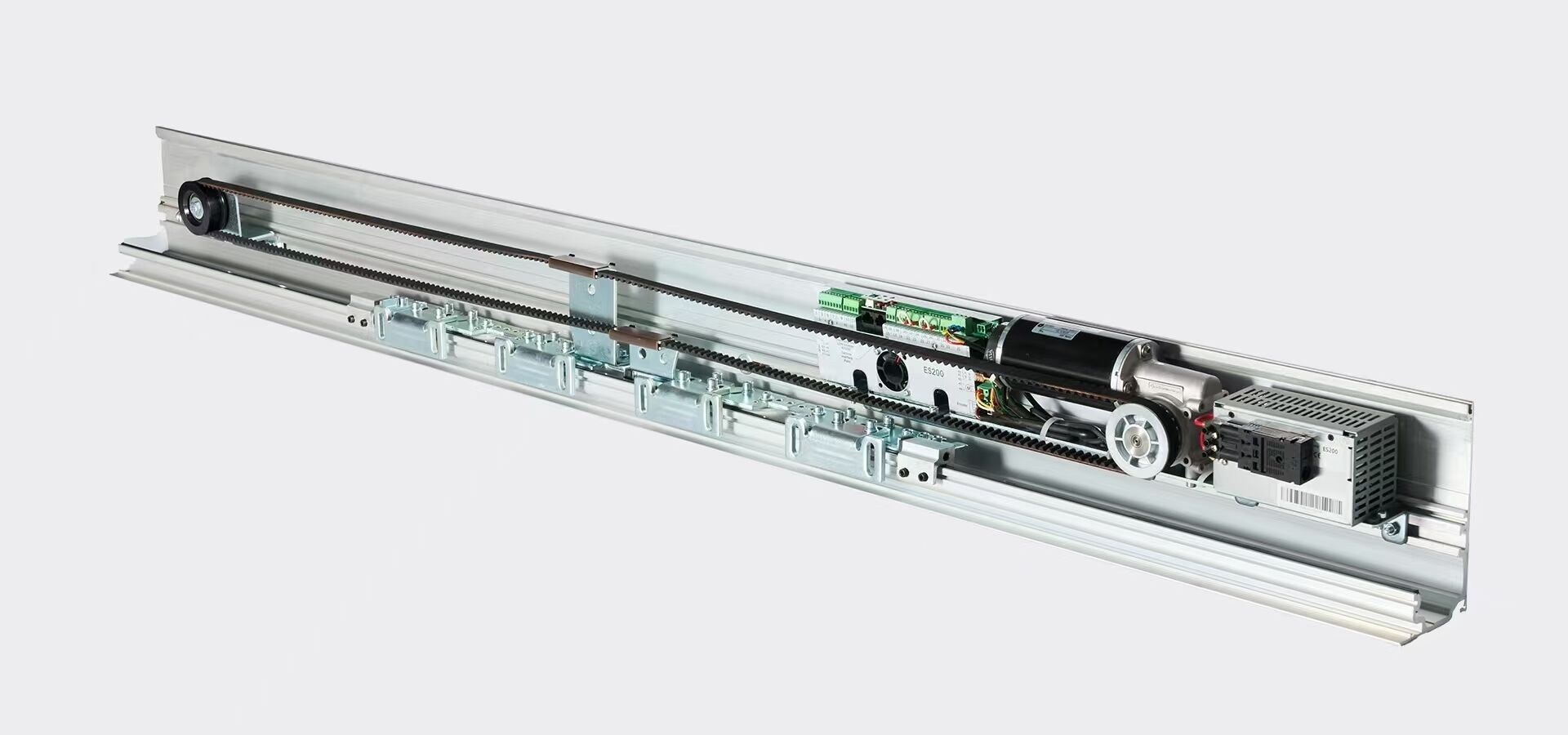

It is the innovative drive system for door units up to 2 x 100 kg, is of modular construction with world-wide tried and trusted electronics and new mechanics comprising only a few components and can be used for both 100 and 150 mm height.
The microcomputer control unit has a self-learning function, and the drive device runs smoothly, safe and reliable; it has complete functions to meet individual needs
| Door Parameters | ES200 EASY |
|
1 - panel sliding door - Transit width LW |
700 - 3000 mm Max 120Kg*1 |
|
2 - panel sliding door - Transit width LW |
800 - 3000 mm Max 100KG*2 |
| Technical Parameter | |
| Height | 100 mm |
| Depth | 180 mm |
| Opening and closing force | Max 150N |
| Opening speed (incremental setting) | 10 - 50 cm/s |
| Closing speed (incremental setting) | 10 - 40 cm/s |
| Hold - open time | 0.5 - 30sec |
| Mains voltage, frequency | 230 V, 50/60 Hz |
| Power consumption | 180 W |
| International protection | IP 20 |
| Tested according to low - voltage guidelines | ● |
